Crestron SAROS DM-NAX-IC4A PoE+ AoIP In-Ceiling Speaker

Crestron part number SAROS DM-NAX-IC4A-W

The Crestron SAROS DM-NAX-IC4A is an active in-ceiling speaker that takes its power and its audio from the network, using PoE+ and DM NAX audio-over-IP. A single 2.83 in. Balanced Mode Radiator gives wide coverage for speech and music, and the speaker can drive up to three SAROS IC4P-W satellites.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

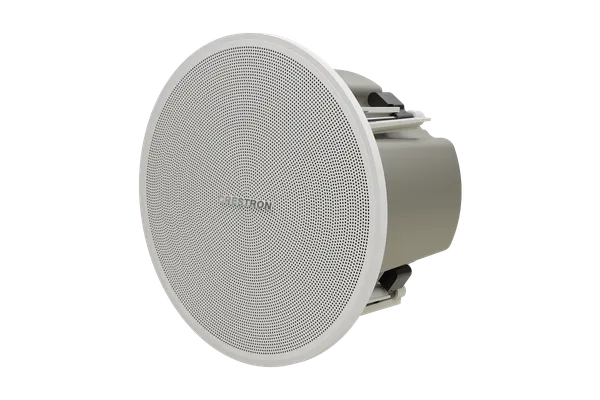

Crestron SAROS DM-NAX-IC4A Saros 3 in. Active Full-Range In-Ceiling PoE+ Speaker with DM NAX Audio-over-IP Support, White, Textured

About the Crestron SAROS DM-NAX-IC4A

The speaker connects directly to a managed network and can route audio to or from DM NAX audio-over-IP devices, DM NVX AV-over-IP devices and AES67 devices, and through AES67 it can also work with Dante audio networking devices. It is configured through a web UI, which also sets the LED behaviour, and a recessed SETUP button clears the network settings when held for 15 seconds with power applied.

A 2.83 in. (72 mm) Balanced Mode Radiator covers 80 Hz to 24 kHz (±3 dB), with 170° conical coverage for speech and 140° for music, up to 21 W of power output and a maximum SPL of 96 dB. Onboard EQ offers EQ, high pass, low pass, treble shelf, bass shelf and notch filters. Three RJ-45 speaker-level outputs can power up to three SAROS IC4P-W satellite speakers, sold separately.

Power comes from PoE+ (IEEE 802.3at Type 2 Class 4, 25.5 W) on the single 100BASE-TX/1000BASE-T network port. The plenum-rated painted steel back can has 0.75 in. (19 mm) conduit knockouts and a cable clamp, and the magnetic white textured steel grille has a safety tether. Four two-step toggle clamps grip ceilings up to 2.36 in. (60 mm) thick through a 6.5 in. (165 mm) recommended cutout, and a tile bridge is included.

Key features

Audio-over-IP in-ceiling speaker with DM NAX support
Routes audio to or from DM NAX, DM NVX and AES67 devices
Works with Dante devices through AES67 compatibility
Powered by PoE+ (IEEE 802.3at Type 2 Class 4)
2.83 in. (72 mm) Balanced Mode Radiator, 80 Hz to 24 kHz
170° coverage for speech, 140° for music
Drives up to three SAROS IC4P-W satellite speakers (sold separately)
Toggle clamp mounting with tile bridge included

SAROS DM-NAX-IC4A specifications

Transducer	2.83 in. (72 mm) Balanced Mode Radiator (BMR)
Frequency response	80 Hz to 24 kHz (±3 dB)
Output and SPL	Up to 21 W; 25 W BMR power handling; 86 dB @ -18 dBFS/1 m; 96 dB maximum SPL
Coverage	170° conical (speech, up to 4 kHz); 140° conical (music, up to 8 kHz)
Network	1 RJ-45, 100BASE-TX/1000BASE-T; DM NAX, DM NVX and AES67 audio
Satellite outputs	3 RJ-45 speaker-level outputs, for SAROS IC4P-W only
EQ	EQ, high pass, low pass, treble shelf, bass shelf, notch; 10 to 20,000 Hz; +20/-40 dB; 0.1 to 4.0 octaves per band
Power	PoE+ IEEE 802.3at Type 2 Class 4 (25.5 W)
Construction	Plenum-rated painted steel enclosure with 0.75 in. (19 mm) conduit knockouts; ABS UL 94V-0 baffle; magnetic steel grille with safety tether
Mounting and size	4 two-step toggle clamps, up to 2.36 in. (60 mm) ceiling thickness; 6.5 in. (165 mm) cutout; 7.49 in. (191 mm) baffle; 4.28 in. (109 mm) mounting depth

Part numbers on this page

Part number	Version	Price	Add
SAROS DM-NAX-IC4A-W	White textured	On request

Where the SAROS DM-NAX-IC4A is used

Commercial spaces using DM NAX audio-over-IP
DM NVX AV-over-IP systems that need ceiling speakers
AES67 or Dante audio networks
Drop-tile ceilings, using the included tile bridge
Zones extended with up to three SAROS IC4P-W satellites

Works with the SAROS DM-NAX-IC4A

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron SAROS DM-NAX-IC4A

What is the Crestron SAROS DM-NAX-IC4A?

It is a Saros active in-ceiling speaker with a 2.83 in. Balanced Mode Radiator, powered by PoE+ and fed with audio over the network. It connects directly to a managed network to route audio to or from DM NAX, DM NVX and AES67 devices, and it can drive up to three SAROS IC4P-W satellites.

Does the SAROS DM-NAX-IC4A work with Dante?

Crestron states that it is interoperable with Dante audio networking devices through AES67 compatibility. It also connects directly to a managed network to route audio to or from DM NAX audio-over-IP, DM NVX AV-over-IP and AES67 devices, and it is configured through a web UI.

How is the SAROS DM-NAX-IC4A powered?

It is a PoE+ powered device to IEEE 802.3at Type 2 Class 4 (25.5 W), so power and network audio share one cable to its single RJ-45 port, which runs at 100BASE-TX or 1000BASE-T. Plan for a network port that can supply PoE+ Class 4 power.

How many satellite speakers can it power?

Up to three SAROS IC4P-W passive speakers, which are sold separately. They connect to the three RJ-45 speaker-level outputs, and these outputs are for use with the SAROS IC4P-W only. When paired, the satellite's LED behaviour is set through this speaker's web UI.

How does it mount in the ceiling?

It uses four integral two-step toggle clamps for a flush ceiling mount, gripping ceilings up to 2.36 in. (60 mm) thick, with a recommended cutout of 6.5 in. (165 mm). A tile bridge is included for drop-tile ceilings, and the mounting depth is 4.28 in. (109 mm).

How much is the Crestron SAROS DM-NAX-IC4A?

Crestron asks its dealers to give the price of the SAROS DM-NAX-IC4A directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the SAROS DM-NAX-IC4A?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the SAROS DM-NAX-IC4A on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the SAROS DM-NAX-IC4A come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the SAROS DM-NAX-IC4A develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the SAROS DM-NAX-IC4A in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the SAROS DM-NAX-IC4A without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
