Crestron SAROS IC4P 3 in. Passive In-Ceiling Speaker

Crestron part number SAROS IC4P-W

The Crestron SAROS IC4P is a 3 in. passive full-range in-ceiling speaker using a Balanced Mode Radiator transducer for broad coverage. It can run as a satellite from a SAROS DM-NAX-IC4A-W network speaker through an RJ-45 connection, or from an external amplifier through its terminal block input.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

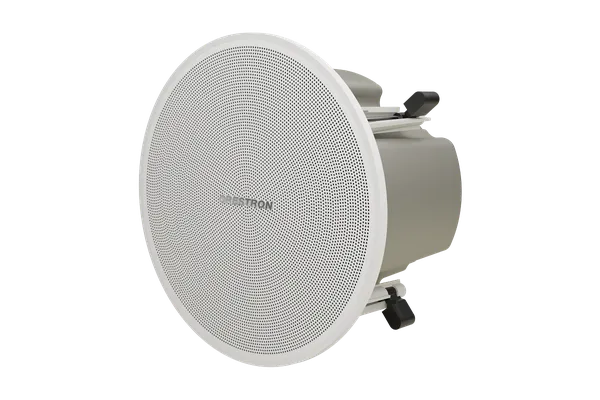

Crestron SAROS IC4P Saros 3 in. Passive Full-Range In-Ceiling Speaker, White, Textured

About the Crestron SAROS IC4P

A single 2.83 in. (72 mm) BMR transducer covers the full 90 Hz to 30 kHz (±3 dB) range, which Crestron says gives wider coverage angles than a traditional conical woofer with a concentric tweeter. Coverage is 170° conical for speech and 140° for music, and sensitivity is 86 dB at 1 W/1 m. Power handling for the BMR is 25 W.

There are two ways to drive it. The RJ-45 audio input is for use with the SAROS DM-NAX-IC4A-W only, which can power up to three of these speakers from its speaker-level outputs, and the IC4P's white LED behaviour is then set in that speaker's web UI. Alternatively, a 2-pin 5 mm terminal block accepts the speaker output of an external amplifier, at 8 Ohms (7.4 Ohms nominal), with a maximum power output of 25 W.

The plenum-rated painted steel enclosure has 0.75 in. (19 mm) conduit knockouts and a cable clamp. Four two-step toggle clamps hold it in ceilings up to 2.36 in. (60 mm) thick through a 6.5 in. (165 mm) recommended cutout, and a tile bridge is included for drop-tile ceilings. The magnetic grille has a white textured finish and a safety tether, and the speaker weighs 2.35 lb (1.06 kg).

Key features

2.83 in. (72 mm) Balanced Mode Radiator transducer
90 Hz to 30 kHz (±3 dB) frequency response
170° coverage for speech, 140° for music
RJ-45 input for use as a SAROS DM-NAX-IC4A-W satellite
2-pin terminal block input for an external amplifier
Two-step toggle clamps and included tile bridge
Plenum-rated steel enclosure with magnetic grille and safety tether

SAROS IC4P specifications

Transducer	2.83 in. (72 mm) Balanced Mode Radiator (BMR)
Frequency response	90 Hz to 30 kHz (±3 dB)
Sensitivity	86 dB @ 1 W/1 m
Coverage	170° conical (speech, up to 4 kHz); 140° conical (music, up to 8 kHz)
Power	25 W BMR power handling; 25 W maximum power output when driven by an external amplifier via the 2-pin input
Inputs	RJ-45 audio input (SAROS DM-NAX-IC4A-W only); 2-pin 5 mm terminal block for an external amplifier, 8 Ohms (7.4 Ohms nominal)
Construction	Plenum-rated painted steel enclosure, 0.75 in. (19 mm) conduit knockouts, cable clamp; ABS UL 94V-0 baffle; magnetic white textured steel grille, safety tether
Mounting	Flush ceiling mount, 4 two-step toggle clamps; up to 2.36 in. (60 mm) ceiling thickness; 6.5 in. (165 mm) cutout; tile bridge included
Dimensions	Baffle 7.49 in. (191 mm); back can 6.33 in. (161 mm); depth 4.28 in. (109 mm), 4.50 in. (115 mm) with grille
Weight and environment	2.35 lb (1.06 kg); 32° to 104°F (0° to 40°C); 10% to 90% RH non-condensing

Part numbers on this page

Part number	Version	Price	Add
SAROS IC4P-W	White textured	On request

Where the SAROS IC4P is used

Satellite speakers for a SAROS DM-NAX-IC4A-W zone
Ceiling speakers driven by an external amplifier
Drop-tile ceilings, using the included tile bridge
Spaces that need wide speech coverage from the ceiling

Works with the SAROS IC4P

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron SAROS IC4P

What is the Crestron SAROS IC4P?

It is a 3 in. passive full-range in-ceiling speaker from the Saros range. A single 2.83 in. Balanced Mode Radiator covers 90 Hz to 30 kHz, with 170° coverage for speech and 140° for music. It can be driven by a SAROS DM-NAX-IC4A-W or by an external amplifier.

How does the SAROS IC4P connect to a SAROS DM-NAX-IC4A-W?

It uses its RJ-45 audio input, which is for use with the SAROS DM-NAX-IC4A-W only. The DM-NAX-IC4A-W has three RJ-45 speaker-level outputs and can power up to three IC4P-W speakers. When paired, the IC4P's white LED behaviour is set through the DM-NAX-IC4A-W web UI.

Can the SAROS IC4P be used with a normal amplifier?

Yes. A 2-pin 5 mm detachable terminal block provides an alternate speaker input for an external amplifier, with an impedance of 8 Ohms (7.4 Ohms nominal). Connected this way, the maximum power output of the Balanced Mode Radiator is 25 W.

What is a Balanced Mode Radiator?

It is the type of transducer used in this speaker. A single 2.83 in. (72 mm) BMR drives the entire 90 Hz to 30 kHz range, and Crestron says it gives coverage angles beyond those of a traditional conical woofer with a concentric tweeter, with enhanced clarity and wider dispersion.

How does it mount?

It is a flush ceiling mount using four integral two-step toggle clamps, for ceilings up to 2.36 in. (60 mm) thick, with a recommended cutout of 6.5 in. (165 mm). A tile bridge is included for drop-tile ceilings. Mounting depth is 4.28 in. (109 mm).

How much is the Crestron SAROS IC4P?

Crestron asks its dealers to give the price of the SAROS IC4P directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the SAROS IC4P?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the SAROS IC4P on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the SAROS IC4P come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the SAROS IC4P develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the SAROS IC4P in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the SAROS IC4P without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
