Crestron MP-WP152 HDMI Wall Plate, 4K60 4:2:0, 1-Gang

Crestron part number MP-WP152-B

The Crestron MP-WP152 is a single-gang Media Presentation wall plate with one gold-plated Type A HDMI connector, usable as an HDMI input or output point. It carries HD and UHD video up to 4K60 4:2:0 and 4K30 4:4:4, along with 7.1 digital surround sound.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

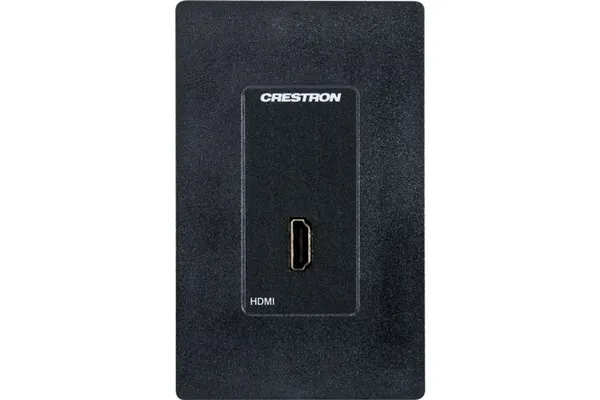

Crestron MP-WP152 Media Presentation Wall Plate, HDMI

About the Crestron MP-WP152

The HDMI connector is a bulkhead feed-through type, so the rear of the plate presents a female HDMI connection. This lets a standard HDMI cable link the plate to the rest of the system. The plate supports 10.2 Gbps TMDS bandwidth, HD and UHD video up to 4K60 4:2:0 and 4K30 4:4:4, and 7.1 digital surround sound audio.

It belongs to Crestron's Media Presentation range of wall plates for analogue and digital video, audio and control signals. The plate mounts in a 1-gang electrical box and can be ganged with other plates for custom wall, lectern and rack mount layouts. A decorator-style faceplate is available separately. This page covers the black MP-WP152-B and the white MP-WP152-W.

When replacing an HDMI wall plate, bear in mind the video limits: 4K60 is supported at 4:2:0, and 4:4:4 is supported at up to 4K30. Check the source and display settings if a room relies on higher formats. Match the colour to the existing plates by choosing the B or W part number.

Key features

One gold-plated Type A HDMI connector
Works as an HDMI input or output point
Supports 4K60 4:2:0 and 4K30 4:4:4 video
10.2 Gbps TMDS bandwidth
7.1 digital surround sound audio
Female HDMI connection at the rear for a standard HDMI cable
1-gang electrical box mounting, gangable with other plates
Black or white; decorator-style faceplate available separately

MP-WP152 specifications

Connector	1 x HDMI Type A, gold-plated, bulkhead feed-through
Rear connection	Female HDMI, for a standard HDMI cable
Video	HD and UHD up to 4K60 4:2:0 and 4K30 4:4:4
Bandwidth	10.2 Gbps TMDS
Audio	Up to 7.1 digital surround sound
Use	HDMI input or output
Mounting	1-gang electrical box; gangable for custom wall, lectern and rack mount applications
Faceplate	Decorator-style faceplate available separately
Colours on this page	Black (MP-WP152-B), white (MP-WP152-W)

Part numbers on this page

Part number	Version	Price	Add
MP-WP152-B	Black	On request
MP-WP152-W	White	On request

Where the MP-WP152 is used

Meeting room HDMI connection points
HDMI inputs built into lecterns
HDMI outputs to displays or projectors
Rack panel HDMI connections
Replacing a damaged HDMI wall plate

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron MP-WP152

What is the Crestron MP-WP152?

It is a single-gang Media Presentation wall plate with one gold-plated Type A HDMI connector. It provides an HDMI input or output point for digital video and audio, supporting up to 4K60 4:2:0 and 4K30 4:4:4 video and 7.1 digital surround sound.

Does the MP-WP152 support 4K?

Yes, within set limits. It supports 4K60 video at 4:2:0 and 4K30 at 4:4:4, with 10.2 Gbps TMDS bandwidth. Crestron does not list 4K60 at 4:4:4 for this plate, so check the source and display settings in rooms that use it.

How is the cable connected at the back of the MP-WP152?

The MP-WP152 uses a bulkhead type feed-through connector, which gives a female HDMI connection at the rear of the plate. This means the plate can be connected into the system with a standard HDMI cable.

What is the difference between MP-WP152-B and MP-WP152-W?

They are the same HDMI wall plate in different colours: MP-WP152-B is black and MP-WP152-W is white. Choose the one that matches the other plates and faceplates in the room. A decorator-style faceplate is available separately.

How does the wall plate mount?

It mounts in a 1-gang electrical box and is gangable, so it can be combined with other plates for custom wall, lectern and rack mount applications. A decorator-style faceplate is sold separately to finish the plate.

How much is the Crestron MP-WP152?

Crestron asks its dealers to give the price of the MP-WP152 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the MP-WP152?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the MP-WP152 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the MP-WP152 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the MP-WP152 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the MP-WP152 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the MP-WP152 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.

Crestron MP-WP152 Media Presentation HDMI Wall Plate, 1-Gang
