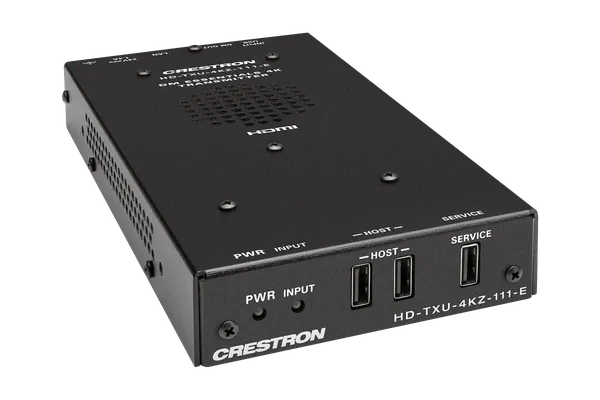

Crestron part number HD-TXU-4KZ-111-E
The Crestron HD-TXU-4KZ-111-E is a DM Essentials transmitter that takes a USB-C source with DisplayPort Alt Mode and sends its video, USB 2.0 data and an Ethernet connection over one CAT5e or higher cable. It pairs with an HD-RXU-4KZ Series receiver where the source sits some distance from the display.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron HD-TXU-4KZ-111
The HD-TXU-4KZ-111-E has one USB-C input that carries DisplayPort video and audio using DisplayPort Alt Mode, together with USB 2.0 data at up to 300 Mbps. It supports 4K60 4:4:4, HDR10, HDR10+ and Dolby Vision with HDCP 2.3, and CEC and EDID pass through. A LAN port passes 100/1000 Mbps Ethernet across the same DM Essentials link to the receiver.
It is designed to work with a DM Essentials HD-RXU-4KZ Series receiver, connected from the yellow DM OUT port over CAT5e or higher cable. Runs reach up to 40 m (130 ft) for UHD and 4K, or 70 m (230 ft) for 1080p, WUXGA and 2K. Two USB 2.0 Type-A host ports accept mice, keyboards and other USB 2.0 peripherals, and the SERVICE port can host one TT-100 series cable caddy (sold separately).
Power comes from the included PW-2420RU power pack through a 2.1 x 5.5 mm DC connector. The black metal chassis is vented on the top and sides and has two mounting brackets, so it can stand freely, be surface mounted or attach to a single rack rail. It measures 30 mm high, 106 mm wide and 202 mm deep. The part number supplied on this page is HD-TXU-4KZ-111-E.
Key features
- USB-C input with DisplayPort Alt Mode and USB 2.0 support
- Extends video, USB 2.0 data and Ethernet over one CAT5e or higher cable
- 4K60 4:4:4 with HDR10, HDR10+ and Dolby Vision
- HDCP 2.3, with CEC and EDID pass-through
- 100/1000 Mbps Ethernet pass-through
- Two USB 2.0 host ports for keyboards, mice and other peripherals
- Up to 40 m for UHD and 4K, or 70 m for 1080p, WUXGA and 2K
- PW-2420RU power pack included
HD-TXU-4KZ-111 specifications
| Video input | USB Type-C with DisplayPort Alt Mode; HDR10, HDR10+, Dolby Vision, Deep Color and 4K60 4:4:4 |
|---|---|
| Resolutions | 4096x2160 and 3840x2160 up to 60 Hz (4:4:4 8 bit or 4:2:2 12 bit at 60 Hz); 2560x1600 at 60 Hz; 1080p60 4:4:4 12 bit |
| Copy protection | HDCP 2.3 |
| USB | USB 2.0 up to 300 Mbps; 2 USB Type-A host ports; USB Type-A SERVICE port |
| Ethernet | RJ-45 LAN port, 100/1000 Mbps pass-through over the DM Essentials link |
| DM Essentials output | 8-pin RJ-45 (yellow, shielded) to an HD-RXU-4KZ Series receiver |
| Distance | Up to 40 m (130 ft) for UHD and 4K; up to 70 m (230 ft) for 1080p, WUXGA and 2K |
| Power | 24 VDC 1.4 A via 2.1 x 5.5 mm DC connector; PW-2420RU power pack included (100 to 240 VAC input) |
| Mounting | Freestanding, surface mount or single rack rail; black metal chassis, 2 mounting brackets included |
| Dimensions | Height 30 mm (1.20 in), width 106 mm (4.19 in), depth 202 mm (7.94 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| HD-TXU-4KZ-111-E | Standard | On request |
Where the HD-TXU-4KZ-111 is used
Works with the HD-TXU-4KZ-111
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron HD-TXU-4KZ-111
What is the Crestron HD-TXU-4KZ-111?
The HD-TXU-4KZ-111-E is a DM Essentials 4K60 4:4:4 transmitter with a USB-C input. It takes DisplayPort video and audio over USB-C, plus USB 2.0 data and an Ethernet connection, and extends them over one CAT5e or higher cable to a DM Essentials HD-RXU-4KZ Series receiver.
Which receiver does the HD-TXU-4KZ-111-E work with?
It is designed to work with a DM Essentials HD-RXU-4KZ Series receiver. The yellow DM OUT port connects to the receiver's DM Essentials input over CAT5e or higher twisted pair cable, for runs of up to 40 m (130 ft) at UHD and 4K, or 70 m (230 ft) at 1080p, WUXGA and 2K.
What USB connections does the HD-TXU-4KZ-111-E have?
USB 2.0 data at up to 300 Mbps travels with the video from the USB-C input over the DM Essentials link. Two USB 2.0 Type-A host ports accept mice, keyboards and other USB 2.0 peripherals, and the SERVICE port is used for firmware loading and configuration, or to host one TT-100 series cable caddy (sold separately).
Can it extend a network connection?
Yes. Its RJ-45 LAN port passes 100/1000 Mbps Ethernet over the DM Essentials connection to the HD-RXU-4KZ Series receiver. This means one CAT5e or higher cable carries the video, USB 2.0 data and the network connection between the two ends.
How is it powered and mounted?
It uses the included PW-2420RU power pack on a 24 VDC 2.1 x 5.5 mm input. The black metal chassis has two mounting brackets and can be freestanding, surface mounted or attached to a single rack rail. It measures 30 mm high, 106 mm wide and 202 mm deep.
How much is the Crestron HD-TXU-4KZ-111?
Crestron asks its dealers to give the price of the HD-TXU-4KZ-111 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the HD-TXU-4KZ-111?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-TXU-4KZ-111 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the HD-TXU-4KZ-111 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-TXU-4KZ-111 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the HD-TXU-4KZ-111 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the HD-TXU-4KZ-111 without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
