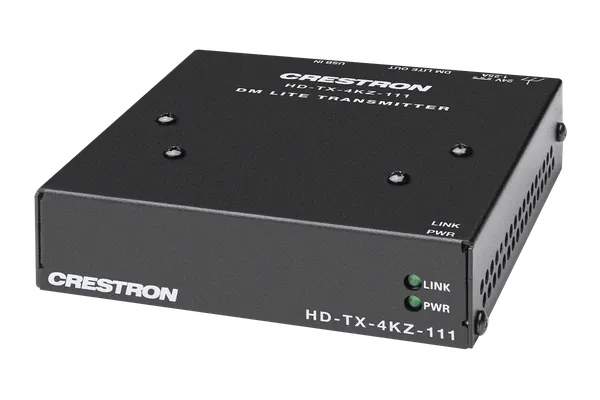

Crestron HD-TX-4KZ-111 4K60 USB-C DisplayPort Transmitter

It is a DM Essentials 4K60 4:4:4 transmitter with a USB-C input. It takes a DisplayPort signal using DisplayPort Alt Mode and extends it point to point over a CAT5e or higher cable to a compatible receiver or switcher, supporting HDR10, HDR10+, Dolby Vision and HDCP 2.3.

No. Its only video input is a USB-C connector that accepts DisplayPort Alt Mode signals. Transmitters in the same DM Essentials range with HDMI inputs include the HD-TX-4KZ-201, which has two HDMI inputs, and the HD-TX-4KZ-401, which has four.

Crestron describes it as working with a DM Essentials receiver or DMPS Essentials switcher, and its detailed specifications refer to these as DM Lite receivers and DMPS Lite switchers. The output port, labelled DM LITE OUT, is a yellow shielded RJ-45 connector.

Up to 40 m (130 ft) for UHD and 4K signals, or up to 70 m (230 ft) for 1080p, WUXGA and 2K signals, over a CAT5e or higher twisted pair cable. The transmitter is HDCP 2.3 compliant and passes EDID and CEC.

It can run from the included PW-2420RU power pack, which supplies 24 VDC, or take power from the remote DM Lite receiver or DMPS Lite switcher. The black metal chassis comes with two mounting brackets and can be freestanding, surface mounted or attached to a single rack rail.

Crestron asks its dealers to give the price of the HD-TX-4KZ-111 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-TX-4KZ-111 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-TX-4KZ-111 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
