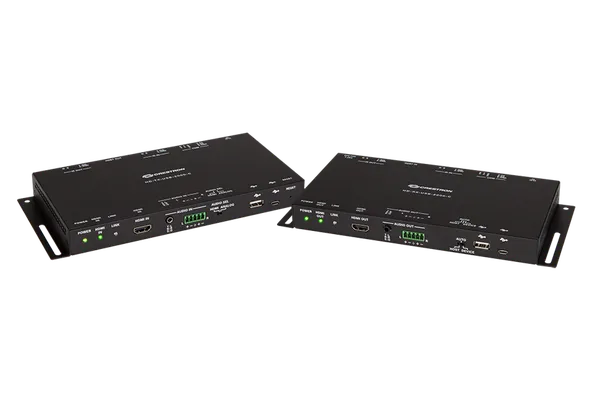

Crestron HD-EXT-USB-2000-C 4K HDMI and USB over HDBaseT Extender

It is a 4K HDMI and USB over HDBaseT extender made up of a compact transmitter and receiver. The pair carries HDMI, USB 2.0, RS-232, IR and Ethernet over a single CAT type cable, with analogue audio input and output also supported alongside the HDMI video.

Up to 100 m (330 ft), depending on the video resolution and the type of cable used. Crestron lists the full 100 m at 1080p60 on CAT5e or better, DM-CBL-8G and DM-CBL-ULTRA cable, with shorter maximum lengths at some higher resolutions. The CAT cable is not included.

No. It is not addressable from a control system and has no programmable functions. Ethernet, USB, CEC, IR and RS-232 signals are simply passed through between the transmitter and receiver, which makes it a straightforward point-to-point extender.

Crestron states that the transmitter (HD-TX-USB-2000-C) and receiver (HD-RX-USB-2000-C) are intended to be used together and are not intended to be interfaced with other HDBaseT equipment. Plan on using the two units as a matched set.

Video up to 4K60 4:2:0 and 4K30 4:4:4 is supported, along with 3D and Deep Color. Audio formats include Dolby TrueHD, Dolby Atmos, DTS-HD and uncompressed 7.1 linear PCM, and there are balanced and unbalanced stereo analogue inputs and outputs for embedding or de-embedding audio.

Crestron's advertised price for the HD-EXT-USB-2000-C in Ireland is €671 plus VAT, which is €825.33 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the HD-EXT-USB-2000-C on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the HD-EXT-USB-2000-C develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
