Crestron DM-RMC-4KZ-100-C 4K60 4:4:4 HDR DM 8G+ Receiver

Crestron part number DM-RMC-4KZ-100-C

The Crestron DM-RMC-4KZ-100-C is a DigitalMedia 8G+ receiver and room controller that feeds one display with up to 4K60 4:4:4 and HDR10 video over a single CATx cable from a DM switcher or transmitter. It provides an HDMI output plus Ethernet, RS-232 and IR ports for controlling the display.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

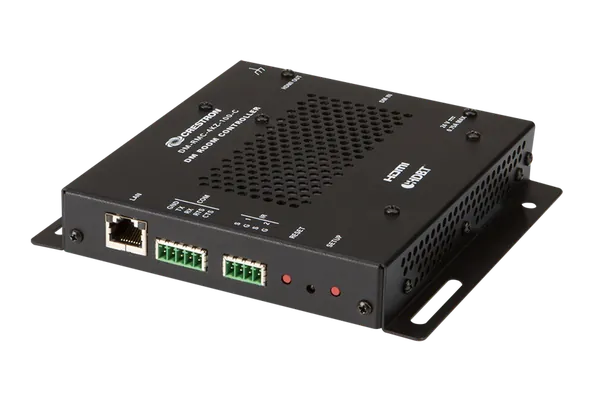

Crestron DM-RMC-4KZ-100-C DigitalMedia 8G+ 4K60 4:4:4 HDR Receiver & Room Controller 100

About the Crestron DM-RMC-4KZ-100-C

DM 4KZ endpoints such as the DM-RMC-4KZ-100-C let new and existing DigitalMedia systems handle full 4K60 4:4:4 and HDR10 signals. To carry signals beyond 4K30 4:4:4 and 4K60 4:2:0, DM 4KZ uses VESA Display Stream Compression (DSC), a line-based 2:1 compression standard that is visually lossless for 4K60 4:4:4 and HDR. The HDMI output (DVI compatible) also carries 3D and Deep Color, with HDCP 2.2, EDID and CEC.

It connects to the DM 8G+ output of a DM switcher or transmitter and is HDBaseT compatible, so it can also link directly to HDBaseT certified equipment. Runs of up to 100 m are supported for all resolutions up to UHD and 4K on DM Ultra cable. Audio formats include Dolby TrueHD, Dolby Atmos, DTS HD, DTS:X and uncompressed 7.1 linear PCM.

Control ports include a 10/100 Ethernet LAN port, a bidirectional RS-232 port on a 5-pin terminal block with hardware and software handshaking, and two IR/serial ports on a 4-pin terminal block. Power comes over the DM or HDBaseT link (IEEE 802.3at Type 1 Class 0) or from the optional PW-2407WU power pack. The black metal chassis has two mounting flanges for freestanding, surface or single rack rail mounting, and is 155 mm high, 143 mm wide and 28 mm deep.

Key features

DM 8G+ receiver and display controller
Up to 4K60 4:4:4 with HDR10, 3D and Deep Color
HDBaseT compatible for direct connection to HDBaseT equipment
One HDMI or DVI display output
Dolby TrueHD, Dolby Atmos, DTS HD, DTS:X and 7.1 linear PCM audio
Ethernet, RS-232 and two IR/serial control ports
Up to 100 m on DM Ultra cable for all resolutions up to 4K
Powered over DM or HDBaseT, or by the PW-2407WU (sold separately)

DM-RMC-4KZ-100-C specifications

Input	DM 8G+ and HDBaseT with HDR10, Deep Color, 3D and 4K60 4:4:4 (RJ-45, PoDM powered device port)
Output	1 HDMI with HDR10, Deep Color, 3D and 4K60 4:4:4 (DVI compatible); HDCP 2.2, EDID, CEC
Maximum resolutions	4096x2160 and 3840x2160 at 30 Hz 4:4:4 (36 bit) and 60 Hz 4:4:4 (24 bit); 2560x1600 at 60 Hz; 1080p60 4:4:4
Cable length	Up to 100 m (330 ft) for all resolutions up to UHD and 4K on DM Ultra cable
Audio	HDMI output; Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS, DTS HD, DTS:X, uncompressed 7.1 linear PCM
Control	LAN 10/100 Mbps; RS-232 2-way up to 115.2k baud; 2 IR/serial ports, IR up to 1.1 MHz or serial up to 19.2k baud
Power	PoDM or HDBaseT PoE (IEEE 802.3at Type 1 Class 0, 12.95 W), or PW-2407WU 24 VDC power pack (sold separately)
Mounting	Freestanding, surface mount or single rack rail; black metal chassis with 2 integral mounting flanges
Dimensions	Height 155 mm (6.09 in), width 143 mm (5.63 in), depth 28 mm (1.08 in)

Part numbers on this page

Part number	Version	Price	Add
DM-RMC-4KZ-100-C	Standard	On request

Where the DM-RMC-4KZ-100-C is used

Displays fed 4K60 4:4:4 HDR content from a DM switcher
Bringing existing DigitalMedia systems up to 4K60 4:4:4 and HDR
Meeting rooms controlling a display over RS-232, IR or Ethernet
Rooms mixing DigitalMedia and HDBaseT equipment

Works with the DM-RMC-4KZ-100-C

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-RMC-4KZ-100-C

What is the Crestron DM-RMC-4KZ-100-C?

It is a DigitalMedia 8G+ receiver and room controller for a single display. It receives up to 4K60 4:4:4 and HDR10 video from a DM switcher or transmitter over one CATx cable, outputs it on HDMI, and provides Ethernet, RS-232 and IR ports for control.

What does 4KZ mean on the DM-RMC-4KZ-100-C?

DM 4KZ endpoints and cards let new and existing DigitalMedia systems carry full 4K60 4:4:4 and HDR10 video. To handle bandwidth beyond 4K30 4:4:4 and 4K60 4:2:0, they use VESA Display Stream Compression, a line-based 2:1 standard that gives visually lossless results for 4K60 4:4:4 and HDR.

How is the DM-RMC-4KZ-100-C powered?

It can be powered over the DM link by a PoDM power sourcing device or over HDBaseT PoE, both IEEE 802.3at Type 1 Class 0 (12.95 W). It also has a 24 VDC input for the PW-2407WU power pack, which is optional and sold separately.

What control ports does it have?

There is a 10/100 Mbps Ethernet LAN port, a bidirectional RS-232 port on a 5-pin 3.5 mm terminal block supporting up to 115.2k baud with hardware and software handshaking, and a 4-pin terminal block with two IR/serial ports for IR up to 1.1 MHz or 1-way serial up to 19.2k baud.

Can the DM-RMC-4KZ-100-C connect to HDBaseT equipment?

Yes. It is HDBaseT compatible and its DM input is HDBaseT compliant, so it can connect directly to other HDBaseT certified equipment as well as to the DM 8G+ output of a DM switcher or transmitter. Over HDBaseT it supports HDCP 2.2, EDID, CEC, RS-232, PoE and Ethernet.

How much is the Crestron DM-RMC-4KZ-100-C?

Crestron asks its dealers to give the price of the DM-RMC-4KZ-100-C directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-RMC-4KZ-100-C?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-RMC-4KZ-100-C on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-RMC-4KZ-100-C come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-RMC-4KZ-100-C develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-RMC-4KZ-100-C in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-RMC-4KZ-100-C without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
