Crestron DM-NAX-POD-MIC PoE Table Microphone Pod

Crestron part number DM-NAX-POD-MIC

The Crestron DM-NAX-POD-MIC is a tabletop microphone pod with a 12-element array microphone, built for DM NAX Intelligent Audio conferencing. It connects over the network to a DM-NAX-AP-100 Intelligent Audio processor (sold separately), which passes audio to a BYOM computer over USB-C, and it is powered over Ethernet.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

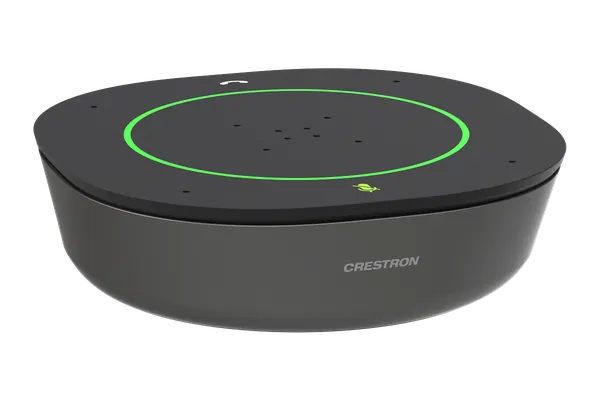

Crestron DM-NAX-POD-MIC PoE Microphone Pod with support for DM NAX Intelligent Audio

About the Crestron DM-NAX-POD-MIC

The pod's 360 degree, 12-element array microphone has a pickup radius of 2.3 m (7.5 ft) and suits small to large rooms. Built-in automatic gain control and automixing balance each microphone in the array for even signal levels while reducing extraneous noise, and dynamic noise suppression is included. Audio is full-duplex and compliant with IEEE 1329 Type 1.

The pod connects to a dedicated audio-over-IP network, where it pairs with a DM-NAX-AP-100 Intelligent Audio processor and other microphone or speaker pods. The processor handles the connection to a BYOM computer over USB-C. On the pod, a capacitive, backlit mute button with a red and green LED shows mute status, and an LED ring on top shows pairing, updating and error conditions.

It is powered by PoE (IEEE 802.3af Class 0) through a single RJ-45 port. The pod is for tabletop use only, with a black textured plastic housing, perforated stainless steel grilles and a die-cast aluminium bottom cover, and measures 33 mm high, 120 mm wide and 120 mm deep. Holding the reset button for 15 seconds clears the network settings.

Key features

360 degree, 12-element array microphone
2.3 m (7.5 ft) pickup radius
Automatic gain control, automixing and noise suppression
Pairs with the DM-NAX-AP-100 Intelligent Audio processor
Capacitive, backlit mic mute button
LED status ring for pairing, updates and errors
PoE powered (IEEE 802.3af Class 0)
Tabletop design with stainless steel grilles

DM-NAX-POD-MIC specifications

Microphone	360 degree 12-element array; pickup radius 2.3 m (7.5 ft)
DSP	Automatic gain control, automixing, dynamic noise suppression; full-duplex, IEEE 1329 Type 1 compliant
System	Pairs with DM-NAX-AP-100 Intelligent Audio processor (sold separately) over DM NAX audio-over-IP
Network	1 x RJ-45, 100BASE-TX/1000BASE-T, PoE powered device port
Power	PoE, IEEE 802.3af Class 0 (12.95 W)
Controls and indicators	Capacitive backlit mic mute button with red/green LED; multicolour LED status ring; reset button
Construction	Black textured plastic housing, perforated stainless steel grilles, die-cast aluminium bottom cover
Mounting	Tabletop only
Dimensions	Height 33 mm (1.3 in), width 120 mm (4.70 in), depth 120 mm (4.70 in)
Operating environment	5 to 40°C (41 to 104°F); 10% to 95% RH non-condensing

Part numbers on this page

Part number	Version	Price	Add
DM-NAX-POD-MIC	Standard	On request

Where the DM-NAX-POD-MIC is used

Small to large conference rooms
BYOM meeting rooms
Adding microphone coverage to a DM NAX Intelligent Audio system
Unified communications and commercial audio

Works with the DM-NAX-POD-MIC

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DM-NAX-POD-MIC

What is the Crestron DM-NAX-POD-MIC?

It is a PoE tabletop microphone pod for DM NAX Intelligent Audio conferencing. It has a 360 degree, 12-element array microphone with a 2.3 m pickup radius, and it pairs over the network with a DM-NAX-AP-100 Intelligent Audio processor, which is sold separately.

Does the DM-NAX-POD-MIC need the DM-NAX-AP-100?

Yes. The pod connects to a dedicated audio-over-IP network to pair with a DM-NAX-AP-100 Intelligent Audio processor, which is sold separately. The processor sends and receives audio to a BYOM computer over USB-C, and it can also work with other microphone or speaker pods.

How is the DM-NAX-POD-MIC powered?

It is powered by PoE through its single RJ-45 port, compliant with IEEE 802.3af Class 0 (12.95 W), from an IEEE 802.3af compliant Ethernet switch or third-party PoE source. The same port carries control and audio-over-IP traffic at 100 or 1000 Mbps.

What controls does the pod have?

It has a capacitive, backlit mic mute button with a red and green LED that shows whether the microphone is muted. A multicolour LED ring on the top panel indicates status conditions such as pairing, updating or errors, and holding the reset button for 15 seconds clears the network settings.

Does the DM-NAX-POD-MIC have a speaker?

No. It is a microphone-only pod. Crestron offers the DM-NAX-POD-MIC-SPK as a tabletop pod that combines a 12-element array microphone with a built-in speaker, and both pair with the DM-NAX-AP-100 Intelligent Audio processor.

How much is the Crestron DM-NAX-POD-MIC?

Crestron asks its dealers to give the price of the DM-NAX-POD-MIC directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DM-NAX-POD-MIC?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NAX-POD-MIC on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DM-NAX-POD-MIC come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NAX-POD-MIC develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DM-NAX-POD-MIC in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DM-NAX-POD-MIC without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
