Crestron part number DM-NAX-AP-100

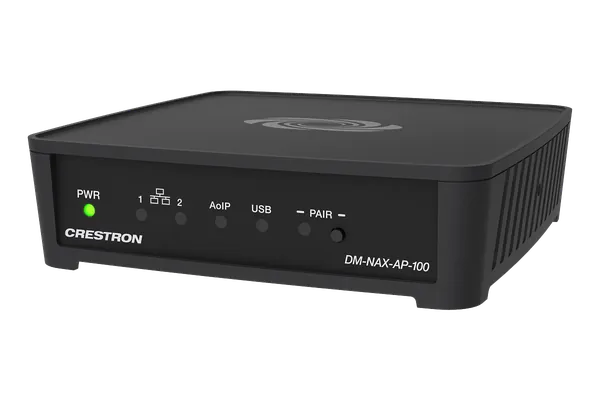

The Crestron DM-NAX-AP-100 is the Intelligent Audio processor at the centre of a DM NAX Intelligent Audio conferencing system. It mixes and processes audio from paired microphones and sends programme audio to paired speakers, and with compatible devices it works as a Microsoft Teams certified echo cancelling speakerphone over USB-C.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron DM-NAX-AP-100
The DM-NAX-AP-100 is designed to make conferencing setup straightforward. Its web interface handles most configuration tasks automatically, and it configures the settings on up to eight paired microphones and speakers. Built-in DSP provides acoustic echo cancellation, automatic gain control and dynamic noise suppression, and audio can be exchanged with DM NAX and AES67 audio-over-IP devices.
A USB-C port connects to the host computer as a USB Audio Class 2 device, carrying bidirectional stereo audio at up to 24-bit/48 kHz, and enumerates as a Crestron Echo-Canceling Speakerphone. There are two network ports: LAN 1 carries control traffic and PoE, and LAN 2 is dedicated to audio-over-IP, so AoIP traffic can be kept on a separate LAN.
Power comes from PoE (IEEE 802.3af Class 2) or from the optional PW-2407WU 24 VDC power pack, sold separately. The black textured plastic housing can be freestanding, stacked or surface mounted, and there is a wall or ceiling mounting option using a black plastic bracket. It measures 34 mm high (45 mm with the bracket), 128 mm wide (137 mm with the bracket) and 128 mm deep.
Key features
- Hub for DM NAX Intelligent Audio conferencing
- Microsoft Teams certified echo cancelling speakerphone with compatible devices
- Automatically configures up to eight paired microphones and speakers
- Acoustic echo cancellation, automatic gain control and noise suppression
- USB-C UAC2 connection to the host computer, up to 24-bit/48 kHz
- DM NAX and AES67 audio-over-IP
- Separate network port for audio-over-IP traffic
- PoE powered, or 24 VDC from the PW-2407WU (sold separately)
DM-NAX-AP-100 specifications
| Role | Intelligent Audio processor for DM NAX conferencing; up to 8 paired devices |
|---|---|
| DSP | Acoustic echo cancellation, automatic gain control, dynamic noise suppression |
| USB | USB-C, USB Audio Class 2, bidirectional stereo up to 24-bit/48 kHz; enumerates as Crestron Echo-Canceling Speakerphone |
| Audio over IP | DM NAX and AES67 input and output |
| Network | LAN 1: 100/1000 Ethernet for control traffic and PoE; LAN 2: 100/1000 Ethernet for audio-over-IP only |
| Power | PoE IEEE 802.3af Class 2 (5 W), or 24 VDC 0.75 A from PW-2407WU (sold separately) |
| Indicators and controls | PWR, LAN 1 and 2, AoIP, USB and PAIR LEDs; SETUP button |
| Housing and mounting | Black textured plastic; freestanding, stackable, surface mount; wall or ceiling option with black plastic bracket |
| Dimensions | Height 34 mm (1.35 in), 45 mm (1.77 in) with bracket; width 128 mm (5.04 in), 137 mm (5.36 in) with bracket; depth 128 mm (5.04 in) |
| Operating environment | 5 to 40°C (41 to 104°F); 10% to 95% RH non-condensing |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| DM-NAX-AP-100 | Standard | On request |
Where the DM-NAX-AP-100 is used
Works with the DM-NAX-AP-100
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron DM-NAX-AP-100
What is the Crestron DM-NAX-AP-100?
It is the DM NAX Intelligent Audio processor, the hub of a DM NAX Intelligent Audio conferencing system. It mixes and processes audio from paired microphones, distributes programme audio to paired speakers and connects to a host computer over USB-C, working as a Microsoft Teams certified echo cancelling speakerphone with compatible devices.
How many devices can the DM-NAX-AP-100 manage?
It automatically configures up to eight paired devices, such as microphones and speakers, and its web interface handles most configuration tasks automatically. Pairing progress is shown on the PAIR LED, and the LAN LEDs show when each network port has a link and is ready for pairing.
How does the DM-NAX-AP-100 connect to a computer?
It has a USB-C port that works as a USB Audio Class 2 (UAC2) device with bidirectional stereo audio at up to 24-bit/48 kHz. The computer sees it as a Crestron Echo-Canceling Speakerphone. Acoustic echo cancellation, automatic gain control and dynamic noise suppression are handled in the processor.
How is it powered?
It can be powered by PoE on its LAN 1 port, compliant with IEEE 802.3af Class 2 (5 W), or by the optional PW-2407WU power pack, which is sold separately and supplies 24 VDC at 0.75 A from a 100 to 240 VAC supply.
Why does it have two network ports?
LAN 1 is dedicated to control traffic and PoE, while LAN 2 is dedicated to audio-over-IP traffic only. This lets audio-over-IP traffic be isolated on a separate LAN from control traffic. Both ports are 100BASE-TX/1000BASE-T Ethernet.
How much is the Crestron DM-NAX-AP-100?
Crestron asks its dealers to give the price of the DM-NAX-AP-100 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the DM-NAX-AP-100?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DM-NAX-AP-100 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the DM-NAX-AP-100 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DM-NAX-AP-100 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the DM-NAX-AP-100 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the DM-NAX-AP-100 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
