Crestron DIN-1TSTAT8 8-Zone Radiant Heat Thermostat

Crestron part number DIN-1TSTAT8

The Crestron DIN-1TSTAT8 is an eight zone DIN rail thermostat for heat-only radiant systems using radiators or radiant floor heating. It switches a valve in each zone plus a main valve, reads a remote temperature sensor in every zone and connects to a Crestron control system over Cresnet.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

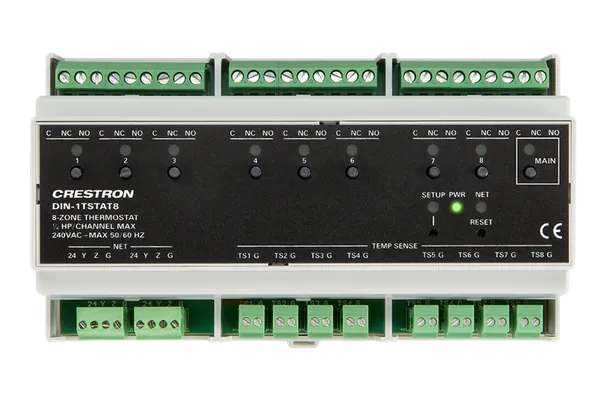

Crestron DIN-1TSTAT8 8-Zone Radiant Heat Thermostat, DIN Rail Mount

About the Crestron DIN-1TSTAT8

Each zone needs a remote temperature sensor, connected to the thermostat by a single twisted pair. Compatible sensors are the CHVI-RTS-1G-SM-W, CHVI-RTS-1G-N-W, CHV-RTS and CHV-RSS. Because the sensors do the measuring, there is no need for a separate wall thermostat in each zone. Eight SPDT relays drive the zone valves and a ninth controls the main valve, each with normally open and normally closed contacts rated 1/2 HP at 240 VAC.

The DIN-1TSTAT8 needs a Crestron control system to work. Setpoints are adjusted from a Crestron touch screen, handheld remote, mobile app or computer, with custom automation and scheduling, and are stored in the thermostat's memory. If a user setpoint is lost, a failsafe mode keeps the space heated at a preset temperature, 20 °C by default and adjustable from 5 to 20 °C, until the setpoint is restored.

The module fits a 35 mm DIN rail in a Crestron DIN-EN series or similar enclosure, occupies 9 DIN module spaces (162 mm) and is powered from Cresnet, using 6 W. Front panel buttons and LEDs let each zone and the main valve be switched for testing. The measurement range is 0 to 43 °C, the heat setpoint range is 3 to 32 °C, and the main valve delay is adjustable from 0 to 5 minutes.

Key features

Eight-zone thermostat for radiant heating
Eight SPDT zone valve relays plus one main valve relay
Contacts rated 1/2 HP at 240 VAC, 50/60 Hz
Works with Crestron remote temperature sensors, one per zone
Failsafe mode keeps heat on if the user setpoint is lost
Onboard controls and indicators for system testing
Cresnet powered and controlled (24 VDC)
9 DIN module spaces on a 35 mm DIN rail

DIN-1TSTAT8 specifications

Zones	8 heat zone outputs plus 1 main valve output
Relay outputs	SPDT with isolated common, normally closed and normally open contacts; 1/2 HP at 240 VAC, 50/60 Hz per zone
Temperature sensors	One per zone: CHVI-RTS-1G-SM-W, CHVI-RTS-1G-N-W, CHV-RTS or CHV-RSS
Measurement range	0 to 43 °C (32 to 110 °F); ±0.5 °C (±1 °F) over full range
Setpoint range	3 to 32 °C (38 to 90 °F), heat only
Failsafe setpoint	20 °C (68 °F) default, adjustable from 5 to 20 °C (41 to 68 °F)
Main valve delay	5 minutes default, adjustable from 0 to 5 minutes
Power	Cresnet, 6 W (250 mA at 24 VDC)
Mounting	35 mm DIN EN 60715 rail, DIN 43880 form factor, 45 mm front panel cutout; 9 DIN module spaces (162 mm)
Dimensions	Height 94 mm (3.68 in), width 161 mm (6.33 in), depth 60 mm (2.34 in)

Part numbers on this page

Part number	Version	Price	Add
DIN-1TSTAT8	Standard	On request

Where the DIN-1TSTAT8 is used

Homes with radiators or radiant floor heating in several zones
Multi-zone heating without a thermostat on the wall in every room
Heating controlled from Crestron touch screens and mobile apps
Scheduled heating as part of a Crestron automation system

Works with the DIN-1TSTAT8

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DIN-1TSTAT8

What is the Crestron DIN-1TSTAT8?

It is an 8-zone thermostat for radiant heating systems that mounts on a DIN rail. It controls a heating valve in each of eight zones plus a main valve, reads remote temperature sensors and integrates with a Crestron control system over Cresnet. It is for heat-only applications using radiators or radiant floor heating.

Which temperature sensors work with the DIN-1TSTAT8?

Each zone needs one remote temperature sensor. Compatible models are the CHVI-RTS-1G-SM-W, CHVI-RTS-1G-N-W, CHV-RTS and CHV-RSS. Each sensor connects to its own 2-pin input on the thermostat using a single twisted pair wire.

Does the DIN-1TSTAT8 need a control system?

Yes. It requires a Crestron control system to function. Users set each zone's heating setpoint through the control system, from a Crestron touch screen, handheld remote, mobile app or computer, and the setpoints are then stored in memory on the thermostat. Custom automation and scheduling are also possible.

What happens if a setpoint is lost?

A failsafe operating mode takes over and keeps the space heated at a preset temperature until the user setpoint is restored. The failsafe setpoint is 20 °C (68 °F) from the factory and can be adjusted from 5 to 20 °C (41 to 68 °F).

What can the relays switch?

There are eight SPDT zone valve relays and one SPDT main valve relay. Each has isolated common, normally closed and normally open terminals and is rated 1/2 HP at 240 VAC, 50/60 Hz. The main valve delay is 5 minutes by default and can be set from 0 to 5 minutes.

How much is the Crestron DIN-1TSTAT8?

Crestron asks its dealers to give the price of the DIN-1TSTAT8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DIN-1TSTAT8?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-1TSTAT8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DIN-1TSTAT8 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-1TSTAT8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DIN-1TSTAT8 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DIN-1TSTAT8 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
