Crestron DIN-THSTAT DIN Rail Thermostat with Humidity

Crestron part number DIN-THSTAT

The Crestron DIN-THSTAT is a heating, cooling and relative humidity thermostat that mounts on a DIN rail rather than on the wall. It controls radiant floor heating, forced air and heat pump HVAC systems, reading room conditions from remote temperature and humidity sensors that are sold separately.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

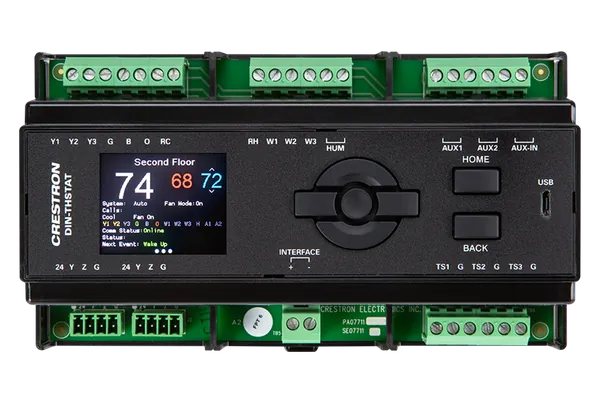

Crestron DIN-THSTAT Heating, Cooling, and Relative Humidity Thermostat, DIN Rail Mount

About the Crestron DIN-THSTAT

Because it mounts on a DIN rail, the DIN-THSTAT can be installed in an equipment cabinet, which keeps the living area free of a wall-mounted thermostat. Small remote sensors in the room, sold separately, supply the temperature and humidity readings. It can measure indoor temperatures from 0 to 43°C and humidity from 0 to 100% RH, with a tolerance of ±0.5°C and ±5% RH.

It works as part of a complete Crestron automation system, sold separately, and connects to the control system over Cresnet, which also powers it at 24 VDC with a consumption of 3 W. A backlit 46 mm RGB LCD, a 5-way navigation pad and HOME and BACK buttons on the front panel are used for setup, testing and local temperature and humidity adjustments.

Its HVAC connections include compressor stages Y1, Y2 and Y3, a fan relay (G), and O and B terminals that are active in cool and non-cool modes respectively, with a relay rating of 1 A at 24 VAC or 30 VDC. Setpoints run from 3 to 37°C in auto mode, 3 to 32°C for heating and 15 to 37°C for cooling. The unit occupies 9 DIN module spaces (162 mm) and measures 94 mm high, 161 mm wide and 60 mm deep.

Key features

Controls radiant floor heat, forced air and heat pump HVAC systems
Heating, cooling and relative humidity control in one unit
Works with Crestron remote temperature and humidity sensors (sold separately)
Cresnet wired integration and Cresnet power (24 VDC)
Backlit RGB LCD with front panel setup and adjustment controls
Compressor stages Y1 to Y3 plus fan relay
9 module DIN rail mounting in the DIN 43880 form factor

DIN-THSTAT specifications

Systems controlled	Radiant floor heat, forced air and heat pump HVAC
Measurement range	Indoor 0 to 43°C (32 to 110°F); outdoor -40 to 77°C (-40 to 170°F), or -34 to 49°C (-30 to 120°F) with thermistor sensors; humidity 0% to 100% RH (from remote sensors)
Tolerance	Temperature ±0.5°C (±1°F); humidity ±5.0% RH
Setpoint range	Auto 3 to 37°C (38 to 99°F); heat 3 to 32°C (38 to 89°F); cool 15 to 37°C (59 to 99°F); humidity 5% to 90% RH
Relay rating	1 A at 24 VAC or 30 VDC
Connections	Y1, Y2, Y3 compressor stages; G fan relay; O active in cool mode; B active in non-cool modes; RC reference cool
Control and power	Cresnet wired communications; Cresnet powered, 3 W (125 mA at 24 VDC)
Display and controls	RGB LCD, 46 mm (1.80 in) diagonal, 176 x 220; 5-way navigation pad, HOME and BACK buttons
Mounting	35 mm DIN EN 60715 rail; DIN 43880 form factor for enclosures with 45 mm front panel cutout; occupies 9 DIN module spaces (162 mm)
Dimensions	Height 94 mm (3.68 in), width 161 mm (6.33 in), depth 60 mm (2.34 in)

Part numbers on this page

Part number	Version	Price	Add
DIN-THSTAT	Standard	On request

Where the DIN-THSTAT is used

Homes with radiant floor heating
Forced air and heat pump HVAC systems
Rooms where a wall-mounted thermostat is not wanted
Crestron automation systems with climate control
Equipment cabinets with DIN rail enclosures

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DIN-THSTAT

What is the Crestron DIN-THSTAT?

It is a heating, cooling and relative humidity thermostat built for DIN rail mounting. It controls radiant floor heat, forced air and heat pump HVAC systems as part of a Crestron automation system, taking room temperature and humidity readings from remote sensors that are sold separately.

Does the DIN-THSTAT need a separate room sensor?

Yes. Temperature and humidity readings come from small remote sensors placed in the room, which are sold separately. With them it can measure indoor temperatures from 0 to 43°C and humidity from 0 to 100% RH, and outdoor temperatures from -40 to 77°C, or -34 to 49°C with thermistor sensors.

How is the DIN-THSTAT powered and connected?

It is powered over Cresnet at 24 VDC and uses 3 W (125 mA). The same Cresnet wired connection integrates it with the Crestron control system. Its HVAC connections include compressor stages Y1 to Y3 and a fan relay (G), with a relay rating of 1 A at 24 VAC or 30 VDC.

Can settings be changed on the unit itself?

Yes. The front panel has a backlit RGB LCD (46 mm diagonal, 176 x 220), a 5-way navigation pad and HOME and BACK buttons. These are used for system setup and testing and for local temperature and humidity adjustments, so the unit can be configured and checked where it is mounted.

How much DIN rail space does the DIN-THSTAT take?

It occupies 9 DIN module spaces (162 mm) on a 35 mm DIN EN 60715 rail, and uses the DIN 43880 form factor for enclosures with a 45 mm front panel cutout. It measures 94 mm high, 161 mm wide and 60 mm deep.

How much is the Crestron DIN-THSTAT?

Crestron asks its dealers to give the price of the DIN-THSTAT directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DIN-THSTAT?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-THSTAT on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DIN-THSTAT come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-THSTAT develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DIN-THSTAT in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DIN-THSTAT without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
