Crestron AM3-222 AirMedia Kit, AM-3200-WF and 2 AM-TX3-200

Crestron part number AM3-222-I KIT

The Crestron AM3-222 is an AirMedia Series 3 kit with one AM-3200-WF-I receiver and two AM-TX3-200 Connect Endpoints, supplied as the AM3-222-I KIT. It suits conference rooms and classrooms that need two sharing points, with the receiver adding a wired HDMI input and RS-232 and IR display control.

€3,179 plus VAT €3,910.17 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

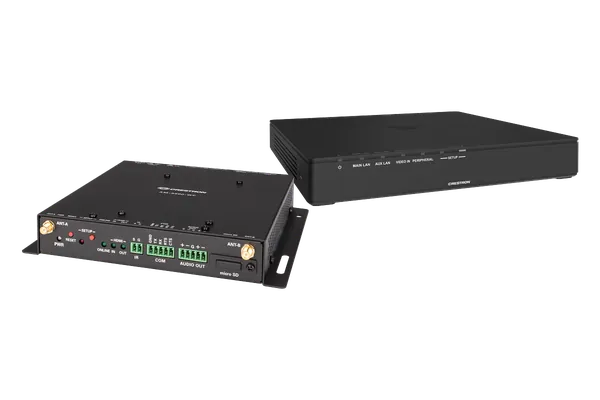

Crestron AM3-222 AirMedia Series 3 Kit with AM-3200-WF-I Receiver and two AM-TX3-200 Endpoints, International

About the Crestron AM3-222

The AM-3200-WF-I is the AirMedia Receiver 3200 with Wi-Fi network connectivity. It has an HDMI input, dual LAN, a balanced audio output and RS-232 and IR display control, and it drives the room display over HDMI. Each AM-TX3-200 Connect Endpoint links a personal device by a single USB-C connection or by HDMI and USB, and shares content with the receiver at up to 4K30.

The two endpoints can be placed in different locations, such as under a table or in a podium, using their supplied brackets. Laptops, smartphones and tablets can also present to the receiver wirelessly, and AirMedia Canvas can show up to four sources at once. The endpoints give access to in-room conferencing peripherals, and the receiver supports wireless conferencing with Microsoft Teams and Zoom.

The receiver runs on PoE+ or a PW-2412WU power pack and can be freestanding, surface mounted or attached to a single rack rail. Each endpoint can be powered by PoE, a PW-2420RU power pack or the connected USB-C device, and on DC power can pass PoE+ through to a touch screen. Power packs are sold separately. The system also supports smart automation, XiO Cloud management and Appspace digital signage.

Key features

Kit of one AM-3200-WF-I receiver and two AM-TX3-200 Connect Endpoints
Receiver adds a wired HDMI input, dual LAN and balanced audio output
RS-232 and IR display control from the receiver
Endpoints connect personal devices by USB-C or by HDMI and USB
Content sharing at up to 4K30 from each endpoint
Wireless conferencing with Microsoft Teams and Zoom
Up to four sources on screen with AirMedia Canvas
XiO Cloud remote provisioning and management

AM3-222 specifications

Kit contents	1 x AM-3200-WF-I receiver, 2 x AM-TX3-200 Connect Endpoints
Receiver	AirMedia Receiver 3200 with Wi-Fi Network Connectivity, International
Endpoint	AirMedia Series 3 Connect Endpoint
Receiver HDMI input	HDCP 1.4, EDID; up to 1920x1080@60Hz (1080p60)
Receiver HDMI output	HDCP 2.2, EDID, CEC
Endpoint inputs	1 x HDMI Type A; USB-C with DisplayPort Alt Mode; USB-C for peripheral access
Wireless resolution	Endpoint content 3840x2160@30Hz (4K30); AirMedia presentation 1920x1080@30Hz (1080p30)
Receiver display control	RS-232 2-way up to 115.2k baud; IR/serial 1-way
Receiver power	PoE+ (IEEE 802.3at Class 4) or PW-2412WU power pack (sold separately); 14 W typical
Endpoint power	PoE (IEEE 802.3at Class 0), PW-2420RU power pack (sold separately) or USB-C from the personal device

Part numbers on this page

Part number	Version	Price	Add
AM3-222-I KIT	International version	€3,179 plus VAT €3,910.17 inc VAT

Where the AM3-222 is used

Conference rooms that need two sharing points
Classrooms
Rooms that need both wired HDMI and wireless sharing
Hybrid meetings on Microsoft Teams or Zoom

Works with the AM3-222

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron AM3-222

What is in the Crestron AM3-222 kit?

The kit, part number AM3-222-I KIT, contains one AirMedia Series 3 Receiver (AM-3200-WF-I), the AirMedia Receiver 3200 with Wi-Fi network connectivity, and two AirMedia Series 3 Connect Endpoints (AM-TX3-200). Together they form a complete wireless presentation system for a room.

What features does the AM-3200-WF-I receiver in the kit have?

It has a wired HDMI input with HDCP 1.4 that accepts up to 1920x1080 at 60 Hz, dual LAN, a balanced audio output, and a 2-way RS-232 port plus an IR/serial port for display control. It also has Wi-Fi, Bluetooth 5.0 and USB host connections for conferencing peripherals.

What can connect to the AM-TX3-200 endpoints in the AM3-222?

Each endpoint accepts a personal device by a single USB-C cable, using DisplayPort Alt Mode, or by HDMI together with a USB connection for peripheral access. The endpoints support Windows 10, Windows 11 and macOS 11 or newer, need no software or drivers, and share content at up to 4K30.

How are the parts in the AM3-222 powered?

The AM-3200-WF-I receiver uses PoE+ (IEEE 802.3at Class 4) or the PW-2412WU power pack, and typically draws 14 W. Each AM-TX3-200 endpoint can use PoE, the PW-2420RU power pack or power from the connected USB-C device. The power packs are sold separately.

How are the receiver and endpoints mounted?

The receiver's black metal chassis has two integral mounting flanges and can be freestanding, surface mounted or attached to a single rack rail. Each AM-TX3-200 comes with a metal bracket for mounting under tables, in podiums or in other locations, and can also be freestanding or surface mounted.

How much is the Crestron AM3-222?

Crestron's advertised price for the AM3-222 in Ireland is €3,179 plus VAT, which is €3,910.17 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the AM3-222?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the AM3-222 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the AM3-222 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the AM3-222 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the AM3-222 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the AM3-222 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
