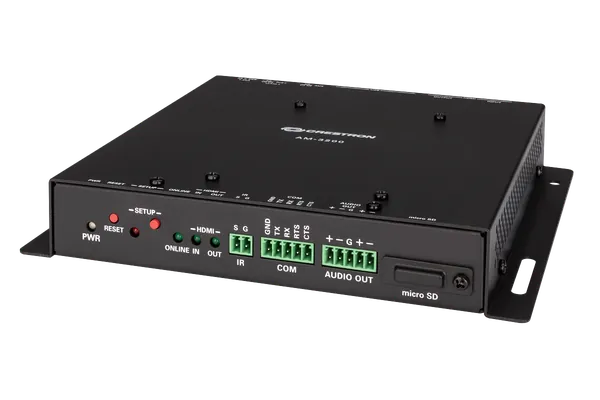

Crestron AM-3200 AirMedia Receiver 3200 with HDMI Input

Crestron part number AM-3200

The Crestron AM-3200 is the AirMedia Receiver 3200, which accepts both a wired HDMI source and wireless AirMedia presentations from laptops, smartphones and tablets. It suits conference rooms and huddle rooms that need secure sharing, display control over RS-232 or IR, and wireless conferencing with Microsoft Teams or Zoom.

€1,694 plus VAT €2,083.62 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

About the Crestron AM-3200

The HDMI input (HDCP 1.4, EDID) takes a wired source at up to 1080p60 and is compatible with DVI and Dual-Mode DisplayPort sources. Wireless AirMedia presentations arrive over the Ethernet network at up to 1080p30 from Apple iOS, Android, Windows 10, Windows 11, macOS and Chrome OS devices. AirMedia Canvas can show up to four sources at once, and the HDMI output supports HDCP 2.2, EDID and CEC.

It has several integration friendly features. There is dual LAN, a balanced audio output, a 2-way RS-232 port for display control at up to 115.2k baud and an IR/serial port for 1-way control. USB 2.0 and USB 3.0 host connections accept USB conferencing peripherals for wireless conferencing with Microsoft Teams and Zoom. Smart automation, XiO Cloud management and built-in digital signage with Appspace support are also included.

Power comes from PoE+ (IEEE 802.3at Class 4) or the PW-2412WU 24 VDC power pack, sold separately, with typical consumption of 14 W. The black metal chassis has two integral mounting flanges and can stand freely, be surface mounted or attach to a single rack rail. It measures 33 mm high, 188 mm wide and 163 mm deep. This page covers the standard AM-3200 and the AM-3200-GV Government Version.

Key features

Wired HDMI input plus wireless AirMedia presentation
Up to four sources on screen with AirMedia Canvas
Wireless conferencing with Microsoft Teams and Zoom via USB peripherals
Dual LAN and balanced audio output
Display control over 2-way RS-232 and IR/serial
XiO Cloud remote provisioning and management
Built-in digital signage with Appspace support
PoE+ powered, or 24 VDC from the PW-2412WU power pack (sold separately)

AM-3200 specifications

HDMI input	HDCP 1.4, EDID; up to 1920x1080@60Hz (1080p60); DVI and Dual-Mode DisplayPort compatible
HDMI output	HDCP 2.2, EDID, CEC
AirMedia	Via Ethernet; up to 1920x1080@30Hz (1080p30)
AirMedia OS support	Apple iOS, Android, Windows 10, Windows 11, macOS, Chrome OS
Network	Dual LAN; 100/1000 Mbps Ethernet
Display control	RS-232 2-way up to 115.2k baud; IR up to 1.1 MHz or 1-way serial TTL/RS-232 up to 19.2k baud
USB	USB 2.0 and USB 3.0 host for USB conferencing peripherals; USB 3.0 device port for computer console
Power	PoE+ (IEEE 802.3at Class 4) or 24 VDC 1.25 A from PW-2412WU (sold separately); 14 W typical
Mounting	Freestanding, surface mount or single rack rail; black metal chassis with 2 integral mounting flanges
Dimensions	Height 33 mm (1.26 in), width 188 mm (7.40 in), depth 163 mm (6.42 in)

Part numbers on this page

Part number	Version	Price	Add
AM-3200	Standard	€1,694 plus VAT €2,083.62 inc VAT
AM-3200-GV	Government version	€2,034 plus VAT €2,501.82 inc VAT

Where the AM-3200 is used

Conference rooms that need a wired HDMI connection as well as wireless
Meeting rooms with displays controlled over RS-232 or IR
Rooms running Microsoft Teams or Zoom from laptops
Huddle rooms, lounges and lobbies
Equipment racks, attached to a single rack rail

Works with the AM-3200

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron AM-3200

What is the Crestron AM-3200?

It is the AirMedia Receiver 3200, a presentation receiver with both a wired HDMI input and wireless AirMedia connectivity. It lets people present securely from laptops, smartphones and tablets, controls the room display over RS-232 or IR, and supports wireless conferencing with Microsoft Teams and Zoom.

What is the difference between the AM-3200 and AM-3200-GV?

Both part numbers are the AirMedia Receiver 3200. The AM-3200 is the standard model and the AM-3200-GV is the version Crestron lists as the Government Version. If you are replacing a receiver, check the part number on the existing unit so the new one matches.

Does the AM-3200 have a wired HDMI input?

Yes. It has an HDMI input with HDCP 1.4 and EDID management that accepts up to 1920x1080 at 60 Hz, and it is compatible with DVI and Dual-Mode DisplayPort sources. Wireless AirMedia presentations are received at up to 1920x1080 at 30 Hz.

Can the AM-3200 control the room display?

Yes. It has a bidirectional RS-232 port on a 5-pin terminal block for 2-way control at up to 115.2k baud, and an IR/serial port on a 2-pin terminal block for 1-way control by infrared up to 1.1 MHz or serial TTL/RS-232 up to 19.2k baud. The HDMI output also supports CEC.

How is the AM-3200 powered and mounted?

It is powered by PoE+ (IEEE 802.3at Class 4) or by the PW-2412WU 24 VDC power pack, which is sold separately, and typically uses 14 W. The metal chassis has two integral mounting flanges and can be freestanding, surface mounted or attached to a single rack rail.

How much is the Crestron AM-3200?

Crestron's advertised price for the AM-3200 in Ireland is €1,694 plus VAT, which is €2,083.62 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the AM-3200?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the AM-3200 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the AM-3200 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the AM-3200 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the AM-3200 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the AM-3200 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
