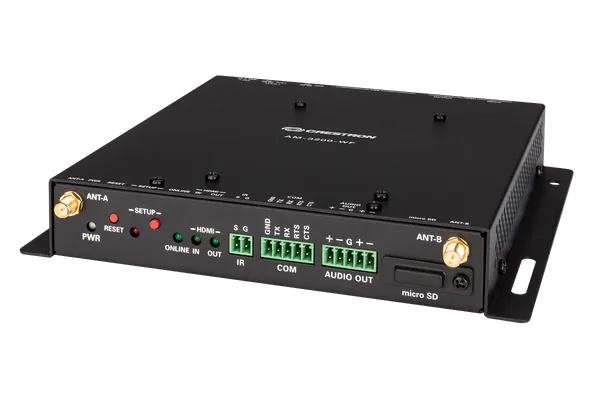

Crestron AM-3200-WF AirMedia Receiver 3200 with Wi-Fi

Crestron part number AM-3200-WF-I

The Crestron AM-3200-WF is the AirMedia Receiver 3200 with Wi-Fi network connectivity, supplied here as the AM-3200-WF-I international version. It combines a wired HDMI input with secure wireless presentation and conferencing, and accepts content from AirMedia Connect Adaptors at up to 4K30.

€1,773 plus VAT €2,180.79 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron AM-3200-WF AirMedia Receiver 3200 with Wi-Fi Network Connectivity, International

About the Crestron AM-3200-WF

People can present from laptops, smartphones, tablets and AirMedia Connect Adaptors, either wirelessly or through the HDMI input. The HDMI input (HDCP 1.4, EDID) accepts up to 1080p60 and is compatible with DVI and Dual-Mode DisplayPort sources. AirMedia presentations are received at up to 1080p30 and Connect Adaptor content at up to 4K30. AirMedia Canvas can show up to four sources at once, and the HDMI output supports HDCP 2.2, EDID and CEC.

The receiver has dual-band Wi-Fi (802.11a/b/g/n/ac/ax) with a quoted range of up to 30 m at 80 Mbps, subject to site conditions, plus dual LAN and Bluetooth 5.0. For integration there is a balanced audio output, a 2-way RS-232 port at up to 115.2k baud and an IR/serial port for 1-way display control. USB 2.0 and USB 3.0 host connections accept USB conferencing peripherals for wireless conferencing with Microsoft Teams and Zoom.

Power is by PoE+ (IEEE 802.3at Class 4) or the PW-2412WU 24 VDC power pack, sold separately, with typical consumption of 14 W. The black metal chassis has two integral mounting flanges and can be freestanding, surface mounted or attached to a single rack rail. It measures 33 mm high, 188 mm wide and 177 mm deep. XiO Cloud support covers remote provisioning and management, and built-in digital signage works with Appspace.

Key features

Wired HDMI input plus wireless AirMedia presentation
Dual-band Wi-Fi 802.11a/b/g/n/ac/ax and Bluetooth 5.0
Accepts AirMedia Connect Adaptor content at up to 4K30
Wireless conferencing with Microsoft Teams and Zoom via USB peripherals
Dual LAN, balanced audio output, RS-232 and IR display control
Up to four sources on screen with AirMedia Canvas
XiO Cloud remote provisioning and management
PoE+ powered, or 24 VDC from the PW-2412WU power pack (sold separately)

AM-3200-WF specifications

Wi-Fi	Dual-band 802.11a/b/g/n/ac/ax (2.4 GHz and 5 GHz); up to 30 m (100 ft) at 80 Mbps, subject to site conditions
Network	Dual LAN; 100/1000 Mbps Ethernet; Bluetooth 5.0
HDMI input	HDCP 1.4, EDID; up to 1920x1080@60Hz (1080p60); DVI and Dual-Mode DisplayPort compatible
HDMI output	HDCP 2.2, EDID, CEC
Wireless input resolution	AirMedia presentation 1920x1080@30Hz (1080p30); AirMedia Connect Adaptor 3840x2160@30Hz (4K30)
Display control	RS-232 2-way up to 115.2k baud; IR up to 1.1 MHz or 1-way serial TTL/RS-232 up to 19.2k baud
USB	USB 2.0 and USB 3.0 host for USB conferencing peripherals; USB 3.0 device port for computer console
Conferencing	Microsoft Teams and Zoom; AirMedia Connect Adaptor on Windows 10, Windows 11, macOS 11 or later
Power	PoE+ (IEEE 802.3at Class 4) or 24 VDC 1.25 A from PW-2412WU (sold separately); 14 W typical
Size and mounting	Height 33 mm, width 188 mm, depth 177 mm; freestanding, surface mount or single rack rail

Part numbers on this page

Part number	Version	Price	Add
AM-3200-WF-I	International version	€1,773 plus VAT €2,180.79 inc VAT

Where the AM-3200-WF is used

Conference rooms that need both wired HDMI and wireless sharing
Rooms where presenters share through AirMedia Connect Adaptors
Hybrid meetings on Microsoft Teams or Zoom
Meeting rooms with displays controlled over RS-232 or IR
Equipment racks, attached to a single rack rail

Works with the AM-3200-WF

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron AM-3200-WF

What is the Crestron AM-3200-WF?

It is the AirMedia Receiver 3200 with Wi-Fi network connectivity. It combines a wired HDMI input with wireless AirMedia presentation and conferencing, and includes RS-232 and IR display control. The part number supplied on this page is the AM-3200-WF-I, the international version.

How does the AM-3200-WF differ from the AM-3200?

Both are the AirMedia Receiver 3200, with an HDMI input, dual LAN, a balanced audio output and RS-232 and IR display control. The AM-3200-WF adds Wi-Fi network connectivity, which lets it pair with AirMedia Connect Adaptors such as the AM-TX3-100 and accept their content at up to 4K30. It is also deeper, at 177 mm against 163 mm.

Which AirMedia Connect Adaptors work with the AM-3200-WF?

The AM-TX3-100 Connect Adaptor pairs with it wirelessly and, when paired, gives access to the conferencing peripherals connected to the receiver. Crestron also offers the receiver in the AM3-222 kit with two AM-TX3-200 Endpoints. Up to eight adaptors can be paired with one receiver.

How is the receiver powered?

It is powered by PoE+ (IEEE 802.3at Class 4) or by the PW-2412WU power pack, which is sold separately and supplies 24 VDC at 1.25 A from a 100 to 240 V AC, 50/60 Hz input. Typical power consumption is 14 W.

How can the receiver be mounted?

The black metal chassis has two integral mounting flanges and vented sides. It can be freestanding, surface mounted or attached to a single rack rail, and it measures 33 mm high, 188 mm wide and 177 mm deep.

How much is the Crestron AM-3200-WF?

Crestron's advertised price for the AM-3200-WF in Ireland is €1,773 plus VAT, which is €2,180.79 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the AM-3200-WF?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the AM-3200-WF on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the AM-3200-WF come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the AM-3200-WF develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the AM-3200-WF in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the AM-3200-WF without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
