Crestron TSW-1080R Crestron Home OS Wall Touch Screen

Crestron part number TSW-1080R-B

The Crestron TSW-1080R is a 10.1 in. wall mount touch screen designed to run Crestron Home OS in residential projects. It pairs a 1920 x 1200 capacitive display with a Rava SIP intercom, streaming video, Wi-Fi 6E and PoE or PoE+ power over a single cable.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

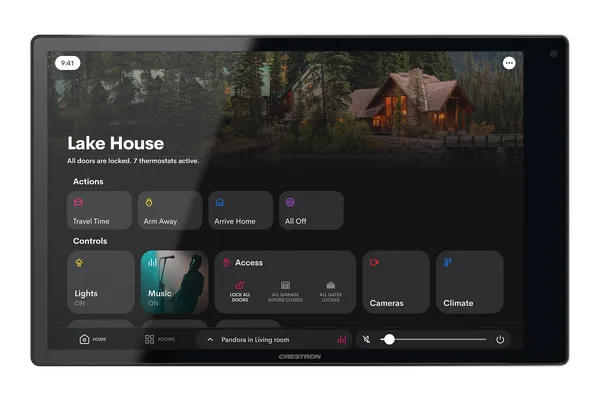

Crestron TSW-1080R 10.1 in. Wall Mount Touch Screen, Crestron Home OS Version

About the Crestron TSW-1080R

The native Crestron Home OS app runs on a 10.1 in. (257 mm) display at 1920 x 1200 with 350 to 400 nits brightness and 5-point multitouch. The graphics engine provides a dual scalable streaming video window for H.265, H.264 and MJPEG video with AAC stereo audio, and built-in speakers and a microphone handle the Rava SIP intercom.

One Ethernet cable carries 1000 Mbps data and PoE or PoE+ power, with 30 W (PoE+ Class 4) requested from an 802.3at Type 2 source when LLDP is not used. Wi-Fi 6E on 2.4, 5 and 6 GHz and Bluetooth 5.2 (BLE) are built in, and a USB-C 2.0 port is provided for room availability accessories and conferencing.

The panel surface mounts over standard electrical boxes, including 2-gang BS 4662 and DIN 49073 boxes, and Crestron offers a range of optional mounting accessories. It measures 151 mm high, 246 mm wide and 30 mm deep, with 8 GB of RAM and 40 GB of storage. Choose the black TSW-1080R-B or the white TSW-1080R-W.

Key features

Native Crestron Home OS app
10.1 in. 1920 x 1200 capacitive display
Rava SIP intercom with built-in speakers and microphone
Dual scalable streaming video window for H.265, H.264 and MJPEG
Single Ethernet cable with PoE or PoE+ power
1000 Mbps Ethernet, Wi-Fi 6E and Bluetooth 5.2
USB-C 2.0 port for room availability accessories and conferencing
Black or white finish

TSW-1080R specifications

Display	10.1 in. (257 mm) TFT active matrix colour LCD, 16:10, 1920 x 1200 pixels
Brightness and contrast	350 to 400 nits, 1000:1, edgelit LED with auto brightness control
Touch	Projected capacitive, 5-point multitouch; 6 virtual buttons
Streaming video	H.265, H.264, MJPEG with AAC stereo; dual scalable streaming video window
Memory	8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage, 1000 MB maximum project size
Wired connections	1000 Mbps Ethernet; USB 2.0 host
Wireless	Wi-Fi 6E IEEE 802.11a/b/g/n/ac/ax, 2.4, 5 and 6 GHz, 2x2 MIMO; Bluetooth BLE 5.2, 10 m (33 ft) typical
Power	PoE or PoE+; IEEE 802.3at Type 2 powered device, requests 30 W (PoE+ Class 4) without LLDP
Mounting	Surface mount over standard electrical boxes including 2-gang BS 4662 and DIN 49073
Dimensions	Height 151 mm (5.96 in), width 246 mm (9.68 in), depth 30 mm (1.18 in)

Part numbers on this page

Part number	Version	Price	Add
TSW-1080R-B	Black	On request
TSW-1080R-W	White	On request

Where the TSW-1080R is used

Homes running Crestron Home OS
Wall-mounted control points around the home
Rava SIP intercom stations
Viewing H.265, H.264 or MJPEG video streams

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron TSW-1080R

What is the Crestron TSW-1080R?

It is a 10.1 in. wall mount touch screen designed to run Crestron Home OS and intended for residential use. It has a 1920 x 1200 capacitive display, a Rava SIP intercom with speakers and microphone, H.265, H.264 and MJPEG streaming video, Wi-Fi 6E and PoE or PoE+ power.

What is the difference between the TSW-1080R-B and TSW-1080R-W?

They are the same Crestron Home OS wall mount touch screen in two colours. The TSW-1080R-B is black and the TSW-1080R-W is white, and Crestron describes them identically apart from the colour. Pick the one that matches the existing panel or the room.

How is the TSW-1080R powered?

A single Ethernet cable carries 1000 Mbps data and PoE or PoE+ power. As an IEEE 802.3at Type 2 powered device, it requests 30 W (PoE+ Class 4) from an 802.3at Type 2 power source when LLDP is not used.

How is it mounted?

It surface mounts over standard electrical boxes, including 2-gang BS 4662 and DIN 49073 boxes, and Crestron offers a range of optional mounting accessories for other situations. The panel measures 151 mm high, 246 mm wide and 30 mm deep.

How does the TSW-1080R differ from the TSW-1080?

The TSW-1080R is designed to run Crestron Home OS and is aimed at residential projects. The TSW-1080 is intended for residential and enterprise use, supporting custom HTML5 projects and native apps for Crestron Home OS, Zoom Rooms and room scheduling, plus web browsing. Both have a 10.1 in. 1920 x 1200 display.

How much is the Crestron TSW-1080R?

Crestron asks its dealers to give the price of the TSW-1080R directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TSW-1080R?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TSW-1080R on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TSW-1080R come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TSW-1080R develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TSW-1080R in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the TSW-1080R without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
