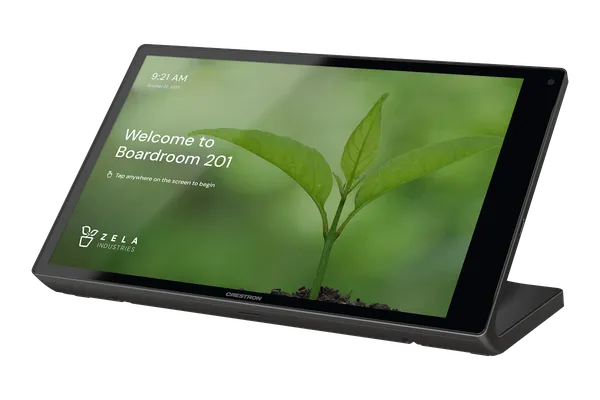

Crestron TS-1080 10.1 in. Tabletop Touch Screen

Crestron part number TS-1080-B

The Crestron TS-1080 is a 10.1 in. tabletop touch screen for homes and businesses, with a 1920 x 1200 capacitive display and support for custom HTML5 control projects. It adds native apps for Crestron Home OS, Zoom Rooms and room scheduling, plus a Rava SIP intercom, streaming video and Wi-Fi 6E.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron TS-1080 10.1 in. Tabletop Touch Screen

About the Crestron TS-1080

The 10.1 in. (257 mm) screen runs at 1920 x 1200, with brightness from 350 to 400 nits, automatic brightness control and 5-point multitouch. Six virtual buttons in a collapsible toolbar can be shown or hidden individually. Built-in speakers and a microphone support the Rava SIP intercom, and web browsing is built in.

The TS-1080 can show live H.265, H.264 or MJPEG video from an IP camera or a streaming encoder such as the Crestron DM-TXRX-100-STR, delivered over the network with no separate video cabling. It connects by 1000 Mbps Ethernet or Wi-Fi 6E on 2.4, 5 and 6 GHz, and it has Bluetooth 5.2 (BLE). With 8 GB of RAM and 40 GB of storage, it takes custom projects up to 1000 MB.

Power comes over Ethernet: without LLDP the panel requests 30 W (PoE+ Class 4) from an 802.3at Type 2 source. For room scheduling it supports Microsoft Exchange Server and Microsoft 365, Google Calendar and G Suite, CollegeNET 25Live and various third-party apps. This page covers the black TS-1080-B, the white TS-1080-W and the TS-1080-GV-B Government Version.

Key features

10.1 in. 1920 x 1200 capacitive touch display
Custom HTML5 projects up to 1000 MB
Native apps for Crestron Home OS, Zoom Rooms and room scheduling
Rava SIP intercom with built-in speakers and microphone
Live H.265, H.264 and MJPEG streaming video
1000 Mbps Ethernet, Wi-Fi 6E and Bluetooth 5.2
Built-in web browsing
PoE+ network power

TS-1080 specifications

Display	10.1 in. (257 mm) TFT active matrix colour LCD, 16:10, 1920 x 1200 pixels
Brightness and contrast	350 to 400 nits, 1000:1, edgelit LED with auto brightness control
Touch	Projected capacitive, 5-point multitouch; 6 virtual buttons
Memory	8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage, 1000 MB maximum project size
Wired connections	1000 Mbps Ethernet; USB 2.0 host for room scheduling accessories
Wireless	Wi-Fi 6E IEEE 802.11a/b/g/n/ac/ax, 2.4, 5 and 6 GHz, 2x2 MIMO; Bluetooth BLE 5.2, 10 m (33 ft) typical
Wi-Fi security	WEP, WPA, WPA2, WPA3, WPA Enterprise and WPA2 Enterprise
Streaming video	H.265, H.264, MJPEG
Power	PoE+ (IEEE 802.3at Type 2) powered device; requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP
Dimensions	Height 124 mm (4.88 in), width 245 mm (9.68 in), depth 115 mm (4.53 in)

Part numbers on this page

Part number	Version	Price
TS-1080-B	Black	On request
TS-1080-GV-B	Government version	On request
TS-1080-W	White	On request

Where the TS-1080 is used

Meeting room tables using Zoom Rooms
Homes run on Crestron Home OS
Viewing IP camera feeds from a table
Rooms booked through Microsoft 365 or Google Calendar
Rava SIP intercom points

Works with the TS-1080

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron TS-1080

What is the Crestron TS-1080?

It is a 10.1 in. tabletop touch screen for residential and enterprise use. It has a 1920 x 1200 capacitive display, supports custom HTML5 projects, and includes native apps for Crestron Home OS, Zoom Rooms and room scheduling services, along with a Rava SIP intercom and web browsing.

What is the difference between the TS-1080-B, TS-1080-W and TS-1080-GV-B?

The TS-1080-B is black and the TS-1080-W is white. The TS-1080-GV-B is the part Crestron lists as the Government Version. When replacing a panel, check the part number of the existing unit so the colour and version match.

How is the TS-1080 powered?

It is powered over Ethernet as an IEEE 802.3at Type 2 PoE+ powered device. Without LLDP power management it requests 30 W (PoE+ Class 4) from an 802.3at Type 2 power source. The same cable carries 1000 Mbps data, and Wi-Fi 6E is also available for the network connection.

Can the TS-1080 show camera video?

Yes. It natively supports H.265, H.264 and MJPEG, so it can display live video from an IP camera or a streaming encoder such as the Crestron DM-TXRX-100-STR. The video reaches the touch screen over Ethernet, so no extra video wiring is needed.

Which room scheduling services does the TS-1080 support?

The Crestron Scheduling App works with Microsoft Exchange Server and Microsoft 365, Google Calendar and G Suite, and CollegeNET 25Live, and various third-party scheduling apps are also supported. A USB 2.0 host port is provided for room scheduling accessories.

How much is the Crestron TS-1080?

Crestron asks its dealers to give the price of the TS-1080 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TS-1080?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TS-1080 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TS-1080 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TS-1080 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TS-1080 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the TS-1080 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
