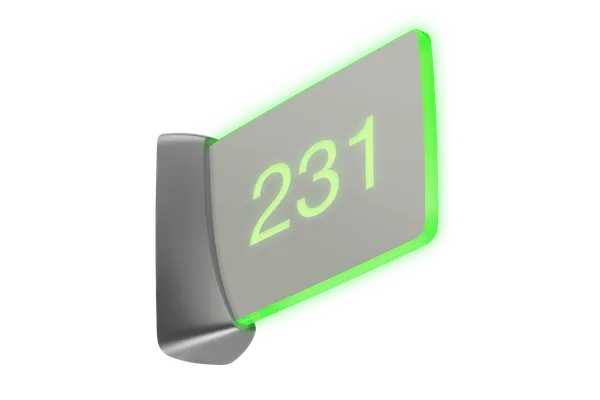

Crestron SSW-102-EL-USB Engraved Wall Room Availability Sign Kit

It is a wall mount room availability hall sign kit with custom engraving included. The kit holds the SSW-102-EL sign and an ADPT-USB-USB-RA USB-C to USB-A adapter. The sign lights green or red to show whether a room is available and can be clearly seen from 46 m (150 ft).

Each side of the two-sided acrylic face takes one or two lines of text or a graphical icon, with the same text or icon on both sides. Custom engraving is included with this kit. If no engraving is needed, the SSW-100-EL-USB KIT is listed as the version supplied without it.

It connects over USB 2.0 to TSW-70 and TSW-80 series touch screens used for room scheduling. Connecting to an 80 series panel requires the ADPT-USB-USB-RA adapter, which is included. A Cresnet connection to a Crestron control system is also possible for custom functions.

It uses 1.2 W at 5 V when running on USB power, or 2.4 W at 24 VDC on Cresnet power. Heat dissipation is 4 BTU/hr on USB power and 7 BTU/hr on Cresnet. It operates from 5°C to 45°C with 10% to 90% non-condensing humidity.

It mounts to the wall over a 1-gang electrical box or plaster ring. It measures 163 mm high, 71 mm wide and 218 mm deep, and it projects 214 mm (8.43 in) from the mounting surface. It has a metal bracket, a replaceable grey acrylic face and a magnetically held grey plastic bezel.

Crestron's advertised price for the SSW-102-EL-USB in Ireland is €317 plus VAT, which is €389.91 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the SSW-102-EL-USB on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the SSW-102-EL-USB develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
