Crestron MPC3-302 3-Series Media Presentation Controller

Crestron part number MPC3-302-B

The Crestron MPC3-302 is a 3-Series control system processor and wall-mounted control panel in one unit, powered by PoE+. Ten customisable backlit buttons, a rotary volume knob and power and mute buttons give users direct control of AV and other room functions, while onboard ports handle the connected equipment.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

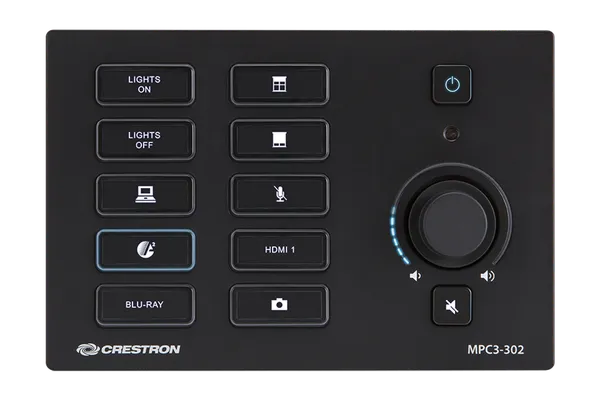

Crestron MPC3-302 3-Series Media Presentation Controller 302

About the Crestron MPC3-302

With the 3-Series processor built in, the MPC3-302 is both the control system and the user interface for a room. It includes Crestron's .AV Framework software and has onboard control ports: a bidirectional RS-232 port up to 115.2k baud, an IR/serial port, two isolated relays rated 1 A at 30 V AC/DC, and two Versiport ports for digital input/output or analogue input. A Cresnet master port supplies up to 2.5 W.

The 100 Mbps Ethernet port carries both the network connection and PoE+ power. The unit requests 15 W from an 802.3at Type 2 PSE using LLDP and typically uses 8.5 W. It supports control apps for iPhone, iPad and Android devices, XPanel computer and web-based control, and native BACnet and IP support. Installer setup is possible through software, a web browser or the cloud.

It mounts flush on a wall or lectern in a 3-gang electrical box, or in a tabletop enclosure, and measures 115 mm high, 171 mm wide and 62 mm deep. The ten buttons take replaceable labels, with 25 predesignated and five blank labels included. This page covers the black MPC3-302-B and the white MPC3-302-W, and the unit is covered under the Crestron standard limited warranty.

Key features

3-Series control processor and control panel in one
Ten customisable backlit buttons with replaceable labels
Rotary volume knob with circular LED gauge, plus power and mute buttons
Onboard RS-232, IR/serial, relay and Versiport ports
Cresnet master port with 2.5 W available
PoE+ powered over Ethernet
Built-in .AV Framework software
Native BACnet support, XPanel and mobile app control

MPC3-302 specifications

Processor	Crestron 3-Series control engine
Buttons	10 assignable push buttons, power and mute buttons, rotary volume knob
Control ports	1 x RS-232 (2-way, up to 115.2k baud); 1 x IR/serial (IR up to 1.2 MHz, serial up to 115.2k baud); 2 x relay (1 A, 30 V AC/DC); 2 x Versiport
Cresnet	Master port; 2.5 W (104 mA at 24 VDC) available
Network	1 x RJ45, 100Base-TX Ethernet
Power	PoE+ (IEEE 802.3at Type 2); requests 15 W with LLDP; 8.5 W typical
Mounting	Flush in a 3-gang electrical box, wall or lectern, or tabletop enclosure
Dimensions	Height 115 mm (4.50 in), width 171 mm (6.70 in), depth 62 mm (2.41 in)
Environment	5 to 35°C operating temperature
Warranty	Covered under the Crestron standard limited warranty

Part numbers on this page

Part number	Version	Price	Add
MPC3-302-B	Black	On request
MPC3-302-W	White	On request

Where the MPC3-302 is used

Meeting rooms controlled from a single wall panel
Lecterns in classrooms and lecture theatres
Rooms with displays controlled over RS-232 or IR
Buildings that use BACnet

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron MPC3-302

What is the Crestron MPC3-302?

It is the 3-Series Media Presentation Controller 302, a 3-Series control system processor and wall-mounted control panel combined in one PoE+ powered unit. It has ten customisable backlit buttons, a rotary volume knob, power and mute buttons, and onboard ports for controlling room equipment.

What control ports does the MPC3-302 have?

It has a bidirectional RS-232 port up to 115.2k baud with hardware and software handshaking, an IR/serial port for 1-way control (IR up to 1.2 MHz), two normally open isolated relays rated 1 A at 30 V AC/DC, two Versiport ports and a Cresnet master port.

How is the MPC3-302 powered?

It is powered over Ethernet as an IEEE 802.3at Type 2 PoE+ powered device, requesting 15 W from an 802.3at Type 2 PSE using LLDP power management. Typical consumption is 8.5 W, and the Cresnet port can supply 2.5 W to connected Cresnet devices.

What is the difference between MPC3-302-B and MPC3-302-W?

They are the same 3-Series Media Presentation Controller 302 in two colours: MPC3-302-B is black and MPC3-302-W is white. Choose the colour that matches the room or the other Crestron panels already on the walls.

How does the controller mount?

It mounts flush on a wall or lectern in a 3-gang electrical box, or in a tabletop enclosure. The unit is 115 mm high, 171 mm wide and 62 mm deep, so check the existing back box when replacing one.

How much is the Crestron MPC3-302?

Crestron asks its dealers to give the price of the MPC3-302 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the MPC3-302?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the MPC3-302 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the MPC3-302 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the MPC3-302 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the MPC3-302 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the MPC3-302 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
