Crestron part number CENI-GW1

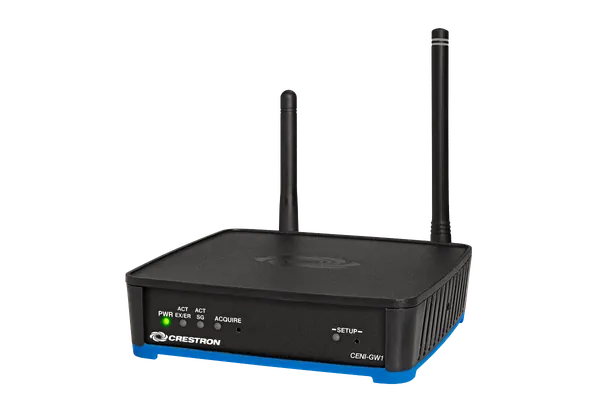

The Crestron CENI-GW1 is a universal wireless gateway that creates SG (Sub GHz), ER (Extended Range) and infiNET EX wireless networks from one unit. It gives a Crestron control system 2-way communication with wireless remotes, keypads, lighting dimmers, battery-powered shades and other devices, and suits 3-Series control systems or newer.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron CENI-GW1
The gateway has a separate transceiver for each network. The infiNET EX and ER transceivers are 2-way RF in the 2.4 GHz ISM band at +19 dBm, with infiNET EX on channels 11 to 26 (default 15) and IEEE 802.15.4 compliant. The SG transceiver runs at +27 dBm on channel 32. Indoor range is 150 ft (46 m) for infiNET EX, 100 to 200 ft (31 to 61 m) for ER and 230 ft (70 m) for SG, subject to site conditions.
One gateway supports up to 50 SG devices and up to five infiNET EX expanders. It handles up to 100 infiNET EX devices when no ER devices are used, and each ER device added, up to 10, lowers that figure by 10. Coverage can be extended with infiNET EX expanders and the built-in ER roaming. Setup uses dynamic discovery, Wi-Fi friendly channel selection and a built-in energy scan tool for picking a channel.
Power comes from PoE (IEEE 802.3at Type 1, 802.3af compatible, Class 3) or a 24VDC power pack rated at 0.75 A minimum, such as the PW-2407WU, sold separately. Typical consumption is 5.3 W. The small IFE enclosure can stand freely, stack on other IFE devices, surface mount or fit 35 mm DIN rail, where it takes 8 module spaces. Antennas can be mounted remotely with one ANT-EXT-10 per antenna.
Key features
- One gateway for SG, ER and infiNET EX wireless networks
- Supports Crestron battery-powered shades
- Up to 50 SG devices and up to 100 infiNET EX devices
- Dynamic discovery and Wi-Fi friendly channel selection
- Built-in energy scan tool for choosing a channel
- Remote antenna mounting with ANT-EXT-10 (sold separately)
- PoE or 24VDC power, 5.3 W typical
- IFE enclosure for surface, DIN rail or stacked mounting
CENI-GW1 specifications
| infiNET EX | 2-way RF, 2.4 GHz ISM, channels 11 to 26 (default 15), IEEE 802.15.4; +19 dBm; 150 ft (46 m) indoor, 250 ft (76 m) outdoor to nearest mesh device |
|---|---|
| ER | 2-way RF, 2.4 GHz ISM; +19 dBm; 100 to 200 ft (31 to 61 m) maximum indoor |
| SG | 2-way RF, channel 32; +27 dBm; 230 ft (70 m) indoor, 656 ft (200 m) outdoor |
| Device capacity | Up to 50 SG devices and 5 infiNET EX expanders; up to 100 infiNET EX devices, 10 fewer for each ER device (maximum 10 ER) |
| Ethernet | 10/100 Mbps, auto-negotiating, DHCP, IEEE 802.3at Type 1 compliant |
| Power | PoE, IEEE 802.3at Type 1 (802.3af compatible) Class 3; or 24VDC, 0.75 A minimum (PW-2407WU sold separately) |
| Power consumption | 5.3 W typical |
| Enclosure | IFE small form factor, black and blue plastic with die-cast zinc top cover |
| Mounting | Freestanding, stackable, surface mount or 35 mm DIN EN 60715 rail (8 DIN module spaces, 144 mm) |
| Dimensions | Height 35 mm (45 mm with bracket), width 128 mm (137 mm with bracket), depth 131 mm |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| CENI-GW1 | International version | On request |
Where the CENI-GW1 is used
Works with the CENI-GW1
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron CENI-GW1
What is the Crestron CENI-GW1?
It is a universal wireless gateway that lets a Crestron control system communicate 2-way with SG (Sub GHz), ER (Extended Range) and infiNET EX wireless devices. One unit creates all three wireless networks, and it supports Crestron battery-powered shades. It is compatible with 3-Series control systems or newer.
How many devices can one CENI-GW1 support?
It supports up to 50 SG devices and up to five infiNET EX expanders. With no ER devices it supports up to 100 infiNET EX devices. Each ER device reduces the infiNET EX limit by 10, so with the maximum of 10 ER devices no infiNET EX devices can be added.
What is the wireless range of the CENI-GW1?
Crestron quotes indoor range of 150 ft (46 m) for infiNET EX to the nearest mesh device, 100 to 200 ft (31 to 61 m) maximum for ER, and 230 ft (70 m) for SG, which reaches 656 ft (200 m) outdoors. Range depends on site conditions. Expanders and ER roaming can extend coverage.
How is the gateway powered?
It can be powered by PoE as an IEEE 802.3at Type 1 (802.3af compatible) Class 3 device, or by a 24VDC power pack rated at 0.75 A minimum, such as the PW-2407WU, which is sold separately. Typical power consumption is 5.3 W. The Ethernet port runs at 10/100 Mbps with DHCP.
Can the antennas be mounted remotely?
Yes. The antennas can be moved away from the gateway using the ANT-EXT-10, with one needed for each antenna, sold separately. The gateway itself sits in a small IFE enclosure that can stand freely, stack on other IFE devices, surface mount or fit 35 mm DIN rail.
How much is the Crestron CENI-GW1?
Crestron asks its dealers to give the price of the CENI-GW1 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the CENI-GW1?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CENI-GW1 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the CENI-GW1 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CENI-GW1 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the CENI-GW1 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the CENI-GW1 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
