Crestron GLNET-CN Pre-Assembled Lighting Control Processor Panel

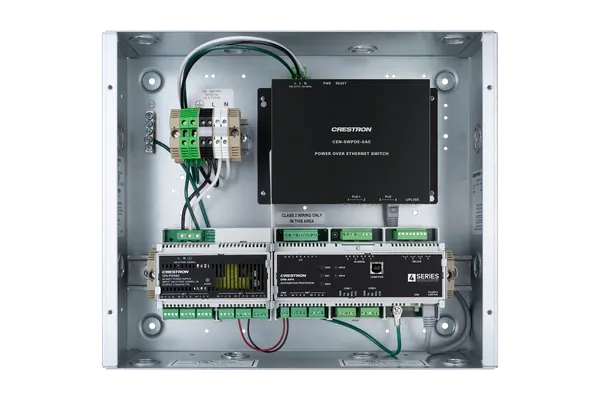

It is a pre-assembled lighting control cabinet for Crestron lighting systems. Inside a DIN-EN-2X18 wall mount enclosure it combines a DIN-AP4 4-Series control processor, a DIN-PWS60 60 W Cresnet power supply and a CEN-SWPOE-5AC 5-port PoE network switch. It is aimed at commercial applications that do not require scheduling.

Four Crestron components: the DIN-AP4 4-Series DIN Rail Control System, the DIN-PWS60 60 W Cresnet Power Supply, the CEN-SWPOE-5AC 5-Port PoE Network Switch, and the DIN-EN-2X18 enclosure for DIN rail devices that holds them. The components can also be ordered individually.

Crestron describes it as a solution for commercial lighting applications that do not require scheduling. If a project needs scheduled lighting, raise that requirement at the design stage before choosing this panel.

The CEN-SWPOE-5AC switch provides connectivity and PoE for up to four Ethernet devices, and the DIN-PWS60 supports a small network of Cresnet devices. The DIN-AP4 processor adds its own control ports, Cresnet and high-speed Ethernet, plus BACnet/IP support.

It takes 100 to 277 VAC main power. The wall mount panel measures 313 mm (12-5/16 in) high, 359 mm (14-1/8 in) wide and 111 mm (4-3/8 in) deep, and the operating range is 5°C to 40°C at 10% to 90% RH, non-condensing.

Crestron asks its dealers to give the price of the GLNET-CN directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the GLNET-CN on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the GLNET-CN develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
