Crestron DIN-IO8 DIN Rail Versiport Module, 8 I/O Ports

Crestron part number DIN-IO8

The Crestron DIN-IO8 is a DIN rail automation control module with eight Versiport I/O ports. It connects a Crestron control system to third-party sensors, detectors, contact closures and alarms, and it communicates with the control system and takes its power over Cresnet.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

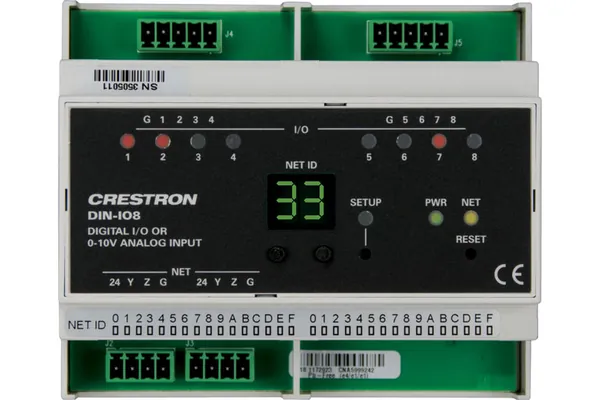

Crestron DIN-IO8 DIN Rail Versiport Module

About the Crestron DIN-IO8

Each Versiport can be set in software as a digital input, an analogue input or a digital trigger output. As a digital input it senses a contact closure or logic level signal from devices such as motion detectors, partition sensors, alarm panels, 12 V triggers and all types of switches and relays. As an analogue input it senses changes in resistance or DC voltage level.

The DIN-IO8 communicates with a DIN-AP4 4-Series DIN Rail Control System, or any other Crestron 4-Series control system, over Cresnet, which also powers the module. A pair of Cresnet ports makes it easy to daisy-chain several DIN Rail Series automation modules, and all functions are fully programmable through the control system.

The module is 6M wide and snaps onto a standard DIN rail, either in a wall mount enclosure or on a wall panel. Wiring uses detachable screw terminals along the top and bottom, clearly accessible from the front for easier installation and servicing. Because Cresnet carries both its data and its power, one Cresnet connection serves both.

Key features

8 Versiport I/O ports
Each port set as digital input, analogue input or digital trigger output
Interface for third-party sensors, detectors, contact closures and alarms
Senses contact closures, logic levels, resistance or DC voltage
Works with the DIN-AP4 and other 4-Series control systems
Cresnet communications and power, with two daisy-chain ports
6M wide DIN rail mounting

DIN-IO8 specifications

I/O ports	8 Versiport ports
Port modes	Digital input, analogue input or digital trigger output (set in software)
Digital input	Senses contact closure or logic level signals
Analogue input	Senses changes in resistance or DC voltage level
Communications	Cresnet, 2 ports for daisy-chaining
Power	Powered via Cresnet
Control systems	DIN-AP4 4-Series DIN Rail Control System or other Crestron 4-Series control system
Connections	Detachable screw terminals along the top and bottom
Mounting	Standard DIN rail, 6M wide; in a wall mount enclosure or on a wall panel

Part numbers on this page

Part number	Version	Price	Add
DIN-IO8	Standard	On request

Where the DIN-IO8 is used

Motion detectors and partition sensors
Alarm panel interfacing
12 V triggers, switches and relays
Sensing resistance or DC voltage levels from third-party equipment
Adding I/O to a DIN-AP4 based system

Works with the DIN-IO8

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron DIN-IO8

What is the Crestron DIN-IO8?

It is a DIN rail mounted automation control module with eight Versiport I/O ports. It provides an interface between a Crestron control system and a wide range of third-party devices, such as sensors, detectors, contact closures and alarms, and it communicates over Cresnet.

What can a Versiport on the DIN-IO8 do?

Each Versiport can be configured in software as a digital input, an analogue input or a digital trigger output. As a digital input it senses contact closures or logic level signals; as an analogue input it senses changes in resistance or DC voltage level.

Which devices can connect to the DIN-IO8?

Crestron lists motion detectors, partition sensors, alarm panels, 12 V triggers and all types of switches and relays as sources for its digital inputs. The analogue inputs can work with devices that vary a resistance or DC voltage level.

Which control systems does it work with?

It communicates with a DIN-AP4 4-Series DIN Rail Control System, or any other Crestron 4-Series control system, via the Cresnet control network. Its functions are fully programmable through the control system.

How is the module powered and mounted?

It is powered by the Cresnet network, which also carries its communications, and a pair of Cresnet ports allows daisy-chaining. The module is 6M wide and snaps onto a standard DIN rail in a wall mount enclosure or on a wall panel.

How much is the Crestron DIN-IO8?

Crestron asks its dealers to give the price of the DIN-IO8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the DIN-IO8?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-IO8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the DIN-IO8 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-IO8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the DIN-IO8 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the DIN-IO8 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
