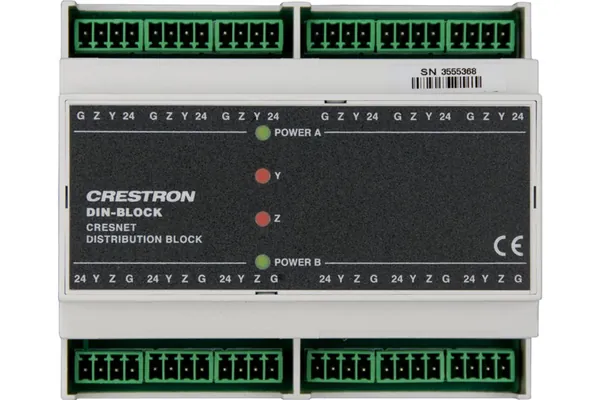

Crestron DIN-BLOCK 12 Port DIN Rail Cresnet Distribution Block

It is a DIN rail mounted Cresnet distribution block with 12 ports. It provides a termination point for Cresnet wiring at a head end or distribution point, connecting up to 12 separate Cresnet cables in parallel, and it fits alongside Crestron DIN Rail lighting and automation control modules.

No. It is a passive device and no programming is required. It connects up to 12 Cresnet cables in parallel, and its diagnostic LEDs show whether Cresnet network power and data are present.

Cresnet carries 24 VDC for powering connected devices as well as data. The DIN-BLOCK arranges its Cresnet ports into two separate power groups, so a separate power supply can be dedicated to each group, or a single supply can be connected. This makes it easier to manage power across a complete Cresnet network.

It terminates Cresnet, the flexible 4-wire bus, on detachable screw terminal blocks. Cresnet allows combinations of home run and daisy-chain wiring, and the block connects up to 12 separate cables in parallel. The terminals sit along the top and bottom and are accessible from the front.

It is 6M wide and snaps onto a standard DIN rail for installation in a wall mount enclosure, or it can be mounted on a wall panel. This allows modular installation alongside Crestron DIN Rail lighting and automation modules and other third-party DIN rail devices.

Crestron asks its dealers to give the price of the DIN-BLOCK directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-BLOCK on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-BLOCK develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
