Crestron part number CL-SPACEBUILDER-CAEN-MLO

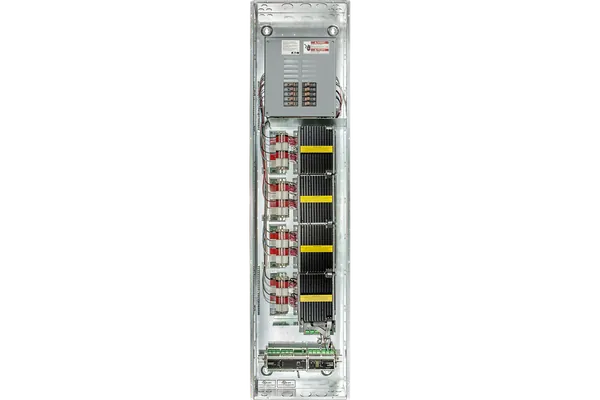

The Crestron CL-SPACEBUILDER-CAEN-MLO is a SpaceBuilder main-lug only (MLO) lighting control cabinet, configured to order, with flexible load types and control of up to 32 lighting zones. It suits spaces without accessible ceilings, such as auditoriums, warehouses, sports venues and large car parks.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron CL-SPACEBUILDER-CAEN-MLO
Modules fit a CAEN-5X1-MLO-120/3P enclosure with up to 5 module spaces, on a 3-phase 120/208 VAC supply. Dimming covers 2-wire forward phase, 2-wire universal phase and 4-wire 0-10 V, and all analogue dimming loads are supported. The GL-CAEN-2DIM8 KIT feeds four 1,920 W (15 A) zones from two 20 A inputs, and the GL-CAEN-4HSW4 KIT switches four 16 A zones from four 20 A inputs, with a 64 A maximum.
The cabinet takes 20 A, GFCI or AFCI breakers from the Eaton CHF series, rated at 10 kAIC. The processor module pairs a DIN-AP4 4-Series control engine with a DIN-PWS60 power supply on DIN rail, and the DIN-AP4 supports astronomical time-clock control, 40 Cresnet control devices and 50 BACnet/IP points. A DIN-CENCN-2-POE Ethernet to Cresnet bridge adds scalability, and emergency or life safety zones can be configured.
The NEMA 1 metal enclosure is suitable for plenum air-handling spaces and measures 1,594 mm high, 409 mm wide and 127 mm deep. The operating range is 0 to 40°C at 10% to 90% humidity, non-condensing. The individual components can also be ordered separately, which helps when a single module needs replacing.
Key features
- Controls up to 32 lighting zones
- Main-lug only cabinet with flexible load types
- CAEN-5X1-MLO-120/3P enclosure with up to 5 module spaces
- 2-wire forward phase, 2-wire universal phase or 4-wire 0-10 V dimming
- Multizone switching with the GL-CAEN-4HSW4 KIT
- 20 A, GFCI or AFCI breakers rated at 10 kAIC
- DIN-AP4 4-Series processor with astronomical time clock
- 3-phase 120/208 VAC supply
CL-SPACEBUILDER-CAEN-MLO specifications
| Lighting zones | Up to 32 |
|---|---|
| Enclosure | CAEN-5X1-MLO-120/3P, up to 5 module spaces; NEMA 1 metal, suitable for plenum air-handling spaces |
| Dimming modules | GL-CAEN-2DIM8 KIT, GL-CAEN-2DIMFLV8 KIT, GL-CAEN-2DIMU8 KIT |
| Switching module | GL-CAEN-4HSW4 KIT: four 20 A inputs, four 16 A zones, 64 A maximum |
| Processor | DIN-AP4 4-Series control engine with DIN-PWS60; astronomical time clock, 40 Cresnet devices, 50 BACnet/IP points |
| Ethernet uplink | DIN-CENCN-2-POE Ethernet to Cresnet bridge with DIN-PWS60 |
| Breakers | 20 A, GFCI or AFCI; 10 kAIC rated; Eaton CHF series |
| Supply | 3-phase 120/208 VAC |
| Operating environment | 0 to 40°C, 10% to 90% RH non-condensing |
| Dimensions | Height 1,594 mm (62.75 in), width 409 mm (16.10 in), depth 127 mm (4.98 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| CL-SPACEBUILDER-CAEN-MLO | Standard | On request |
Where the CL-SPACEBUILDER-CAEN-MLO is used
Works with the CL-SPACEBUILDER-CAEN-MLO
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron CL-SPACEBUILDER-CAEN-MLO
What is the Crestron CL-SPACEBUILDER-CAEN-MLO?
It is a SpaceBuilder lighting control system supplied as a configured main-lug only (MLO) cabinet with flexible load types. It controls up to 32 lighting zones and is aimed at spaces without accessible ceilings, such as auditoriums, warehouses, sports venues and large car parks.
What breakers does the CL-SPACEBUILDER-CAEN-MLO use?
Crestron lists 20 A, GFCI or AFCI breakers from the Eaton CHF series, rated at 10 kAIC. The cabinet runs on a 3-phase 120/208 VAC supply and uses a CAEN-5X1-MLO-120/3P enclosure with up to 5 module spaces.
Which dimming and switching modules can be fitted?
Dimming modules are the GL-CAEN-2DIM8 KIT, GL-CAEN-2DIMFLV8 KIT and GL-CAEN-2DIMU8 KIT, covering 2-wire forward phase, 2-wire universal phase and 4-wire 0-10 V dimming. The GL-CAEN-4HSW4 KIT handles switching, with four 20 A inputs supporting four 16 A zones.
What does the DIN-AP4 processor do in this system?
The DIN-AP4 is a Crestron 4-Series control engine that controls the connected modules. It supports astronomical time-clock control, 40 Cresnet control devices and 50 BACnet/IP points, and it is mounted on DIN rail with a DIN-PWS60 power supply.
How big is the CL-SPACEBUILDER-CAEN-MLO cabinet?
The enclosure measures 1,594 mm (62.75 in) high, 409 mm (16.10 in) wide and 127 mm (4.98 in) deep. It is a NEMA 1 metal enclosure suitable for plenum air-handling spaces, rated for 0 to 40°C and 10% to 90% relative humidity.
How much is the Crestron CL-SPACEBUILDER-CAEN-MLO?
Crestron asks its dealers to give the price of the CL-SPACEBUILDER-CAEN-MLO directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the CL-SPACEBUILDER-CAEN-MLO?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CL-SPACEBUILDER-CAEN-MLO on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the CL-SPACEBUILDER-CAEN-MLO come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CL-SPACEBUILDER-CAEN-MLO develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the CL-SPACEBUILDER-CAEN-MLO in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the CL-SPACEBUILDER-CAEN-MLO without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
