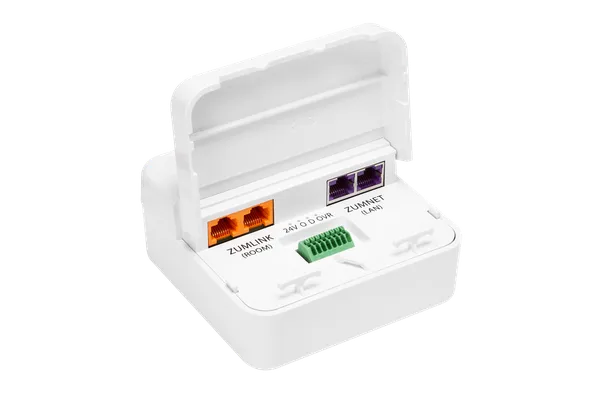

Crestron ZUMNET-JBOX-DALI Zum Wired J-Box DALI-2 Lighting Controller

It is a Zum wired lighting controller for DALI drivers that mounts to a junction box. It is DALI-2 certified, controls up to 64 DALI compatible drivers with 16 DALI groups, and connects to Zum Net devices for network expansion and to Zum Link devices for in-room control.

Up to 64 DALI compatible drivers, with 16 DALI groups. It works with DALI compliant dimmable LED or fluorescent loads, and its DALI bus power supply is rated 0.23A maximum and 0.17A guaranteed. It is DALI-2 certified and IEC 62386 compliant.

It mounts to the side of a standard 4 in. square junction box through a 1/2 in. conduit knockout, and Crestron states it meets the requirements of UL 2043. The white plastic housing is UL 94 5VA flame rated and measures 123 mm high, 108 mm wide and 52 mm deep.

Two ZUMNET (LAN) RJ-45 ports take the control system or Zum Net connection and daisy-chain further Zum Net devices, and two ZUMLINK (ROOM) RJ-45 ports daisy-chain in-room Zum Link devices, supplying 85mA for them. It connects over Ethernet to a ZUM-HUB4 control system and integrates with Zum keypads and sensors, all sold separately.

It is wired with flying leads: black for line, white for neutral and red for the AC power output, all 14 AWG Class 1, plus a purple 18 AWG lead for DALI positive (DA+) and a grey lead for DALI negative (DA-), both low voltage.

Crestron asks its dealers to give the price of the ZUMNET-JBOX-DALI directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMNET-JBOX-DALI on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMNET-JBOX-DALI develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
