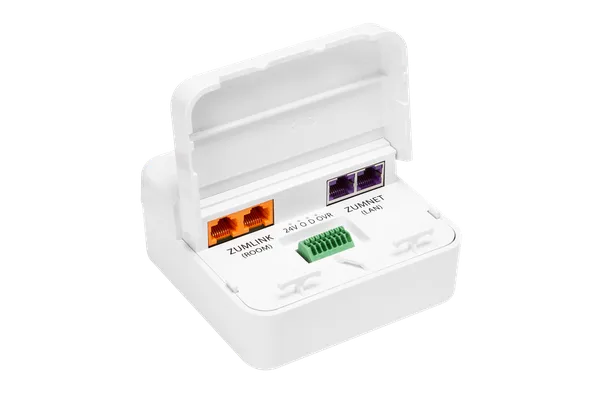

Crestron ZUMNET-JBOX-16A-LV Zum J-Box 0-10V Load Controller, 16A

It is a Zum wired load controller that mounts to a junction box. It provides 0-10V dimming for LED drivers or 4-wire fluorescent ballasts and zero cross switching of loads up to 16A at 100-277V AC, with Zum Net communication for network expansion and Zum Link for in-room control.

The load rating is 16A at 100-277V AC, 50/60 Hz, and 0.5 HP at 120-277V AC. Crestron lists LED, electronic ballasts, incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, high-intensity discharge and small motor loads, and zero cross switching is provided for high inrush lighting loads.

It mounts to the side of a standard 4 in. square junction box through a 1/2 in. conduit knockout, and Crestron states it meets the requirements of UL 2043. The white plastic housing is UL 94 5VA flame rated and measures 123 mm high, 108 mm wide and 52 mm deep.

Two ZUMNET (LAN) RJ-45 ports take the control system or Zum Net connection and daisy-chain further Zum Net devices. Two ZUMLINK (ROOM) RJ-45 ports daisy-chain in-room Zum Link devices and supply 85mA for them, including ZUMLINK-KP keypads. It integrates with Zum keypads and occupancy, vacancy and daylight sensors, and connects over Ethernet to a ZUM-HUB4 control system, all sold separately.

Pressing TEST toggles the switched load output on and off, and pressing and holding it cycles the dimming level. Bi-colour ZUMLINK and ZUMNET status LEDs light green in normal operation and red when a fault is detected. There are also LEDs marked 24V, O, D and OVR.

Crestron asks its dealers to give the price of the ZUMNET-JBOX-16A-LV directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMNET-JBOX-16A-LV on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMNET-JBOX-16A-LV develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
