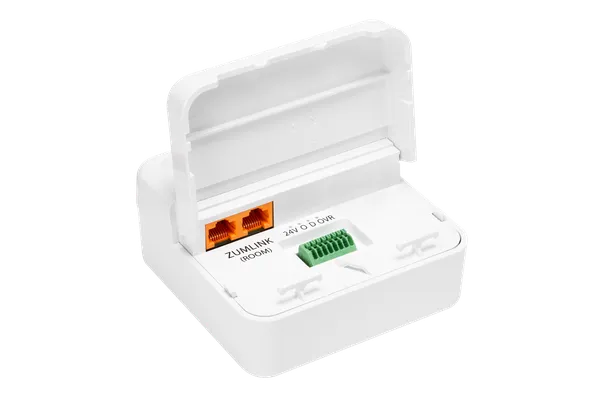

Crestron ZUMLINK-JBOX-20A-PLUG 20A Plug Load Switch J-Box Controller

It is a Zūm wired J-Box load controller with a plug load switch and Zūm Link communication. It mounts on a 4 in. square junction box and uses zero cross switching to control 20A plug loads, such as controlled receptacles, as well as high inrush lighting loads at 100-277V.

Both are 20A, 100-277V Zūm wired J-Box controllers with zero cross switching, the same inputs and the same housing. The ZUMLINK-JBOX-20A-PLUG is the plug load switch, and its listed load types include controlled receptacles. The ZUMLINK-JBOX-20A-SW is the high inrush switch for lighting loads.

Crestron lists controlled receptacles, LED, electronic drivers, incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode and high-intensity discharge loads. The rating is 20A at 100-277VAC, 50/60 Hz, with high inrush zero-cross switching, and 0.5 HP at 120-277VAC.

It has two RJ-45 Zūm Link ports for daisy-chaining with other Zūm wired devices and supplies 85mA to Zūm Link devices such as ZUMLINK-KP keypads. Spring clamp inputs accept an occupancy sensor, a photo sensor and an override contact. Line, neutral and power monitoring connections are 14 AWG flying leads.

It fixes to the side of a standard 4 in. square junction box through a 1/2 in. conduit knockout. The white plastic housing is UL 94 5VA flame rated and meets UL 2043 requirements. It measures 123 mm high, 108 mm wide and 52 mm deep and weighs 199 g (7 oz).

Crestron asks its dealers to give the price of the ZUMLINK-JBOX-20A-PLUG directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMLINK-JBOX-20A-PLUG on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMLINK-JBOX-20A-PLUG develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
