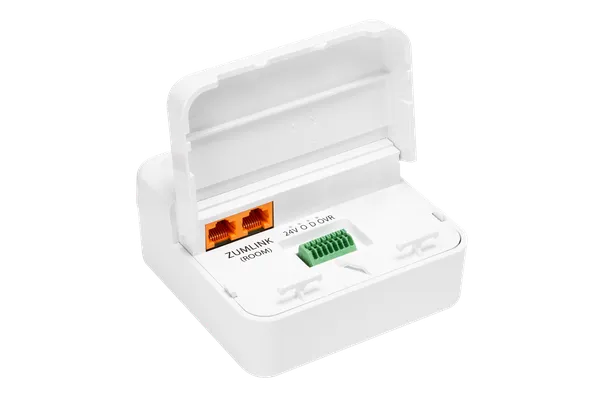

Crestron ZUMLINK-JBOX-20A High Inrush Switch J-Box Load Controller

It is a Zūm wired J-Box load controller with a high inrush switch and Zūm Link communication. It mounts on a 4 in. square junction box and uses zero cross switching to control lighting loads of up to 20A at 100-277V, working with Zūm keypads and sensors in the same room.

No, it is a switching controller and has no 0-10V dimming leads; its connections are line, neutral and a power monitoring output. For 0-10V dimming, the ZUMLINK-JBOX-16A-LV adds a 0-10V output alongside 16A switching, and the ZUMLINK-JBOX-20A-PLUG is the 20A version for plug loads.

It is rated 20A at 100-277VAC, 50/60 Hz, for high inrush loads with zero-cross switching, and 0.5 HP at 120-277VAC. Load types include LED, electronic ballasts, incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode and high-intensity discharge lighting.

Two RJ-45 Zūm Link ports daisy-chain it with other Zūm wired devices, and it supplies 85mA to Zūm Link devices such as ZUMLINK-KP keypads. Spring clamp inputs accept an occupancy sensor, a photo sensor and an override contact, each terminal taking one 20-24 AWG solid wire. Sensors and keypads are sold separately.

The controller fixes to the side of a standard 4 in. square junction box using a 1/2 in. conduit knockout. Its white plastic housing carries a UL 94 5VA flame rating and meets UL 2043 requirements. It measures 123 mm high, 108 mm wide and 52 mm deep, and weighs 199 g (7 oz).

Crestron asks its dealers to give the price of the ZUMLINK-JBOX-20A directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMLINK-JBOX-20A on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMLINK-JBOX-20A develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
