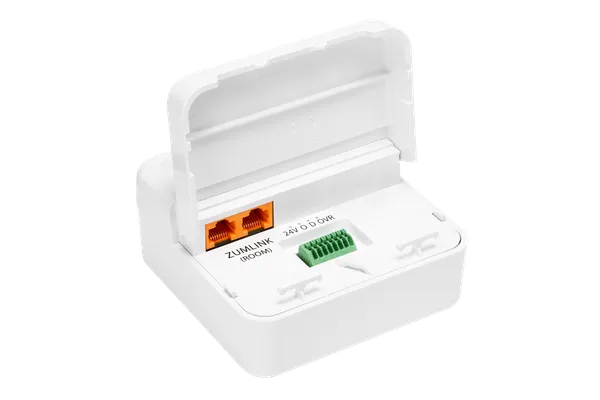

Crestron ZUMLINK-JBOX-16A-LV 16A 0-10V Dimmer J-Box Load Controller

It is a Zūm wired J-Box load controller with Zūm Link communication. It provides zero cross switching of up to 16A at 100-277V for high inrush lighting loads, plus a 0-10V dimming output, so one unit can switch and dim a circuit of 0-10V LED drivers or 4-wire fluorescent ballasts.

Dimming uses a 0-10VDC output that can sink or source up to 60mA, for 0-10V LED drivers or 4-wire electronic ballasts. The switched output is rated 16A at 100-277VAC, or 0.5 HP at 120-277VAC, and handles LED, electronic ballasts, incandescent, magnetic and electronic low-voltage, neon/cold cathode and high-intensity discharge loads.

Yes. It has spring clamp inputs for an occupancy sensor, a photo sensor and an override contact, and two RJ-45 Zūm Link ports for daisy-chaining with other Zūm wired devices. It supplies 85mA of power for Zūm Link devices, including ZUMLINK-KP keypads. Keypads and sensors are sold separately.

Line, neutral and a power monitoring output are on 14 AWG flying leads coloured black, white and red. The 0-10V dimming output uses 18 AWG purple (positive) and pink (negative) leads. The sensor and override inputs use spring clamp connectors that each take one 20-24 AWG solid wire, and Zūm Link uses two RJ-45 ports.

It mounts to the side of a standard 4 in. square junction box through a 1/2 in. conduit knockout. The white plastic housing is UL 94 5VA flame rated and meets the requirements of UL 2043. It measures 123 mm high, 108 mm wide and 52 mm deep, and operates from 0° to 40°C.

Crestron asks its dealers to give the price of the ZUMLINK-JBOX-16A-LV directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMLINK-JBOX-16A-LV on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMLINK-JBOX-16A-LV develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
