Crestron ZUML-CENCN-SWPOE-5 Zum Lighting Network Expansion Panel

It is a preassembled lighting network expansion panel for Crestron lighting systems. It expands Ethernet and Cresnet network connectivity and comes with an Ethernet to Cresnet bridge, a 60 W Cresnet power supply and a 5-port PoE switch already mounted in a wall mount enclosure.

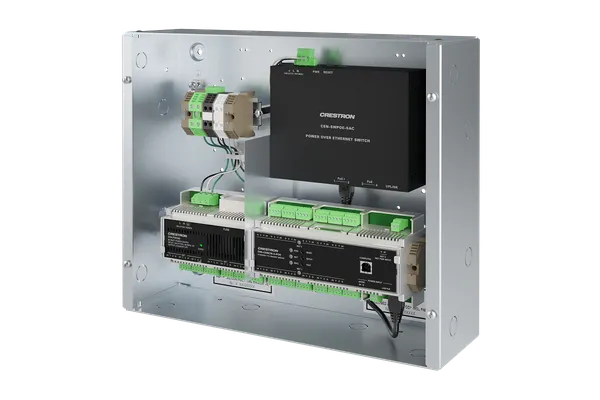

The panel contains a DIN-CENCN-2-POE Ethernet to Cresnet Bridge, a DIN-PWS60 60 Watt Cresnet Power Supply and a CEN-SWPOE-5AC 5-Port PoE Switch, all mounted in a DIN-EN-2X18 wall mount enclosure. Crestron notes that the individual components may also be ordered.

Crestron specifies main power of 100 to 277 V for the panel. The DIN-PWS60 inside is a 60 W Cresnet power supply for the lighting network, and the panel is rated for 5° to 40°C (41° to 104°F) with 10% to 90% RH, non-condensing.

The enclosure measures 312 mm (12.30 in) high, 359 mm (14.13 in) wide and 111 mm (4.37 in) deep. It is a DIN-EN-2X18 wall mount enclosure, so allow wall space of that size where the panel will be fitted.

Crestron notes that the individual components may also be ordered, so the DIN-CENCN-2-POE, DIN-PWS60 and CEN-SWPOE-5AC each have their own part numbers. If one part in an existing panel fails, check the part number on that unit before ordering a replacement.

Crestron asks its dealers to give the price of the ZUML-CENCN-SWPOE-5 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUML-CENCN-SWPOE-5 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUML-CENCN-SWPOE-5 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
