Crestron ULTIMATE IC8 8 in. All Weather In-Ceiling Speaker

Crestron part number ULTIMATE IC8-AW-W-T-EACH

The Crestron ULTIMATE IC8 is a 2-way, 8 in. all weather in-ceiling speaker from the Crestron Ultimate range, made by Origin Acoustics for demanding residential systems. It pairs a carbon fibre woofer with a steerable tweeter, carries an IP66 rating and fixes with a toolless twist and lock bayonet system.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

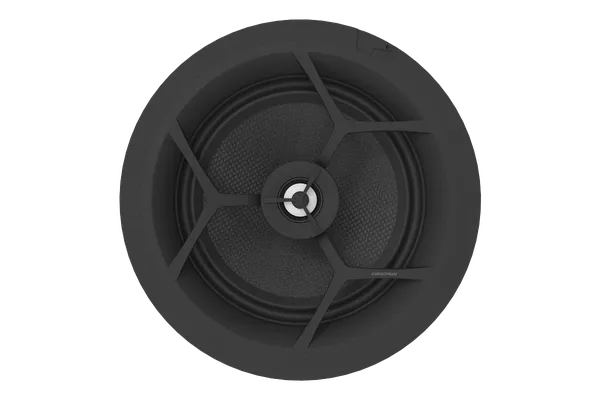

Crestron ULTIMATE IC8 Ultimate 8 in. 2-Way All Weather In-Ceiling Speaker, White Textured, Single

About the Crestron ULTIMATE IC8

An 8 in. (203 mm) carbon fibre woofer is paired with a 1 in. (25 mm) ceramic-coated aluminium tweeter that steers up to 30° off-axis. With a 3.5 kHz crossover at 30 dB/oct, response runs from 45 Hz to 30 kHz (±3 dB), extending to 35 Hz at ±10 dB. Power handling is 150 W programme and 300 W peak, with 86 dB sensitivity and 8 ohms nominal impedance.

It is IP66 rated for particles and water and specified from -15.5° to 80°C, with a glass fibre reinforced ABS baffle. The grille is electroplated and powder coated steel with a magnetically held bezel and can be painted, and there are several grille options. A twist and lock toolless bayonet system holds the speaker and is designed to minimise interference with other elements in the ceiling.

The recommended cutout is 222 mm (8.75 in.), the same as the ULTIMATE IC6, and Crestron notes that Ultimate and Reference IC6 and IC8 speakers are interchangeable for that reason. The speaker is 244 mm across without the grille, 118 mm deep without the bayonet ring (up to 135 mm with it) and weighs 2.26 kg. Wiring uses a detachable 2-pin terminal block taking up to 12 AWG. It is covered under the Crestron standard limited warranty.

Key features

8 in. carbon fibre woofer
1 in. ceramic-coated aluminium tweeter, steerable up to 30°
IP66 rated for particles and water
150 W programme, 300 W peak power handling
45 Hz to 30 kHz (±3 dB) response
Twist and lock toolless bayonet mounting
Paintable, magnetically held grille
Same 222 mm cutout as the Ultimate IC6

ULTIMATE IC8 specifications

Drivers	8 in. (203 mm) carbon fibre woofer; 1 in. (25 mm) ceramic-coated aluminium tweeter, steerable up to 30° off-axis
Crossover	3.5 kHz; 30 dB/oct
Frequency	45 Hz to 30 kHz (±3 dB); 35 Hz to 30 kHz (±10 dB)
Power handling	150 W programme; 300 W peak
Impedance and sensitivity	8 ohms nominal; 86 dB at 1 W/1 m
Input	2-pin detachable terminal block, 5.08 mm pitch, 10 A; up to 12 AWG (3.31 mm²)
Environment	IP66 for particles and water; -15.5° to 80°C; 10% to 90% RH, non-condensing
Construction	Glass fibre reinforced ABS baffle; electroplated and powder coated steel grille, paintable, magnetic bezel
Mounting and cutout	Toolless bayonet mounting; recommended cutout 222 mm (8.75 in.)
Dimensions and weight	244 mm diameter without grille; round grille 259 mm; depth 118 mm (up to 135 mm with bayonet ring); 2.26 kg

Part numbers on this page

Part number	Version	Price	Add
ULTIMATE IC8-AW-W-T-EACH	White textured, single	On request

Where the ULTIMATE IC8 is used

Demanding residential audio installations
Rooms that need IP66 rated ceiling speakers
Upgrading an IC6 position to an IC8 in the same cutout
Replacing an existing Ultimate or Reference IC8

Works with the ULTIMATE IC8

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron ULTIMATE IC8

What is the Crestron ULTIMATE IC8?

It is an 8 in. 2-way all weather in-ceiling speaker from the Crestron Ultimate range, made by Origin Acoustics. It combines a carbon fibre woofer with a steerable ceramic-coated aluminium tweeter, is IP66 rated and mounts with a toolless bayonet system. This page covers the white textured version, sold singly.

Is the ULTIMATE IC8 interchangeable with the IC6?

Yes. Crestron notes that the Ultimate and Reference IC6 and IC8 speakers are interchangeable because they share the same cutout diameter. The ULTIMATE IC8 has a recommended cutout of 222 mm (8.75 in.), so it can take the place of an IC6 from either range in an existing opening.

What is the frequency response of the ULTIMATE IC8?

Response is 45 Hz to 30 kHz (±3 dB), with a wider range of 35 Hz to 30 kHz at ±10 dB. The 8 in. woofer and 1 in. tweeter cross over at 3.5 kHz with a 30 dB/oct slope, and sensitivity is 86 dB at 1 W/1 m.

How much power can the speaker handle?

Power handling is 150 W programme and 300 W peak, at 8 ohms nominal impedance. Wiring connects to a detachable 2-pin terminal block with 5.08 mm pitch, rated 10 A, that accepts cable up to 12 AWG (3.31 mm²).

What size is the speaker and how deep is it?

It is 244 mm in diameter without the grille, and the round grille is 259 mm. Depth is 118 mm without the bayonet ring and up to 135 mm with it, and it weighs 2.26 kg. It is IP66 rated and specified from -15.5° to 80°C.

How much is the Crestron ULTIMATE IC8?

Crestron asks its dealers to give the price of the ULTIMATE IC8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the ULTIMATE IC8?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ULTIMATE IC8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the ULTIMATE IC8 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ULTIMATE IC8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the ULTIMATE IC8 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the ULTIMATE IC8 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
