Crestron part number SAROS IC6ULPT-W-T-EACH+

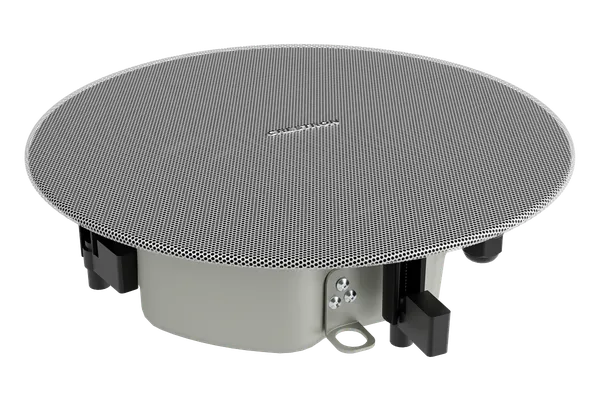

The Crestron SAROS IC6ULPT is an ultra low profile 2-way in-ceiling speaker that needs only 2.4 in. (61 mm) of mounting depth. It combines a 4 in. woofer and titanium dome tweeter with a built-in 30 W 70/100V transformer, so it suits both distributed and 8 Ω systems in tight ceiling spaces.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron SAROS IC6ULPT
Saros low profile models are an alternative to the full-sized Saros speakers for ceilings with little depth. The IC6ULPT uses a 4 in. (102 mm) polypropylene woofer with a ring mode decoupled cloth surround and steel basket, and a 0.98 in. (25 mm) titanium dome tweeter, crossing over at 2.5 kHz. Frequency response is 120 Hz to 20 kHz (±3 dB), sensitivity is 85 dB at 1 W/1 m and maximum SPL is 100 dB.
A recessed rotary switch on the baffle selects the transformer tap with a screwdriver: 3.75, 7.5, 15 or 30 W at 70V, 7.5, 15 or 30 W at 100V, or 8 Ω, where power handling is 35 W programme. Wiring enters through a gland nut with two pigtails and four watertight wire nuts, with a parallel pass-through and wire up to 12 AWG (3.31 mm²). Coverage is 150° for speech and 140° for music.
The zinc-plated steel enclosure is plenum-rated and the speaker is IPX5 rated for splash resistance. Four two-step swivelling dogs clamp it into ceilings up to 1 in. (25 mm) thick, and a tile bridge is included for drop-tile ceilings. The steel grille is frameless, magnetically held, paintable and tethered. The speaker is 10.63 in. (270 mm) across, 2.43 in. (62 mm) deep and weighs 4.5 lb (2.04 kg). It is sold singly but must be ordered in multiples of 2.
Key features
- Ultra low profile: needs only 2.4 in. (61 mm) mounting depth
- 4 in. polypropylene woofer and 0.98 in. titanium dome tweeter
- Built-in 30 W 70/100V multi-tap transformer, or 8 Ω operation
- 35 W programme power handling at 8 Ω
- IPX5 rated for splash resistance
- 150° coverage for speech, 140° for music
- Zero-bezel frameless grille, paintable and magnetically held
- Two-step swivelling dog mounting with tile bridge included
SAROS IC6ULPT specifications
| Drivers | 4 in. (102 mm) polypropylene woofer; 0.98 in. (25 mm) titanium dome tweeter; 2.5 kHz crossover |
|---|---|
| Frequency response | 120 Hz to 20 kHz (±3 dB); range 100 Hz to 20 kHz (±10 dB) |
| Sensitivity and SPL | 85 dB @ 1 W/1 m; 100 dB maximum SPL |
| Power handling | 35 W programme (8 Ω) |
| Transformer taps | 3.75 W, 7.5 W, 15 W, 30 W at 70V; 7.5 W, 15 W, 30 W at 100V; 8 Ω setting |
| Coverage | 150° conical (speech); 140° conical (music) |
| Connections | Gland nut with 2 wire pigtails, parallel pass-through, 4 watertight wire nuts; 12 AWG (3.31 mm²) maximum |
| Environment | IPX5; -2° to 120°F (-19° to 49°C); 5% to 95% RH non-condensing |
| Construction and mounting | Plenum-rated zinc-plated steel enclosure; 4 two-step swivelling dogs; 1 in. (25 mm) maximum ceiling thickness; 2.4 in. minimum mounting depth; tile bridge included |
| Dimensions and weight | 10.63 in. (270 mm) diameter without dogs; 2.43 in. (62 mm) deep; 4.5 lb (2.04 kg) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| SAROS IC6ULPT-W-T-EACH+ | White textured, single | On request |
Where the SAROS IC6ULPT is used
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron SAROS IC6ULPT
What is the Crestron SAROS IC6ULPT?
It is a Saros ultra low profile 2-way in-ceiling speaker for ceiling spaces as shallow as 2.4 in. (61 mm). It has a 4 in. polypropylene woofer, a titanium dome tweeter and a built-in 30 W 70/100V multi-tap transformer, and handles 35 W programme at 8 Ω.
How much ceiling depth does the SAROS IC6ULPT need?
Crestron specifies a minimum mounting depth of 2.4 in. The speaker itself is 2.43 in. (62 mm) deep and 10.63 in. (270 mm) in diameter, not including the mounting dogs, and the dogs clamp ceilings up to 1 in. (25 mm) thick.
Can the SAROS IC6ULPT be used on a 70V or 100V system?
Yes. A built-in multi-tap transformer offers 3.75, 7.5, 15 and 30 W taps at 70V and 7.5, 15 and 30 W taps at 100V. A recessed rotary switch on the baffle selects the tap or the 8 Ω setting with a screwdriver.
What drivers does it use?
Crestron lists the SAROS IC6ULPT as a 6 in. ultra low profile model. Inside, it uses a 4 in. (102 mm) polypropylene woofer with a ring mode decoupled cloth surround and steel basket, plus a 0.98 in. (25 mm) titanium dome tweeter, crossing over at 2.5 kHz.
How water resistant is it?
It is IPX5 rated for splash resistance, and the operating range is -2° to 120°F (-19° to 49°C) at 5% to 95% RH, non-condensing. The enclosure is plenum-rated zinc-plated steel, and the input uses a gland nut with four watertight wire nuts.
How much is the Crestron SAROS IC6ULPT?
Crestron asks its dealers to give the price of the SAROS IC6ULPT directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the SAROS IC6ULPT?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the SAROS IC6ULPT on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the SAROS IC6ULPT come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the SAROS IC6ULPT develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the SAROS IC6ULPT in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the SAROS IC6ULPT without installation?
Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
