Crestron REFERENCE IC8 8 in. 2-Way In-Ceiling Speaker

Crestron part number REFERENCE IC8-W-T-EACH

The Crestron REFERENCE IC8 is the 8 in. 2-way in-ceiling speaker in the Reference range, built by Origin Acoustics for luxury residential projects. It has an 8 in. woven glass fibre woofer and a response down to 55 Hz (±3 dB), and it fits with a toolless twist and lock bayonet mount.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

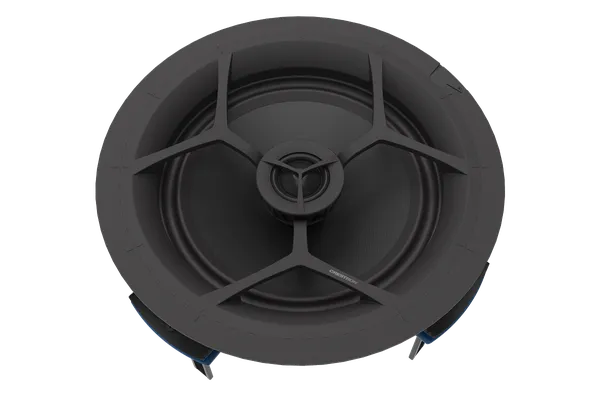

Crestron REFERENCE IC8 Reference 8 in. 2-Way In-Ceiling Speaker, White Textured, Single

About the Crestron REFERENCE IC8

Inside, an 8 in. (203 mm) woven glass fibre woofer works with a 1 in. (25 mm) Silk DPSD tweeter, which can be steered up to 30° off-axis. The two drivers cross over at 3 kHz with a 30 dB/oct slope. Response is 55 Hz to 20 kHz (±3 dB), and the frequency range extends from 39 Hz to 20 kHz at ±10 dB. Sensitivity is 87 dB at 1 W/1 m into 8 Ohms nominal.

The speaker handles 100 W programme and 200 W peak. Two gold-plated spring terminals accept speaker wire up to 10 AWG (6 mm²). A glass fibre reinforced ABS baffle carries a paintable grille made from electroplated and powder coated steel, held on by a magnetic bezel, and Crestron lists various grille options. It is specified for indoor use only.

Mounting depth is 4.09 in. (104 mm) without the bayonet ring and up to 5.31 in. (135 mm) with it. The recommended cutout is 8.75 in. (222 mm), which Crestron says is shared by the Ultimate and Reference IC6 and IC8 speakers, making them interchangeable. The speaker weighs 3.3 lb (1.49 kg), and each part number is a single white textured unit.

Key features

8 in. (203 mm) woven glass fibre woofer
1 in. (25 mm) Silk DPSD tweeter, steerable up to 30° off-axis
55 Hz to 20 kHz (±3 dB) frequency response
100 W programme and 200 W peak power handling, 8 Ohms nominal
Twist and lock toolless bayonet mounting system
4.09 in. (104 mm) depth without the bayonet ring
Paintable, magnetically held steel grille, with various grille options
Same cutout diameter as the Ultimate and Reference IC6 and IC8

REFERENCE IC8 specifications

Drivers	8 in. (203 mm) woven glass fibre woofer; 1 in. (25 mm) Silk DPSD tweeter, steerable up to 30° off-axis
Crossover	3 kHz, 30 dB/oct slope
Frequency response	55 Hz to 20 kHz (±3 dB); range 39 Hz to 20 kHz (±10 dB)
Impedance and sensitivity	8 Ohms nominal; 87 dB @ 1 W/1 m
Power handling	100 W programme; 200 W peak
Connections	2 gold-plated spring terminals; maximum wire size 10 AWG (6 mm²)
Construction	Glass fibre reinforced ABS baffle; electroplated and powder coated steel grille, paintable, magnetically held bezel
Mounting	Toolless twist and lock bayonet system; recommended cutout diameter 8.75 in. (222 mm)
Dimensions and weight	Diameter 9.61 in. (244 mm) without grille; round grille 10.20 in. (259 mm); depth 4.09 in. (104 mm), up to 5.31 in. (135 mm) with bayonet ring; 3.3 lb (1.49 kg)
Environment	Indoor use only; 4° to 176°F (-15.5° to 80°C); 10% to 90% RH non-condensing

Part numbers on this page

Part number	Version	Price	Add
REFERENCE IC8-W-T-EACH	White textured, single	On request

Where the REFERENCE IC8 is used

Luxury residential audio systems
Replacing a failed REFERENCE IC8 in an existing ceiling
Reusing an Ultimate or Reference IC6 or IC8 cutout
Ceilings where the grille needs painting to match

Works with the REFERENCE IC8

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron REFERENCE IC8

What is the Crestron REFERENCE IC8?

It is an 8 in. 2-way in-ceiling speaker from Crestron's Reference range, made by Origin Acoustics for luxury residential projects. It uses an 8 in. woven glass fibre woofer and a 1 in. Silk DPSD steerable tweeter, with a frequency response of 55 Hz to 20 kHz (±3 dB).

How does the REFERENCE IC8 differ from the REFERENCE IC6?

The REFERENCE IC8 has an 8 in. (203 mm) woofer where the IC6 has a 6.5 in. (165 mm) one. The IC8's response goes down to 55 Hz (±3 dB) against 60 Hz for the IC6, and it is deeper at 4.09 in. (104 mm) without the bayonet ring. Both share an 8.75 in. (222 mm) cutout.

Can the REFERENCE IC8 go into an existing IC6 or Ultimate speaker cutout?

Yes, according to Crestron. The Ultimate and Reference IC6 and IC8 speakers share the same cutout diameter, so they are interchangeable. The recommended cutout is 8.75 in. (222 mm). Allow for the depth as well: 4.09 in. (104 mm) without the bayonet ring, or up to 5.31 in. (135 mm) with it.

What power handling and impedance does it have?

It is rated at 8 Ohms nominal and handles 100 W programme and 200 W peak. Sensitivity is 87 dB at 1 W/1 m. Speaker wire connects to two gold-plated spring terminals, which accept wire up to 10 AWG (6 mm²).

Is the grille paintable, and is it suitable for outdoor use?

The steel grille is electroplated and powder coated, uses a magnetically held bezel and can be painted. Crestron lists various grille options for the model. The speaker is rated for indoor use only, at 10% to 90% RH non-condensing, so it should not be used outside.

How much is the Crestron REFERENCE IC8?

Crestron asks its dealers to give the price of the REFERENCE IC8 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the REFERENCE IC8?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the REFERENCE IC8 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the REFERENCE IC8 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the REFERENCE IC8 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the REFERENCE IC8 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the REFERENCE IC8 without installation?

Yes. We supply Crestron to end users, with or without installation. If you are not sure it suits your system, send us the part numbers you already have and we will check.
