Crestron CCC-110 Collab Compute for Microsoft Teams Rooms

Crestron part number CCC-110-T

The Crestron CCC-110-T is a Collab Compute unit with an Intel Core Ultra 5 processor, built to run Microsoft Teams Rooms software. It is the room computer for a Teams Rooms video conferencing space, supporting up to two displays, four USB video and audio devices and three TS(W)-1080-UC touch screens (sold separately).

€2,242 plus VAT €2,757.66 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

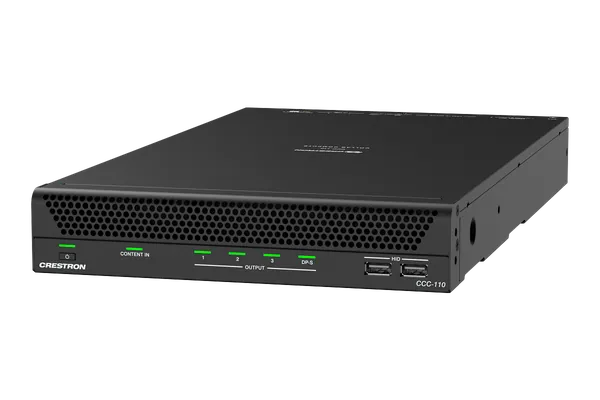

Crestron CCC-110 Collab Compute with the Intel Core Ultra 5 for Microsoft Teams Rooms Software

About the Crestron CCC-110

Inside the fan-cooled black metal chassis is an Intel Core Ultra 5 125H processor with Intel ARC graphics, 32 GB of dual channel DDR5 memory and 256 GB of storage, running Windows 11 Enterprise IoT Edition. Crestron describes it as an AI-ready platform. For Microsoft Teams Rooms it supports single or dual displays, connected through its HDMI 2.0b outputs or the USB Type-C port with DisplayPort Alt Mode.

Cameras, microphones, DSPs and other accessories connect to four rear USB 3 Type-A ports at 10 Gbps, with two front USB 2 ports for a keyboard and mouse during system configuration. A dedicated rear PoE+ port (IEEE 802.3at Type 2, 30 W) connects a TS(W)-1080-UC touch screen for the native Teams Rooms interface. Local content can be shared through the HDMI input or a DM input from a DM Essentials transmitter.

The CCC-110-T is the Microsoft Teams Rooms model. The CCC-110-Z has the same processor for Zoom Rooms, and the CCC-120-T is the Teams version with an Intel Core Ultra 7. Networking covers two 100/1000 Mbps LAN ports, Wi-Fi 7 and Bluetooth 5.4, with XiO Cloud provisioning and management available separately. Power is 100 to 240 VAC, 126 W typical, and the unit stands freely or mounts with the CCCA-CMK-110/120 bracket.

Key features

Intel Core Ultra 5 125H with Intel ARC graphics, 32 GB DDR5 and 256 GB storage
Runs Microsoft Teams Rooms on Windows 11 Enterprise IoT Edition
Single or dual display support
Four rear USB 3 ports at 10 Gbps for cameras, microphones and DSPs
PoE+ port for a TS(W)-1080-UC touch screen (sold separately)
HDMI and DM inputs for wired content, plus BYOD conferencing
Wi-Fi 7 and Bluetooth 5.4
Optional Crestron control system integration and XiO Cloud management

CCC-110 specifications

Processor	Intel Core Ultra 5 125H
Memory and storage	32 GB dual channel DDR5 SODIMM; 256 GB storage
Graphics and OS	Intel ARC; Windows 11 Enterprise IoT Edition
Video outputs	3 x HDMI 2.0b; 1 x USB Type-C 3.2 Gen 2 with DisplayPort Alt Mode (HDCP 2.3, EDID, CEC)
Inputs	1 x HDMI 2.0b content input; 1 x DM input (RJ-45) for a DM Essentials transmitter; HDCP 2.3
USB	4 x USB 3 Type-A 10 Gbps (rear); 2 x USB 2 Type-A (front)
Network	2 x 100/1000 Mbps LAN; 1 x PoE+ PSE port (IEEE 802.3at Type 2, 30 W); Wi-Fi 7 (Intel BE200, 2x2 MIMO); Bluetooth 5.4
Power	100 to 240 VAC; 105 W idle, 126 W typical, 162 W maximum
Mounting	Freestanding, or table or wall with the CCCA-CMK-110/120 bracket (sold separately)
Dimensions	Height 44 mm (1.72 in), width 220 mm (8.67 in), depth 389 mm (15.32 in)

Part numbers on this page

Part number	Version	Price	Add
CCC-110-T	Microsoft Teams Rooms	€2,242 plus VAT €2,757.66 inc VAT

Where the CCC-110 is used

Microsoft Teams Rooms meeting rooms with one or two displays
Huddle spaces and executive offices with a touch screen controller
Rooms where guests share content over HDMI or use their own device
Corporate, university, medical and government estates managed through XiO Cloud

Works with the CCC-110

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron CCC-110

What is the Crestron CCC-110-T?

It is a Crestron Collab Compute unit for Microsoft Teams Rooms software, built around an Intel Core Ultra 5 processor. It acts as the room computer for a Teams Rooms system and supports up to two displays, four USB video and audio devices and up to three TS(W)-1080-UC touch screens, which are sold separately.

What is the difference between the CCC-110-T and the CCC-110-Z?

Both use the Intel Core Ultra 5 125H with the same connections. The CCC-110-T is for Microsoft Teams Rooms and supports single or dual displays, while the CCC-110-Z is for Zoom Rooms software and supports up to three displays. Choose the model that matches the conferencing platform your organisation uses.

What can be connected to the CCC-110-T?

Cameras, microphones, DSPs and accessories plug into four rear USB 3 ports at 10 Gbps. Displays connect to the HDMI 2.0b outputs or the USB Type-C port with DisplayPort Alt Mode. Content can come in over HDMI or from a DM Essentials transmitter on the DM input, and a TS(W)-1080-UC touch screen uses the PoE+ port.

How much power does the CCC-110-T use?

It runs from a 100 to 240 VAC supply and uses 105 W at idle, 126 W typically and 162 W at maximum. The metal chassis is fan cooled with vents at the front and rear, and a push button with a green LED backlight turns the unit on and off.

How is the unit mounted?

It can stand freely, or be fixed to a tabletop or a wall with the CCCA-CMK-110/120 toolless mounting bracket, which is sold separately. The black metal chassis measures 44 mm (1.72 in) high, 220 mm (8.67 in) wide and 389 mm (15.32 in) deep.

How much is the Crestron CCC-110?

Crestron's advertised price for the CCC-110 in Ireland is €2,242 plus VAT, which is €2,757.66 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the CCC-110?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CCC-110 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the CCC-110 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CCC-110 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the CCC-110 in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the CCC-110 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
