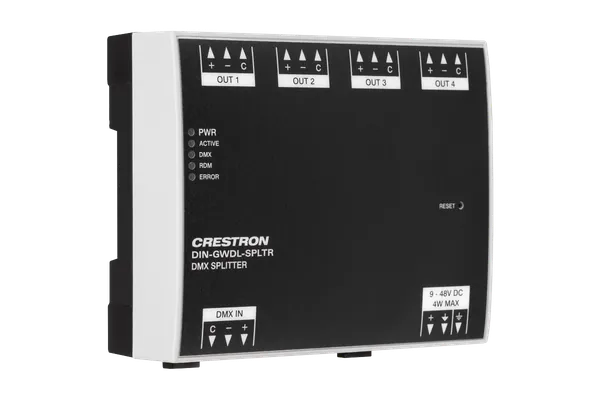

Crestron DIN-GWDL-SPLTR Digital Lighting Splitter, 4 Channel, DIN Rail

It is a four channel digital lighting splitter for DIN rail mounting. It expands the capability of the DIN-GWDL gateway by providing four additional outputs for Crestron light fixtures and Crestron compatible third-party light fixtures, and it is designed exclusively for Crestron Home OS.

Each of its four outputs supports up to 32 directly connected fixtures. With the splitter connected, the DIN-GWDL can support up to 85 Crestron light fixtures and Crestron compatible third-party light fixtures.

The splitter expands the maximum wire run by 1000 ft (305 m) beyond the DIN-GWDL. Its DMX IN connects to the DMX 1 or DMX 2 output of the gateway, and RJ-45 adapters are included for quick wiring with standard CAT5 cable.

It takes 9 to 48 VDC and uses a maximum of 4 W. Crestron lists the PW-2407-RU, PW-2407WUL, DIN-PWS60 and DIN-PWS30-277 power supplies for it, all of which are sold separately.

It fits a 6 unit wide DIN rail enclosure on a 35 mm rail and is rated IP40. It measures 95 mm high, or 143 mm with terminal blocks and RJ-45 adapters, 108 mm wide and 40 mm deep, and weighs 0.2 kg.

Crestron asks its dealers to give the price of the DIN-GWDL-SPLTR directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-GWDL-SPLTR on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-GWDL-SPLTR develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
