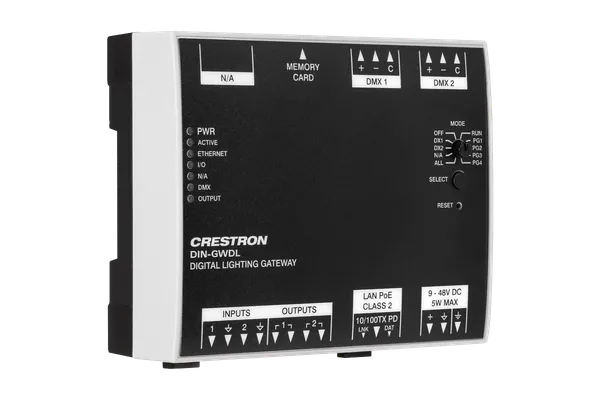

Crestron part number DIN-GWDL
The Crestron DIN-GWDL is a DIN rail gateway that gives a Crestron Home system full control of Crestron light fixtures and Crestron compatible third-party light fixtures. It connects up to 64 DMX-C fixtures directly, or up to 85 with the DIN-GWDL-SPLTR splitter, which is sold separately.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron DIN-GWDL
The gateway is designed exclusively for Crestron Home OS and requires Crestron Home. It is configured with the Crestron Home Setup application, which provides auto-addressing and quick commissioning of the connected fixtures. Two isolated DMX-C outputs share one universe, with up to 32 directly connected fixtures on each, and RJ-45 adapters are included so standard CAT5 cable can be used for quick wiring.
Local control lets all the lights be turned on and off without a control system, and two contact closure inputs are provided. A MODE dial and SELECT button run test modes on the DMX outputs, and LEDs show power, activity, Ethernet, I/O, DMX and output status. The gateway is compatible with Crestron SolarSync sensors and connects over 100BASE-TX Ethernet with static IP or DHCP.
Power is PoE (IEEE 802.3af Class 2, 6.49 W), for example from a CEN-SW-POE-5, or 9 to 48 VDC from a Crestron supply such as the PW-2407-RU, PW-2407WUL, DIN-PWS60 or DIN-PWS30-277, all sold separately. Consumption is 5 W maximum. It is 6 units wide on a 35 mm DIN rail, and a removable microSD card is supplied. Height is 95 mm, or 126 mm with the terminal blocks and RJ-45 adapters fitted.
Key features
- Designed exclusively for Crestron Home OS
- Up to 64 directly connected Crestron and compatible third-party light fixtures
- Expandable to 85 fixtures with the DIN-GWDL-SPLTR (sold separately)
- Auto-addressing and quick commissioning in the Crestron Home Setup app
- RJ-45 adapters included for wiring with standard CAT5 cable
- Local on and off control of all lights without a control system
- Compatible with Crestron SolarSync sensors
- PoE or 9 to 48 VDC power, 6U DIN rail mounting
DIN-GWDL specifications
| Supported fixtures | Crestron light fixtures and Crestron compatible third-party light fixtures (DMX-C) |
|---|---|
| Fixture count | Up to 64 directly connected; up to 85 with DIN-GWDL-SPLTR |
| DMX-C outputs | 2 isolated outputs sharing one universe; up to 32 directly connected fixtures per output; discovery, auto-addressing and fixture data |
| Inputs | 2 contact closure inputs on an 8-pin terminal block shared with the outputs |
| Network | 100BASE-TX Ethernet, static IP or DHCP; RJ-45 LAN PoE port |
| Power | PoE IEEE 802.3af Class 2 (6.49 W), or 9 to 48 VDC power pack (PW-2407-RU, PW-2407WUL, DIN-PWS60 or DIN-PWS30-277, sold separately); 5 W max |
| Data storage | Removable microSD card (supplied) |
| Environment | 0 to 50 °C (32 to 122 °F); 10% to 90% RH non-condensing |
| Mounting | 6 unit wide DIN rail enclosure (DIN43880 / EN60715, 35/7.5 rail) |
| Dimensions | Height 95 mm (3.74 in), 126 mm (4.96 in) with terminal blocks and RJ-45 adapters; width 108 mm (4.23 in); depth 44 mm (1.73 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| DIN-GWDL | Standard | On request |
Where the DIN-GWDL is used
Works with the DIN-GWDL
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron DIN-GWDL
What is the Crestron DIN-GWDL?
It is a digital lighting gateway, mounted on a DIN rail, for Crestron light fixtures and Crestron compatible third-party light fixtures. It provides full control of all connected lighting loads, is configured with the Crestron Home Setup application and is controlled by a Crestron Home system.
Does the DIN-GWDL need Crestron Home?
Yes. The gateway is designed exclusively for Crestron Home OS and requires Crestron Home. Setup, including auto-addressing and quick commissioning of fixtures, is done in the Crestron Home Setup application. Local control can still turn all lights on and off without a control system.
How many fixtures can the DIN-GWDL control?
It supports up to 64 directly connected Crestron and compatible third-party light fixtures, using two isolated DMX-C outputs that share one universe, with up to 32 fixtures on each. Adding a DIN-GWDL-SPLTR, sold separately, expands support to up to 85 fixtures.
How is the gateway powered?
It can be powered by PoE as an IEEE 802.3af Class 2 device (6.49 W), for example from a CEN-SW-POE-5, or by a 9 to 48 VDC supply such as the PW-2407-RU, PW-2407WUL, DIN-PWS60 or DIN-PWS30-277, all sold separately. Maximum consumption is 5 W.
What cable is used for the fixtures?
RJ-45 adapters are included so the DMX-C outputs can be wired quickly using standard CAT5 cable. Each of the two outputs supports up to 32 directly connected fixtures, and the DMX-C connection supports discovery, auto-addressing and fixture data.
How much is the Crestron DIN-GWDL?
Crestron asks its dealers to give the price of the DIN-GWDL directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the DIN-GWDL?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the DIN-GWDL on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the DIN-GWDL come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the DIN-GWDL develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the DIN-GWDL in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the DIN-GWDL without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
