Crestron CCS-UC-1-X Tabletop Conference Device with BYOD

Crestron part number CCS-UC-1-X

The Crestron CCS-UC-1-X is a tabletop conferencing device with a speakerphone, a 7 inch touch screen and bring your own device (BYOD) connections, for use with Crestron Collab Compute hardware (sold separately). Paired with the CCC-BYOD-KIT, it lets a laptop connect at the table over HDMI and USB.

€1,949 plus VAT €2,397.27 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

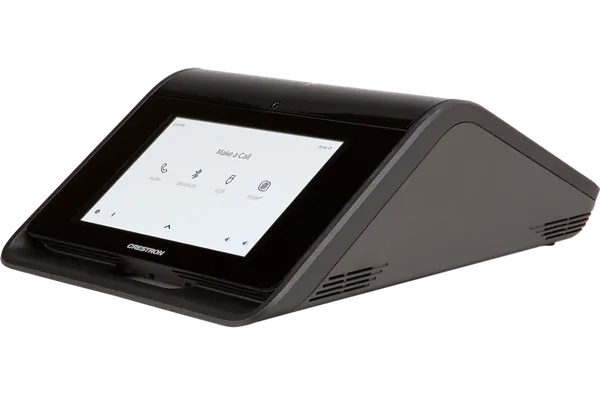

Crestron CCS-UC-1-X Tabletop Conference Device with BYOD for Collab Compute Devices

About the Crestron CCS-UC-1-X

The CCS-UC-1-X combines an integrated 360° quad microphone array, with a typical pickup range of 20 ft (6 m), and a full-range speaker driven by an 11 W amplifier, reaching 95 dB SPL at 0.5 m across 90 Hz to 22 kHz. Its 7 inch (178 mm) capacitive multi-touch colour screen, at 1280 x 800, shows the Microsoft Teams or Zoom Rooms interface when paired with a Collab Compute device.

The LAN port (100BASE-TX) connects to the PoE+ port of the Crestron Collab Compute, and the device configures itself automatically. For BYOD meetings, a laptop plugs into the HDMI input and the USB Micro-B port, and the TX OUT port links to the HD-CONV-USB-260 that is included with the CCC-BYOD-KIT. The MIC POD and USB/ACC ports are not used on this model.

Power comes from the included PW-2420RU power pack, which supplies 24 VDC from a 100 to 240 VAC, 50/60 Hz mains input. The unit is designed for tabletop placement, and the CCS-UCA-SMK swivel mount kit (sold separately) fixes it to the table. It measures 104 mm high, 227 mm wide and 324 mm deep and weighs 3.80 kg. For rooms that do not need BYOD, the CCS-UC-1 is the standard version.

Key features

Speakerphone and 7 inch touch screen for Collab Compute rooms
HDMI and USB inputs for a BYOD laptop
Compatible with the CCC-BYOD-KIT (sold separately)
Automatically configures when connected to the Collab Compute PoE+ port
360° quad microphone array, 20 ft (6 m) typical pickup
Full-range speaker with 11 W amplifier
High-visibility mic mute indication
PW-2420RU 24 VDC power pack included

CCS-UC-1-X specifications

Touch screen	7 in (178 mm) capacitive multi-touch colour LCD, 1280 x 800
User interface	Microsoft Teams or Zoom Rooms, when paired with a Crestron Collab Compute device
Microphones	360° quad mic array, 20 ft (6 m) typical pickup range
Speaker	Full range; 11 W amplifier; 95 dB SPL maximum at 0.5 m; 90 Hz to 22 kHz
LAN	RJ-45, 100BASE-TX; connects to the PoE+ port of a Crestron Collab Compute
BYOD connections	HDMI Type A input and USB Micro-B (USB 2.0) for the laptop; TX OUT RJ-45 to the HD-CONV-USB-260 (included with CCC-BYOD-KIT)
Power	24 VDC from the included PW-2420RU power pack (100 to 240 VAC, 50/60 Hz)
Mounting	Tabletop placement; CCS-UCA-SMK swivel mount kit sold separately
Dimensions and weight	104 x 227 x 324 mm (H x W x D); 3.80 kg (8.38 lb)
Operating environment	0 to 40 °C (32 to 104 °F); 10% to 90% RH non-condensing

Part numbers on this page

Part number	Version	Price	Add
CCS-UC-1-X	Standard	€1,949 plus VAT €2,397.27 inc VAT

Where the CCS-UC-1-X is used

Collab Compute meeting rooms where guests present from their own laptop
Rooms using the CCC-BYOD-KIT for bring your own device meetings
Microsoft Teams Rooms or Zoom Rooms tables needing a speakerphone and controller

Works with the CCS-UC-1-X

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron CCS-UC-1-X

What is the Crestron CCS-UC-1-X?

It is a tabletop conferencing device with a speakerphone, a 7 inch touch screen and bring your own device connections, for use with Crestron Collab Compute hardware sold separately. It shows the Microsoft Teams or Zoom Rooms interface and is compatible with the CCC-BYOD-KIT for laptop based meetings.

How does BYOD work with the CCS-UC-1-X?

A laptop connects to the CCS-UC-1-X through its HDMI input and USB Micro-B port. The TX OUT port then links to the HD-CONV-USB-260, which is included with the CCC-BYOD-KIT. The CCC-BYOD-KIT is sold separately.

How is the CCS-UC-1-X powered?

It runs on 24 VDC from the PW-2420RU power pack, which is included and accepts 100 to 240 VAC at 50/60 Hz. Its LAN port connects to the PoE+ port of the Crestron Collab Compute, and the device configures itself automatically once connected.

What is the difference between the CCS-UC-1-X and the CCS-UC-1?

They share the speakerphone, microphone array, 7 inch touch screen, size and weight. The CCS-UC-1-X adds BYOD connections (HDMI and USB for a laptop, plus a TX OUT port) and is compatible with the CCC-BYOD-KIT. The CCS-UC-1 can be powered by PoE+ or its power pack, while the CCS-UC-1-X uses its included PW-2420RU.

How is the unit mounted and how big is it?

It is designed for tabletop placement, and the CCS-UCA-SMK swivel mount kit, sold separately, allows it to be mounted to the table. It measures 104 mm (4.11 in) high, 227 mm (8.92 in) wide and 324 mm (12.74 in) deep and weighs 3.80 kg (8.38 lb).

How much is the Crestron CCS-UC-1-X?

Crestron's advertised price for the CCS-UC-1-X in Ireland is €1,949 plus VAT, which is €2,397.27 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the CCS-UC-1-X?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CCS-UC-1-X on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the CCS-UC-1-X come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CCS-UC-1-X develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the CCS-UC-1-X in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the CCS-UC-1-X without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
