Crestron part number CCS-UC-1

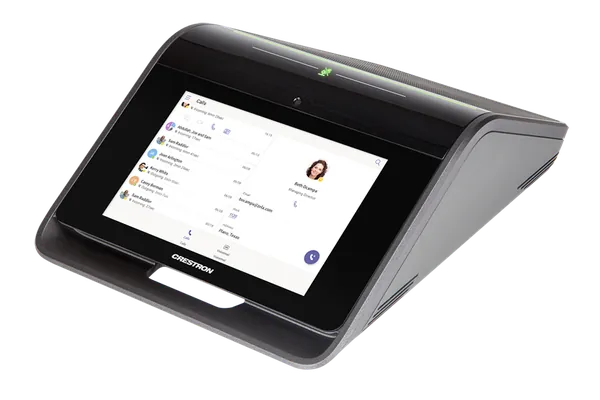

The Crestron CCS-UC-1 is a tabletop conferencing device that combines a speakerphone with a 7 inch touch screen, for use with Crestron Collab Compute hardware (sold separately). Plugged into the PoE+ port of a Collab Compute, it configures itself automatically and shows the Microsoft Teams or Zoom Rooms interface.
€1,280 plus VAT €1,574.40 including VAT at 23%
Crestron's advertised price. Delivery, installation and programming are quoted separately.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron CCS-UC-1
Voices are picked up by an integrated 360° quad microphone array with a typical range of 20 ft (6 m), capturing voices from every seat at the table. A full-range speaker with an 11 W amplifier plays voice and programme content at up to 95 dB SPL at 0.5 m, across 90 Hz to 22 kHz. Two capacitive mute buttons with bicolour LEDs give high-visibility mute indication.
The 7 inch (178 mm) capacitive multi-touch colour screen has a resolution of 1280 x 800 and presents the Microsoft Teams or Zoom Rooms interface when paired with a Crestron Collab Compute device. The CCS-UC-1 can be powered by PoE+ (IEEE 802.3at Type 2, Class 4, 25.5 W) or by the included universal 100 to 240 VAC power pack.
It sits on the table, and the CCS-UCA-SMK swivel mount kit, sold separately, is available for fixing it to the tabletop. The unit measures 104 mm high, 227 mm wide and 324 mm deep and weighs 3.80 kg. If the room needs a laptop connection for bring your own device meetings, the CCS-UC-1-X is the version Crestron lists as compatible with the CCC-BYOD-KIT.
Key features
- Speakerphone and touch screen in one tabletop device
- Automatically configures when connected to a Collab Compute PoE+ port
- 7 inch (178 mm) HD colour touch screen with Teams or Zoom Rooms interface
- Integrated 360° quad microphone array, 20 ft (6 m) typical pickup
- Full-range speaker, 11 W amplifier, up to 95 dB SPL at 0.5 m
- High-visibility mic mute indication
- PoE+ or AC powered, universal power pack included
- Enterprise-grade security
CCS-UC-1 specifications
| Touch screen | 7 in (178 mm) capacitive multi-touch colour LCD, 1280 x 800 |
|---|---|
| User interface | Microsoft Teams or Zoom Rooms, when paired with a Crestron Collab Compute device |
| Microphones | 360° quad mic array, 20 ft (6 m) typical pickup range |
| Speaker | Full range; 11 W amplifier; 95 dB SPL maximum at 0.5 m; 90 Hz to 22 kHz |
| Network | 100 Mbps Ethernet |
| Power | PoE+ (IEEE 802.3at Type 2, Class 4, 25.5 W) or 24 VDC from the included 100 to 240 VAC power pack |
| Mounting | Tabletop; CCS-UCA-SMK swivel mount kit sold separately |
| Dimensions | Height 104 mm (4.11 in), width 227 mm (8.92 in), depth 324 mm (12.74 in) |
| Weight | 3.80 kg (8.38 lb) |
| Operating environment | 0 to 40 °C (32 to 104 °F); 10% to 90% RH non-condensing |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| CCS-UC-1 | Standard | €1,280 plus VAT €1,574.40 inc VAT |
Where the CCS-UC-1 is used
Works with the CCS-UC-1
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron CCS-UC-1
What is the Crestron CCS-UC-1?
It is a tabletop conferencing device that combines a speakerphone and a 7 inch touch screen for use with Crestron Collab Compute hardware, which is sold separately. It configures itself automatically once connected to the Collab Compute's PoE+ port and shows the Microsoft Teams or Zoom Rooms interface.
How far does the CCS-UC-1 microphone pick up?
The integrated 360° quad microphone array has a typical pickup range of 20 ft (6 m) and is designed to capture voices from every seat at the table. Two capacitive controls, the mute symbol and the light bar, both toggle mute and use bicolour LEDs for high-visibility indication.
How is the CCS-UC-1 powered?
It can be powered by PoE+ as an IEEE 802.3at Type 2, Class 4 (25.5 W) powered device, or by 24 VDC from the universal 100 to 240 VAC, 50/60 Hz power pack that is included. Its Ethernet connection runs at 100 Mbps.
What is the difference between the CCS-UC-1 and the CCS-UC-1-X?
Both are tabletop conference devices with the same speaker, microphones and 7 inch touch screen. The CCS-UC-1-X adds bring your own device features: it has HDMI and USB connections for a laptop and is compatible with the CCC-BYOD-KIT. The CCS-UC-1 can also run on PoE+, while the CCS-UC-1-X is listed with its included 24 VDC power pack.
How big is the CCS-UC-1 and can it be fixed to the table?
It measures 104 mm (4.11 in) high, 227 mm (8.92 in) wide and 324 mm (12.74 in) deep and weighs 3.80 kg (8.38 lb). It is designed to sit on the table, and the CCS-UCA-SMK swivel mount kit is sold separately for fixing it in place.
How much is the Crestron CCS-UC-1?
Crestron's advertised price for the CCS-UC-1 in Ireland is €1,280 plus VAT, which is €1,574.40 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.
Can 1Install supply, install and programme the CCS-UC-1?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the CCS-UC-1 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the CCS-UC-1 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the CCS-UC-1 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the CCS-UC-1 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the CCS-UC-1 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
