Crestron ZUMNET-DIN-16A-LV Zum DIN Rail 0-10V Load Controller, 16A

It is a DIN rail mounted load controller for Zum wired lighting control. It provides 0-10V dimming for LED drivers or 4-wire fluorescent ballasts and a switched output rated 16A at 100-277V AC, with Zum Net communication for network expansion and Zum Link for in-room control devices.

The switched output is rated 16A at 100-277V AC, 50/60 Hz, and 1 HP at 120-277V AC. Crestron lists LED, electronic drivers, incandescent, magnetic low-voltage, electronic low-voltage, neon/cold cathode, high-intensity discharge and small motor loads. The dimming output is 0-10VDC, 60mA maximum sink or source.

It has two ZUMNET RJ-45 ports, an input for the control system or a Zum Net device and an output for daisy-chaining further Zum Net devices, plus two ZUMLINK RJ-45 ports for in-room Zum Link devices. It connects over Ethernet to a ZUM-HUB4 control system and integrates with Zum keypads, presence detectors and daylight sensors, all sold separately.

Spring clamp terminals provide an occupancy sensor input (24V, OCC, GND), a photo sensor input (24V, PHO, GND) and an override control input (OVR, GND), each terminal taking one 20-24 AWG solid wire. Crestron lists an integrated contact closure input, and up to 85mA can pass through from the Zum Link bus to the sensor terminal.

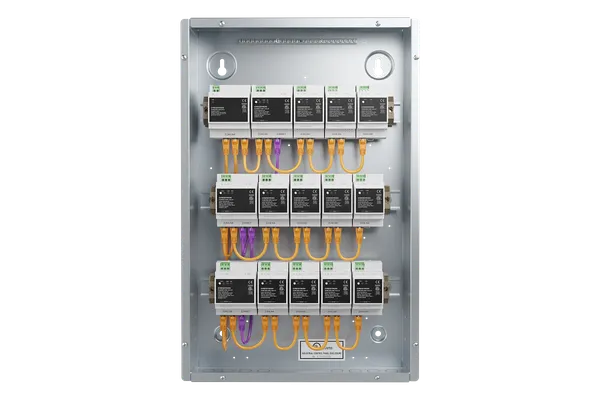

It mounts on DIN rail and is 4 modules wide. The light grey polycarbonate housing measures 94 mm high, 71 mm wide and 59 mm deep. It is rated for a local in-cabinet air temperature of 0 to 55 °C and dissipates 7 BTU/hr at 0A or 13 BTU/hr at 16A.

Crestron asks its dealers to give the price of the ZUMNET-DIN-16A-LV directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMNET-DIN-16A-LV on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMNET-DIN-16A-LV develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
