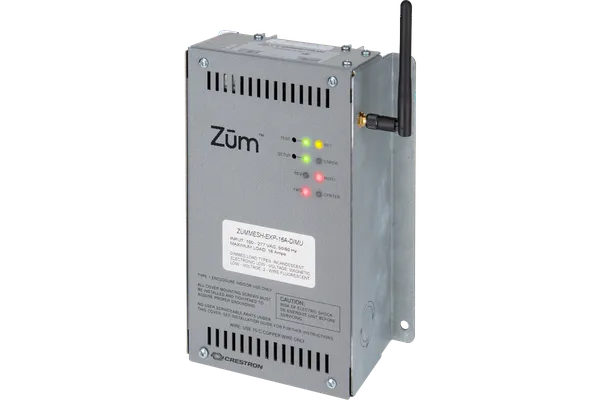

Crestron ZUMMESH-EXP-16A-DIMU Zūm Wireless 16A Universal Dimmer

It is the Zūm Wireless Universal Dimmer Module, a single-channel dimmer rated 16A at 100-277V that brings universal phase control dimming to a Zūm wireless commercial lighting system. It dims LED, incandescent, electronic and magnetic low-voltage, neon/cold cathode and 2-wire fluorescent loads and communicates over Zūm Mesh.

In normal operation it detects the connected load type and selects the mode automatically: reverse phase (trailing edge) for incandescent and electronic low-voltage loads, and forward phase (leading edge) for loads such as LED and magnetic low-voltage. A DIM MODE button behind the cover lets you select auto detect, reverse, forward or centre phase, with LEDs showing the active mode.

Both are single-channel 16A universal dimmers for the same load types. The ZUMMESH-EXP-16A-DIMU communicates wirelessly over Zūm Mesh with a supplied antenna and has a SETUP button for room setup, while the ZUMLINK-EXP-16A-DIMU connects to Zūm wired devices through two RJ-45 Zūm Link ports. Choose the one that matches the existing Zūm system.

Crestron's zero-cross filter technology compensates for line voltage and frequency fluctuations, which improves immunity to power line noise and reduces lamp flicker. A ZEROCROSS FILTER button behind the cover enables or disables the filter. Basic zero-cross detection is the default, and BASIC and FILTER LEDs show which mode is active.

The NEMA Type 1 enclosure surface mounts and must be fitted upright on a vertical surface, with at least 6 in. (153 mm) of clear space above and below. It measures 224 mm high, 163 mm wide and 81 mm deep, and operates from 0° to 45°C. Wiring uses captive screw terminals for 24 to 10 AWG wire.

Crestron asks its dealers to give the price of the ZUMMESH-EXP-16A-DIMU directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMMESH-EXP-16A-DIMU on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMMESH-EXP-16A-DIMU develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
