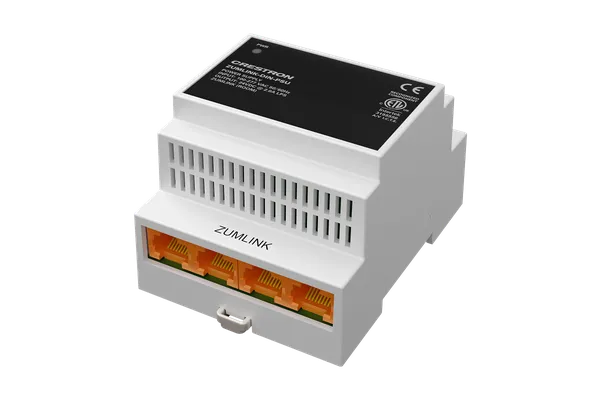

Crestron ZUMLINK-DIN-PSU DIN Rail Power Supply for Zum Link Devices

It is a Zum wired DIN rail power supply that delivers additional Zum Link power to an in-room system. Its four RJ45 Zum Link ports power Zum modules, keypads, presence detectors and daylight sensors through plug-and-play wiring, as part of a Zum wired commercial room lighting system.

The Zum Link ports supply 24V. Each pair of ports, left and right, provides up to 1,000mA, and the module provides up to 2,000mA in total. It runs from 100 to 277 VAC at 50/60 Hz, connected to a 2-pin neutral and line terminal block.

No. Crestron lists the four Zum Link ports as power output only, with no communication. They use the orange CBL-CAT5E-ZUMLINK-P cable, sold separately, to feed power to the Zum Link devices in the room.

It mounts on DIN rail and takes 4 modules (4M) of width. The light grey polycarbonate housing measures 94 mm high, 71 mm wide and 58 mm deep and weighs 171 g. Crestron rates the local in-cabinet air temperature at 0° to 50°C (32° to 122°F).

Crestron gives heat dissipation at a 2 A load of 23 BTU/hr at 100 VAC, 22 BTU/hr at 120 VAC and 19 BTU/hr at 240 to 277 VAC. This is worth allowing for in a cabinet, where the in-cabinet air temperature should stay within 0° to 50°C.

Crestron asks its dealers to give the price of the ZUMLINK-DIN-PSU directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMLINK-DIN-PSU on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMLINK-DIN-PSU develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
