Crestron part number ZUMLINK-DIN-20A-PLUG

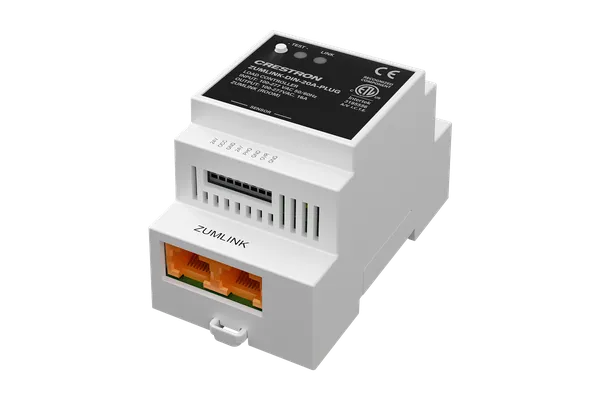

The Crestron ZUMLINK-DIN-20A-PLUG is a DIN rail load controller for Zum wired lighting that provides 20A plug load control as well as switching for lighting loads. It links to keypads, presence detectors, daylight sensors and other in-room Zum devices over Zum Link.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron ZUMLINK-DIN-20A-PLUG
The switched output is rated 20A resistive at 100 to 277 VAC and 1 HP at 120 to 277 VAC. As well as plug loads, it switches LED, electronic driver, incandescent, magnetic and electronic low-voltage, neon/cold cathode, high-intensity discharge and small motor loads. Crestron gives a switch lifetime of 100,000 on/off operations at 16A, 277 VAC, and 100,000 operations at 1 HP.
Two RJ45 Zum Link ports daisy-chain the controller with other in-room Zum devices, such as Zum keypads, presence detectors and daylight sensors (sold separately). Spring clamp inputs accept an occupancy sensor, a photo sensor and an override contact closure. Energy saving options include daylighting, occupancy or vacancy sensing and central monitoring and management, and rooms are set up in the Zum app.
The unit mounts on DIN rail, 3 modules wide, in a light grey polycarbonate housing measuring 94 mm high, 53 mm wide and 59 mm deep. Line connections use a 3-pin terminal block for neutral, line and switched output. A TEST button toggles the load, a status LED shows faults, and the in-cabinet air temperature range is 0° to 50°C.
Key features
- DIN rail plug load controller
- 20A plug load control plus lighting load switching
- 20A resistive at 100 to 277 VAC, 1 HP motor rating
- Zum Link daisy-chaining with keypads and sensors
- Occupancy, photo sensor and override inputs
- Integrated contact closure input
- Set up through the Zum app
- 3 module wide DIN rail mounting
ZUMLINK-DIN-20A-PLUG specifications
| Function | 20A plug load control and lighting load switching |
|---|---|
| Line voltage | 100 to 277 VAC, 50/60 Hz |
| Switch rating | 20A resistive at 100 to 277 VAC; 1 HP at 120 to 277 VAC |
| Switch load types | LED, electronic drivers, incandescent, magnetic and electronic low-voltage, neon/cold cathode, HID, small motor |
| Switch lifetime | 100,000 on/off operations at 16A, 277 VAC; 100,000 at 1 HP |
| Zum Link | 2 x RJ45 for in-room daisy-chaining; 50mA maximum bus current without sensor terminal |
| Inputs | Occupancy sensor, photo sensor and override; spring clamp, 20 to 24 AWG solid |
| Environment | In-cabinet air 0° to 50°C (32° to 122°F); 10% to 90% RH, non-condensing; 4 to 14 BTU/hr |
| Mounting | DIN rail, 3M wide; light grey polycarbonate housing; N, L, SW terminal block |
| Dimensions and weight | 94 mm H x 53 mm W x 59 mm D; 133 g |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| ZUMLINK-DIN-20A-PLUG | Plug load switch | On request |
Where the ZUMLINK-DIN-20A-PLUG is used
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron ZUMLINK-DIN-20A-PLUG
What does the ZUMLINK-DIN-20A-PLUG do?
It is a Zum wired DIN rail load controller that provides 20A plug load control as well as switching for lighting loads, at 100 to 277 VAC. It connects to other in-room Zum devices over Zum Link as part of a Zum wired commercial room lighting system.
What is the rating of the ZUMLINK-DIN-20A-PLUG?
The switched output is rated 20A resistive at 100 to 277 VAC, 50/60 Hz, and 1 HP at 120 to 277 VAC. Crestron gives a switch lifetime of 100,000 on/off operations at 16A, 277 VAC, and 100,000 operations at a 1 HP motor rating.
What connects to the Zum Link ports?
Two RJ45 Zum Link ports daisy-chain the controller with other in-room Zum devices, including Zum keypads, presence detectors and daylight sensors, which are sold separately. It also has spring clamp inputs for an occupancy sensor, a photo sensor and an override contact closure.
How is the controller mounted?
It mounts on DIN rail and takes up 3 modules (3M) of width. The light grey polycarbonate housing measures 94 mm high, 53 mm wide and 59 mm deep and weighs 133 g. Crestron rates the local in-cabinet air temperature at 0° to 50°C (32° to 122°F).
How does it differ from the ZUMLINK-DIN-20A-SW?
Both are 20A DIN rail load controllers with Zum Link and share the same switch rating and housing. Crestron describes the ZUMLINK-DIN-20A-PLUG as a plug load switch that adds 20A plug load control, while the ZUMLINK-DIN-20A-SW is described as a high inrush switch for lighting loads.
How much is the Crestron ZUMLINK-DIN-20A-PLUG?
Crestron asks its dealers to give the price of the ZUMLINK-DIN-20A-PLUG directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the ZUMLINK-DIN-20A-PLUG?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMLINK-DIN-20A-PLUG on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the ZUMLINK-DIN-20A-PLUG come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMLINK-DIN-20A-PLUG develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the ZUMLINK-DIN-20A-PLUG in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the ZUMLINK-DIN-20A-PLUG without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
