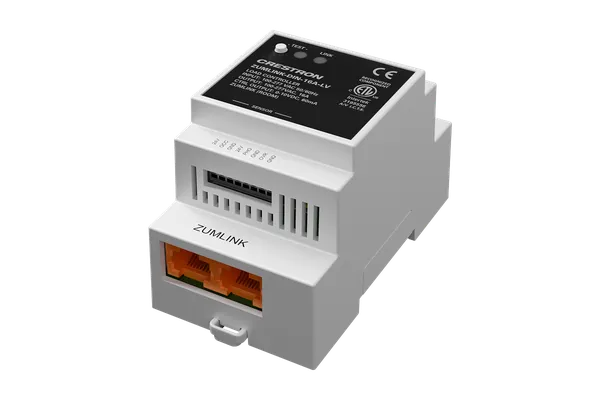

Crestron ZUMLINK-DIN-16A-LV DIN Rail 0-10V Dimmer, 16A, for Zum Link

It is a Zum wired DIN rail load controller that switches a lighting load of up to 16A at 100 to 277 VAC and provides 0-10V dimming. It connects to other in-room Zum devices over Zum Link to give intelligent lighting control as part of a Zum wired commercial room lighting system.

The 0-10VDC output dims 0-10V LED drivers or 4-wire electronic fluorescent ballasts, sinking or sourcing up to 60mA. The switched output handles LED, electronic drivers, incandescent, magnetic and electronic low-voltage, neon/cold cathode, high-intensity discharge and small motor loads.

Two RJ45 Zum Link ports daisy-chain the controller with other in-room Zum devices, including Zum keypads, presence detectors and daylight sensors, which are sold separately. It also has spring clamp inputs for an occupancy sensor, a photo sensor and an override contact closure.

It mounts on DIN rail and takes up 3 modules (3M) of width. The light grey polycarbonate housing measures 94 mm high, 53 mm wide and 59 mm deep and weighs 133 g. Crestron rates the local in-cabinet air temperature at 0° to 55°C (32° to 131°F).

Crestron lists daylighting, occupancy or vacancy sensing, and central monitoring and management as energy saving options. The controller has inputs for occupancy and photo sensors, works with Zum presence detectors and daylight sensors, and rooms are configured through the Zum app.

Crestron asks its dealers to give the price of the ZUMLINK-DIN-16A-LV directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUMLINK-DIN-16A-LV on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUMLINK-DIN-16A-LV develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
