Crestron part number ZUML-HUB4

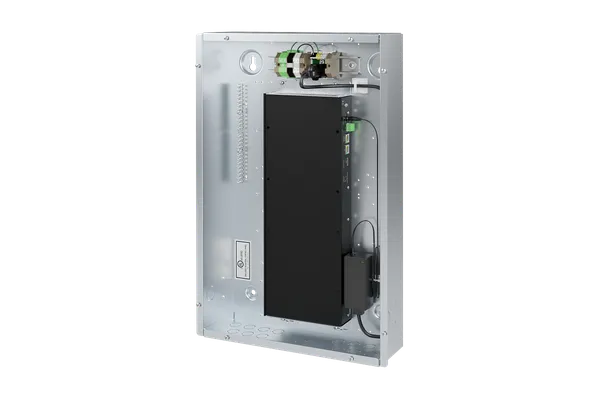

The Crestron ZUML-HUB4 is the Zum Lighting Control Processor Panel, a preassembled lighting control cabinet for Crestron Zum commercial lighting systems. It takes 100 to 240 V main power and measures 616 mm high, 409 mm wide and 112 mm deep.
Price on request
The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron ZUML-HUB4
As a preassembled cabinet, the ZUML-HUB4 arrives with its lighting control processor equipment already fitted, rather than as separate parts to mount on site. Crestron notes that the individual components may also be ordered. Crestron's published data for this panel is brief, so confirm the exact contents and part numbers when specifying or replacing one.
The panel is rated for an operating temperature of 5° to 40°C (41° to 104°F) and humidity of 10% to 90% RH, non-condensing. Related panels in the range add network switches: the ZUML-HUB4-SWPOE-5 with a 5-port PoE network switch and the ZUML-HUB4-SWPOE-26 with a 26-port PoE network switch.
Key features
- Preassembled lighting control cabinet
- For Crestron Zum commercial lighting systems
- 100 to 240 V main power
- Operating temperature 5° to 40°C
- Individual components also available
- 616 x 409 x 112 mm enclosure
ZUML-HUB4 specifications
| Type | Preassembled lighting control processor panel |
|---|---|
| System | Crestron Zum commercial lighting |
| Main power | 100 to 240 V |
| Operating temperature | 5° to 40°C (41° to 104°F) |
| Humidity | 10% to 90% RH, non-condensing |
| Dimensions | 616 mm H x 409 mm W x 112 mm D (24.25 x 16.10 x 4.43 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| ZUML-HUB4 | Standard | On request |
Where the ZUML-HUB4 is used
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron ZUML-HUB4
What is the ZUML-HUB4?
It is Crestron's Zum Lighting Control Processor Panel, a preassembled lighting control cabinet for a Crestron Zum commercial lighting system. It is supplied assembled, and Crestron notes that the individual components may also be ordered.
What power does the ZUML-HUB4 need?
Crestron specifies main power of 100 to 240 V for the panel. It is rated for an operating temperature of 5° to 40°C (41° to 104°F) and humidity of 10% to 90% RH, non-condensing.
How big is the panel?
The ZUML-HUB4 measures 616 mm (24.25 in) high, 409 mm (16.10 in) wide and 112 mm (4.43 in) deep, so allow a space of at least that size where the cabinet is to be fitted.
How does the ZUML-HUB4 differ from the SWPOE panels?
The ZUML-HUB4 is the Zum Lighting Control Processor Panel. The ZUML-HUB4-SWPOE-5 and ZUML-HUB4-SWPOE-26 are processor panels that add a 5-port or a 26-port PoE network switch. All three share the same 616 x 409 x 112 mm size and 100 to 240 V main power.
Can the components be ordered separately?
Crestron notes that the individual components of the panel may also be ordered. If you are replacing a failed item inside an existing panel, check the part number on that item first so the correct component can be supplied.
How much is the Crestron ZUML-HUB4?
Crestron asks its dealers to give the price of the ZUML-HUB4 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.
Can 1Install supply, install and programme the ZUML-HUB4?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the ZUML-HUB4 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the ZUML-HUB4 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the ZUML-HUB4 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the ZUML-HUB4 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the ZUML-HUB4 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
