Crestron part number UC-AUDIO-POD-B-DR2

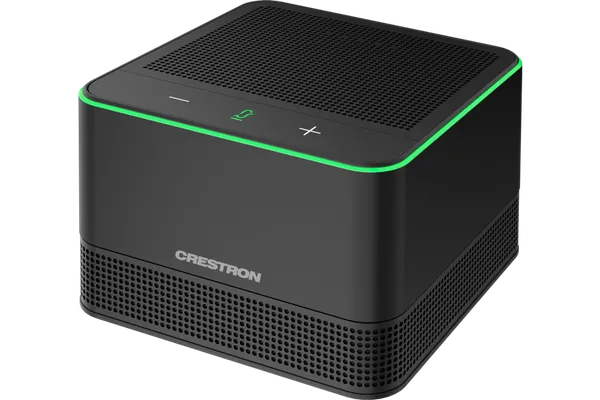

The Crestron UC-AUDIO-POD-B-DR2 is the black Crestron Flex Pod, a wireless tabletop speaker with four microphones for small to large meeting rooms. It pairs with a Crestron Flex UC-AUDIO-HUB over DECT, and the hub passes the audio to a UC Engine through USB-C.
€671 plus VAT €825.33 including VAT at 23%
Crestron's advertised price. Delivery, installation and programming are quoted separately.
Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us
Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.
About the Crestron UC-AUDIO-POD-B-DR2
Each pod has a 2 in. full range speaker (100 Hz to 7 kHz, 74 dB SPL at 1 m) and a 360° quad microphone array with a pickup range of about 2.3 m. Built-in acoustic echo cancellation, automatic gain control and dynamic noise suppression provide full-duplex, echo-free two-way voice. Because the link is wireless, the pod can sit anywhere on the conference table.
Up to four pods can connect wirelessly to one hub, which sends and receives audio to a UC Engine through a USB-C connection. This is the DR2 version, working in the 1880 to 1900 MHz band with 10 channels; the DR1 version uses 1920 to 1930 MHz, so check the DR version of the hub before adding or replacing a pod. Pairing uses a push button, and there is a recessed reset button.
Backlit capacitive buttons control speaker volume and mic mute during a call. A green LED shows the microphone is unmuted, red shows it is muted and white LEDs show the volume level. The pod is powered through USB-C at 5 VDC, 3 A from an included 100 to 240 VAC power pack. It is tabletop only, with a Kensington security slot, and measures 76 mm high by 112 mm wide and deep.
Key features
- Wireless tabletop speaker with four microphones
- 360° quad mic array with about 2.3 m pickup
- 2 in. full range speaker, 74 dB SPL at 1 m
- Echo cancellation, gain control and noise suppression
- Backlit volume and mic mute buttons with LED status
- Pairs with a Crestron Flex Hub over DECT
- Kensington security slot
- USB-C power from an included power pack
UC-AUDIO-POD-B-DR2 specifications
| Speaker | One 2 in. full range driver; 100 Hz to 7 kHz; 74 dB SPL at 1 m |
|---|---|
| Microphones | 360° quad mic array; pickup range about 2.3 m (7.5 ft) |
| Audio processing | Acoustic echo cancellation, automatic gain control, dynamic noise suppression, speaker volume control; full-duplex |
| Wireless | DECT to a Crestron Flex Hub; DR2 band 1880 to 1900 MHz, 10 channels |
| Controls | Capacitive backlit volume up/down and mic mute; pair push button; recessed reset |
| Indicators | Green LED unmuted, red LED muted, white LEDs for volume level |
| Power | 5 VDC, 3 A via USB-C from external 100 to 240 VAC power pack (included) |
| Construction | Lightly textured finish, plastic housing, perforated stainless steel grilles, die-cast aluminium bottom cover |
| Mounting | Tabletop only; Kensington Security Slot |
| Dimensions | Height 76 mm (3.0 in), width 112 mm (4.40 in), depth 112 mm (4.40 in) |
Part numbers on this page
| Part number | Version | Price | Add |
|---|---|---|---|
| UC-AUDIO-POD-B-DR2 | Black | €671 plus VAT €825.33 inc VAT |
Where the UC-AUDIO-POD-B-DR2 is used
Works with the UC-AUDIO-POD-B-DR2
Crestron installed by 1Install
We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.
Questions about the Crestron UC-AUDIO-POD-B-DR2
What is the Crestron UC-AUDIO-POD-B-DR2?
It is the black Crestron Flex Pod, a wireless tabletop conferencing device with a speaker and four microphones. It connects wirelessly to a paired Crestron Flex UC-AUDIO-HUB, which sends and receives the audio to a UC Engine through a USB-C connection.
Does the UC-AUDIO-POD-B-DR2 need a hub?
Yes. The pod transfers audio to and from a paired Crestron Flex UC-AUDIO-HUB over DECT, and the hub connects to the UC Engine. Up to four pods can connect to one hub, so extra pods can be added to an existing system with spare capacity.
What does DR2 mean?
DR2 is the frequency version. This pod works in the 1880 to 1900 MHz band with 10 channels, and the DR1 version uses 1920 to 1930 MHz with 5 channels. Check that a replacement or additional pod matches the DR version of the hub it will pair with.
How is the pod powered?
It is powered through its USB-C port at 5 VDC, 3 A from an external 100 to 240 VAC power pack, which comes with the pod. Audio travels to and from the hub wirelessly over DECT, so there is no audio cable to the pod.
How big is the UC-AUDIO-POD-B-DR2 and how is it mounted?
It measures 76 mm high, 112 mm wide and 112 mm deep. It is for tabletop use only, with an optional tabletop mounting accessory and a Kensington Security Slot for a lock. The housing is plastic with perforated stainless steel grilles and a die-cast aluminium bottom cover.
How much is the Crestron UC-AUDIO-POD-B-DR2?
Crestron's advertised price for the UC-AUDIO-POD-B-DR2 in Ireland is €671 plus VAT, which is €825.33 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.
Can 1Install supply, install and programme the UC-AUDIO-POD-B-DR2?
Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the UC-AUDIO-POD-B-DR2 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.
Does the UC-AUDIO-POD-B-DR2 come with a warranty?
Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the UC-AUDIO-POD-B-DR2 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.
Is the UC-AUDIO-POD-B-DR2 in stock?
We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.
Can I buy the UC-AUDIO-POD-B-DR2 without installation?
Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
