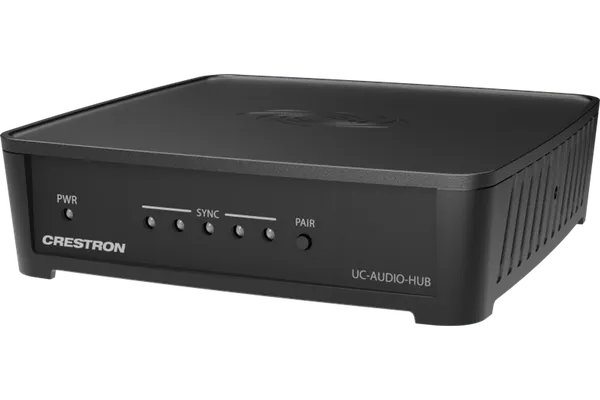

Crestron UC-AUDIO-HUB-DR2 Flex Hub Wireless Transceiver

It is the Crestron Flex Hub, a wireless transceiver and auto mixer. It connects to up to four paired Crestron Flex UC-AUDIO-POD devices over DECT, mixes the audio from their microphones and sends it to a UC Engine through a USB-C connection.

It pairs with up to four Crestron Flex Pods. The hub's SYNC LEDs indicate pairing and connection with each pod, and a tactile pair button is used to pair them. Audio from the connected pods is auto-mixed before it is passed to the UC application on the UC Engine.

They use different frequency bands. This DR2 hub works in the 1880 to 1900 MHz band with 10 channels, while the DR1 version uses 1920 to 1930 MHz with 5 channels. When replacing a hub or adding pods, check the DR version on the existing units.

It has a 24 VDC, 0.75 A input fed by an external 100 to 240 VAC power pack, which is included, and a 1000 Mbps Ethernet LAN port listed as a PoE powered device at 4 W, Class 0. A USB-C port connects to the PC or UC Engine for audio and HID data.

It can be freestanding, stacked, surface mounted, or fixed to a wall or ceiling with a black plastic bracket. The hub measures 34 mm high, 128 mm wide and 128 mm deep, or 45 mm high and 137 mm wide with the bracket, and weighs 253 g without it.

Crestron's advertised price for the UC-AUDIO-HUB-DR2 in Ireland is €561 plus VAT, which is €690.03 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the UC-AUDIO-HUB-DR2 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the UC-AUDIO-HUB-DR2 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
