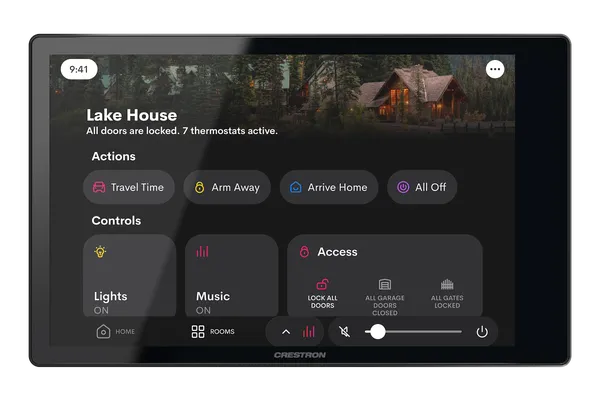

Crestron TSW-880R 8.1 in. Wall Mount Touch Screen for Crestron Home OS

Crestron part number TSW-880R-B

The Crestron TSW-880R is the Crestron Home OS version of the 8.1 in. wall mount touch screen, made for residential use. It runs a native Crestron Home OS app on a 1280 x 800 capacitive display and adds a Rava SIP intercom, streaming video, PoE or PoE+ power and Wi-Fi 6E.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation
Crestron TSW-880R 8.1 in. Wall Mount Touch Screen, Crestron Home OS Version

About the Crestron TSW-880R

The TSW-880R is used to control a Crestron Home OS system through a native app on its 8.1 in. (204 mm) colour display. The screen runs at 1280 x 800 (WXGA) with projected capacitive 5 point multitouch, 350 to 400 nits brightness, 1000:1 contrast and automatic brightness control. Six virtual buttons sit in a collapsible tool bar, and the graphics engine supports dual scalable streaming video windows.

It has built-in speakers, a microphone and a Rava SIP intercom, and decodes H.265, H.264 and MJPEG video with AAC stereo audio. A USB-C 2.0 port is provided for room availability accessories and conferencing. Inside are 8 GB of LPDDR4 RAM and 40 GB of eMMC pSLC storage, and Crestron lists enterprise grade security and authentication, with WPA3 and WPA2 Enterprise among the supported Wi-Fi security modes.

A single Ethernet cable carries data and PoE or PoE+ power; the screen is an IEEE 802.3at Type 2 device and requests 30 W (PoE+ Class 4) from a Type 2 PSE without LLDP. Networking is 1000 Mbps Ethernet or Wi-Fi 6E, with Bluetooth 5.2 BLE. It surface mounts over a 2-gang DIN 49073 or BS 4662 electrical box, among other box types, and measures 124 mm high, 201 mm wide and 30 mm deep. Black and white versions are listed here.

Key features

  • Native Crestron Home OS app
  • 8.1 in. 1280 x 800 capacitive touch screen, up to 400 nits
  • Built-in Rava SIP intercom, speakers and microphone
  • H.265, H.264 and MJPEG streaming video with dual scalable video windows
  • USB-C 2.0 port for room availability accessories and conferencing
  • 1000 Mbps Ethernet, Wi-Fi 6E and Bluetooth 5.2
  • Single Ethernet cable with PoE or PoE+ power
  • Numerous optional mounting accessories

TSW-880R specifications

Display8.1 in. (204 mm) TFT active matrix colour LCD, 16:10 WXGA, 1280 x 800 pixels
Picture350 to 400 nits, 1000:1 contrast, 24 bit colour (16.7M colours), ±80° horizontal and vertical viewing angle
Touch and buttonsProjected capacitive, 5 point multitouch; 6 virtual buttons in a collapsible tool bar
Streaming videoH.265, H.264 and MJPEG; AAC stereo audio; dual scalable streaming video windows
Memory8 GB LPDDR4 RAM; 40 GB eMMC pSLC storage; 1000 MB maximum project size
Wired1000 Mbps Ethernet; USB-C 2.0 port (USB 2.0 host)
WirelessWi-Fi 6E (802.11a/b/g/n/ac/ax, 2.4, 5 and 6 GHz), 2x2 MIMO, range up to 15 m; Bluetooth 5.2 BLE
PowerPoE or PoE+ (IEEE 802.3at Type 2 PD); requests 30 W (PoE+ Class 4) from a Type 2 PSE without LLDP
MountingSurface mount over a 2-gang DIN 49073 or BS 4662 electrical box, among other box types
DimensionsHeight 124 mm (4.88 in), width 201 mm (7.93 in), depth 30 mm (1.18 in)

Part numbers on this page

Part numberVersionPriceAdd
TSW-880R-B Black On request
TSW-880R-W White On request

Where the TSW-880R is used

  • Wall control for Crestron Home OS systems
  • Room control points in new builds and retrofits
  • Rooms that need a built-in SIP intercom
  • Replacing an existing TSW-880R in a home

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Country house at dusk with Crestron lighting in Waterfall, Cork
Country house at dusk with Crestron lighting in Waterfall, Cork
Crestron controlled shelf lighting in a Dublin retail boutique
Crestron controlled shelf lighting in a Dublin retail boutique
Open plan living space with smart lighting in Ranelagh, Dublin
Open plan living space with smart lighting in Ranelagh, Dublin

Questions about the Crestron TSW-880R

What is the Crestron TSW-880R?

It is the Crestron Home OS version of the 8.1 in. wall mount touch screen, designed for residential applications. It runs a native Crestron Home OS app on a 1280 x 800 capacitive display and includes a Rava SIP intercom, built-in speakers and microphone, streaming video, PoE or PoE+ power and Wi-Fi 6E.

What is the difference between the TSW-880R-B and TSW-880R-W?

Both are the TSW-880R 8.1 in. touch screen running Crestron Home OS, with the same specification. The TSW-880R-B is black and the TSW-880R-W is white. Check the part number on an existing unit if you want a replacement to match the finish already on the wall.

How is the TSW-880R powered?

It takes PoE or PoE+ power over a single Ethernet cable. As an IEEE 802.3at Type 2 compliant PoE+ powered device, it requests 30 W (PoE+ Class 4) from an 802.3at Type 2 PSE without LLDP. The wired network port runs at 1000 Mbps.

What is the USB-C port on the TSW-880R for?

The screen has a USB-C 2.0 port that Crestron lists for room availability accessories and conferencing. Alongside it the TSW-880R offers 1000 Mbps Ethernet, Wi-Fi 6E on 2.4, 5 and 6 GHz with 2x2 MIMO, and Bluetooth 5.2 BLE with a typical range of 10 m.

What size is the TSW-880R and how does it mount?

It measures 124 mm high, 201 mm wide and 30 mm deep. It surface mounts over a 2-gang DIN 49073 or BS 4662 electrical box, among other box types listed by Crestron, and numerous optional mounting accessories are offered for other mounting situations. A pin hole on the bottom gives a hardware reset.

How much is the Crestron TSW-880R?

Crestron asks its dealers to give the price of the TSW-880R directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TSW-880R?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TSW-880R on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TSW-880R come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TSW-880R develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TSW-880R in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the TSW-880R without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
