Crestron TS-880R 8.1 in. Crestron Home OS Tabletop Touch Screen

Crestron part number TS-880R-B

The Crestron TS-880R is an 8.1 in. tabletop touch screen designed to run Crestron Home OS, aimed at residential projects. It combines a 1280 x 800 capacitive display with a Rava SIP intercom, H.265 and H.264 streaming video, Wi-Fi 6E and PoE or PoE+ power over one cable.

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

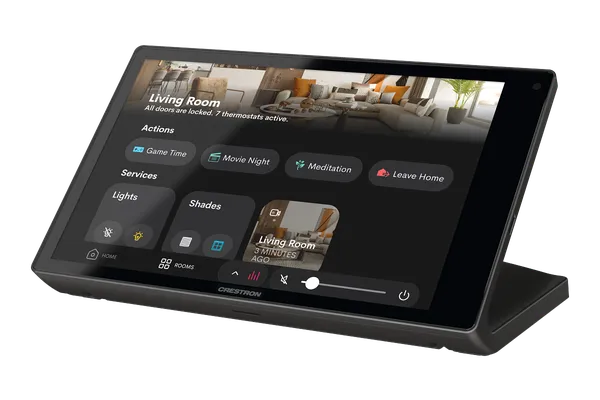

Crestron TS-880R 8.1 in. Tabletop Touch Screen, Crestron Home OS Version

About the Crestron TS-880R

Crestron Home OS runs natively on the 8.1 in. (204 mm) display, which offers 1280 x 800 resolution, 350 to 400 nits brightness, automatic brightness control and 5-point multitouch. The graphics engine includes a dual scalable streaming video window for H.265, H.264 and MJPEG streams with AAC stereo audio, and built-in speakers and a microphone handle Rava SIP intercom calls.

A single Ethernet cable delivers 1000 Mbps networking and PoE or PoE+ power; when LLDP is not in use the panel requests 30 W (PoE+ Class 4) from an 802.3at Type 2 source. Wi-Fi 6E covers 2.4, 5 and 6 GHz, and Bluetooth 5.2 (BLE) is built in. Configuration is web or device based, with enterprise grade security including WPA3.

With 8 GB of RAM and 40 GB of storage, the TS-880R has a USB 2.0 host port and a reset pin hole on the rear. It measures 104 mm high, 201 mm wide and 115 mm deep. The black TS-880R-B and white TS-880R-W are both covered here, so pick the one that matches the existing panel or the room.

Key features

  • Native Crestron Home OS app
  • 8.1 in. 1280 x 800 capacitive display
  • Rava SIP intercom with built-in speakers and microphone
  • Dual scalable streaming video window for H.265, H.264 and MJPEG
  • Single Ethernet cable with PoE or PoE+ power
  • 1000 Mbps Ethernet, Wi-Fi 6E and Bluetooth 5.2
  • Web or device-based configuration
  • Black or white finish

TS-880R specifications

Display8.1 in. (204 mm) TFT active matrix colour LCD, 16:10, 1280 x 800 pixels
Brightness and contrast350 to 400 nits, 1000:1, edgelit LED with auto brightness control
TouchProjected capacitive, 5-point multitouch; 6 virtual buttons
Streaming videoH.265, H.264, MJPEG with AAC stereo; dual scalable streaming video window
Memory8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage, 1000 MB maximum project size
Wired connections1000 Mbps Ethernet; USB 2.0 host
WirelessWi-Fi 6E IEEE 802.11a/b/g/n/ac/ax, 2.4, 5 and 6 GHz, 2x2 MIMO; Bluetooth BLE 5.2, 10 m (33 ft) typical
PowerPoE or PoE+; IEEE 802.3at Type 2 powered device, requests 30 W (PoE+ Class 4) without LLDP
DimensionsHeight 104 mm (4.10 in), width 201 mm (7.93 in), depth 115 mm (4.53 in)

Part numbers on this page

Part numberVersionPriceAdd
TS-880R-B Black On request
TS-880R-W White On request

Where the TS-880R is used

  • Homes running Crestron Home OS
  • Smaller tabletop control points around the home
  • Rava SIP intercom stations
  • Viewing H.265, H.264 or MJPEG video streams

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Country house at dusk with Crestron lighting in Waterfall, Cork
Country house at dusk with Crestron lighting in Waterfall, Cork
Crestron controlled shelf lighting in a Dublin retail boutique
Crestron controlled shelf lighting in a Dublin retail boutique
Open plan living space with smart lighting in Ranelagh, Dublin
Open plan living space with smart lighting in Ranelagh, Dublin

Questions about the Crestron TS-880R

What is the Crestron TS-880R?

It is an 8.1 in. tabletop touch screen designed to run Crestron Home OS, intended for residential use. It has a 1280 x 800 capacitive display, a Rava SIP intercom with speakers and microphone, H.265, H.264 and MJPEG streaming video, Wi-Fi 6E and PoE or PoE+ power.

What is the difference between the TS-880R-B and TS-880R-W?

They are the same Crestron Home OS tabletop touch screen in two colours. The TS-880R-B is black and the TS-880R-W is white, and Crestron describes them identically apart from the colour. Choose the one that matches the existing panel or the room.

How is the TS-880R powered?

It takes PoE or PoE+ power and 1000 Mbps data over one Ethernet cable. As an IEEE 802.3at Type 2 powered device it requests 30 W (PoE+ Class 4) from an 802.3at Type 2 power source when LLDP is not used.

Does it support intercom and video?

Yes. Built-in speakers and a microphone provide a Rava SIP intercom, and the streaming decoder handles H.265, H.264 and MJPEG video with AAC stereo audio. The graphics engine also includes a dual scalable streaming video window.

How does the TS-880R differ from the TS-880?

The TS-880R is designed to run Crestron Home OS and is aimed at residential projects. The TS-880 is intended for residential and enterprise use and supports custom HTML5 projects, native Crestron Home OS and room scheduling apps, and a built-in web browser. Both have an 8.1 in. 1280 x 800 display.

How much is the Crestron TS-880R?

Crestron asks its dealers to give the price of the TS-880R directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TS-880R?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TS-880R on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TS-880R come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TS-880R develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TS-880R in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the TS-880R without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
