Crestron TS-770R Crestron Home OS Tabletop Touch Screen

Crestron part number TS-770R-B

The Crestron TS-770R is a 7 in. tabletop touch screen built to run the Crestron Home OS app. Its 1280 x 800 capacitive display is joined by a Rava SIP intercom, H.265 and H.264 streaming video, Wi-Fi and PoE+ network power.

Limited supply at Crestron

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

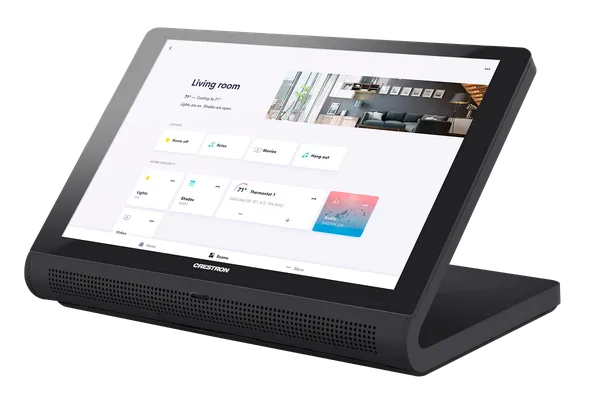

Crestron TS-770R 7 in. Tabletop Touch Screen, Crestron Home OS Version

About the Crestron TS-770R

This is the Crestron Home OS version of the 7 in. tabletop touch screen. The 178 mm display runs at 1280 x 800 with 350 nits brightness, automatic brightness control and 5-point multitouch, and six virtual buttons sit in a collapsible toolbar. A native Sonos app runs alongside Crestron Home OS, and built-in speakers and a microphone provide the Rava SIP intercom.

Data and PoE or PoE+ power share one Ethernet cable at 100 Mbps, and 2.4 or 5 GHz Wi-Fi is also built in, with a range of up to 15 m (50 ft) subject to site conditions. Streaming video in H.265, H.264 or MJPEG is decoded over RTSP at up to 1920 x 1080 at 30 fps and up to 25 Mbps, with 20 Mbps the recommended maximum.

The TS-770R measures 102 mm high, 175 mm wide and 111 mm deep, with a reset pin hole on the bottom and a USB 2.0 port. Inside are 2 GB of RAM and 16 GB of storage, and security features include WEP, WPA and WPA2-PSK wireless encryption. Two colours are listed: the black TS-770R-B and the white TS-770R-W.

Key features

Native Crestron Home OS app
7 in. 1280 x 800 capacitive display
Native Sonos app
Rava SIP intercom with built-in speakers and microphone
H.265, H.264 and MJPEG streaming video
Single Ethernet cable with PoE or PoE+ power
Wi-Fi connectivity and a USB 2.0 port
Enterprise grade security and authentication

TS-770R specifications

Display	7 in. (178 mm) TFT active matrix colour LCD, 16:10, 1280 x 800 pixels
Brightness and contrast	350 nits, 850:1, edgelit LED with auto brightness control
Touch	Projected capacitive, 5-point multitouch; 6 virtual buttons
Streaming video	H.265, H.264, MJPEG over RTSP; up to 1920 x 1080 at 30 fps; up to 25 Mbps (20 Mbps recommended maximum); AAC stereo
Memory	2 GB LPDDR3 RAM, 16 GB eMMC pSLC storage
Wired connections	100 Mbps Ethernet; USB 2.0 host
Wi-Fi	IEEE 802.11a/b/g/n/ac, 2.4 or 5 GHz; WEP, WPA and WPA2-PSK; up to 15 m (50 ft), site dependent
Power	PoE+ (IEEE 802.3at Type 2) powered device; requests 15 W from an 802.3at Type 2 PSE with LLDP
Dimensions	Height 102 mm (4.02 in), width 175 mm (6.87 in), depth 111 mm (4.37 in)

Part numbers on this page

Part number	Version	Price	Add
TS-770R-B	Black Limited supply	On request
TS-770R-W	White Limited supply	On request

Where the TS-770R is used

Homes running Crestron Home OS
Smaller tabletop control points around the home
Rava SIP intercom stations
Like-for-like replacement of a TS-770R-B or TS-770R-W

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron TS-770R

What is the Crestron TS-770R?

It is a 7 in. tabletop touch screen designed specifically to run the Crestron Home OS app. It has a 1280 x 800 capacitive display, a Rava SIP intercom with built-in speakers and microphone, H.265, H.264 and MJPEG streaming video, PoE+ network power and Wi-Fi.

What is the difference between the TS-770R-B and TS-770R-W?

They are the same Crestron Home OS tabletop touch screen in two colours: the TS-770R-B is black and the TS-770R-W is white. If you are replacing a unit, choose the part number that matches the existing panel or the finish of the room.

How is the TS-770R powered and connected?

One Ethernet cable carries 100 Mbps data and PoE or PoE+ power. As an IEEE 802.3at Type 2 powered device it requests 15 W from an 802.3at Type 2 power source with LLDP power management. It also supports 2.4 or 5 GHz Wi-Fi and has a USB 2.0 host port.

What video can the TS-770R show?

The streaming decoder handles H.265, H.264 and MJPEG video, with AAC stereo audio, over the RTSP protocol. It accepts input resolutions up to 1920 x 1080 at 30 fps and bitrates up to 25 Mbps, with 20 Mbps recommended as the maximum.

How does the TS-770R differ from the TS-770?

The TS-770R is the Crestron Home OS version, designed specifically to run the Crestron Home OS app. The TS-770 also runs custom HTML5 and Smart Graphics projects and has native apps for Zoom Rooms and room scheduling, plus voice recognition and Crestron ONE support. Both have a 7 in. 1280 x 800 display.

How much is the Crestron TS-770R?

Crestron asks its dealers to give the price of the TS-770R directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TS-770R?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TS-770R on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TS-770R come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TS-770R develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TS-770R in stock?

Crestron lists the TS-770R as limited supply, so availability can change quickly. We check stock with Crestron before we quote and put the expected delivery date on your quote. If you need several, ask early.

Can I buy the TS-770R without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
