Crestron TS-1080-UC Tabletop Touch Screen, UC Version

Crestron part number TS-1080-UC-B

The Crestron TS-1080-UC is the Unified Communication version of Crestron's 10.1 in. tabletop touch screen, designed to interface with a compatible UC engine system. Crestron lists Crestron Collab Compute as the compatible UC system, and the panel runs from a single PoE or PoE+ Ethernet cable.

€1,402 plus VAT €1,724.46 including VAT at 23%

Crestron's advertised price. Delivery, installation and programming are quoted separately.

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

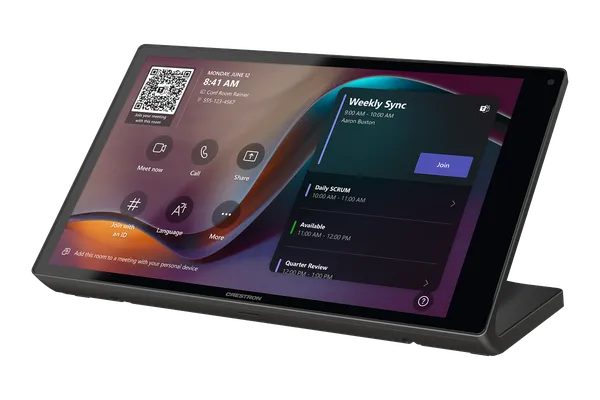

Crestron TS-1080-UC 10.1 in. Tabletop Touch Screen, Unified Communication Version

About the Crestron TS-1080-UC

It is intended for enterprise rooms, with integrated UC system control on a 10.1 in. (257 mm) capacitive display at 1920 x 1200. Brightness runs from 350 to 400 nits with automatic control, and the screen supports 5-point multitouch. Five virtual buttons sit in a collapsible toolbar, and built-in speakers and a Bluetooth communications beacon are included.

The panel connects by 1000 Mbps Ethernet or Wi-Fi 6E (2.4, 5 and 6 GHz, 2x2 MIMO) and supports WPA3 and WPA2 Enterprise security. Configuration can be done in a web browser or on the device itself. It has 8 GB of RAM, 40 GB of storage, Bluetooth 5.2 (BLE) and a USB 2.0 host port for room scheduling accessories.

As an IEEE 802.3at Type 2 powered device, it requests 30 W (PoE+ Class 4) from an 802.3at Type 2 source when LLDP is not used. The panel measures 151 mm high, 246 mm wide and 115 mm deep. It is sold as the TS-1080-UC-B, so check that your room's UC engine is a compatible system before ordering.

Key features

Unified Communication version with integrated UC system control
Compatible with Crestron Collab Compute
10.1 in. 1920 x 1200 capacitive display
Built-in speakers and Bluetooth communications beacon
Single Ethernet cable with PoE or PoE+ power
1000 Mbps Ethernet and Wi-Fi 6E
Web or device-based configuration
Enterprise grade security and authentication

TS-1080-UC specifications

Display	10.1 in. (257 mm) TFT active matrix colour LCD, 16:10, 1920 x 1200 pixels
Brightness and contrast	350 to 400 nits, 1000:1, edgelit LED with auto brightness control
Touch	Projected capacitive, 5-point multitouch; 5 virtual buttons
UC compatibility	Crestron Collab Compute
Memory	8 GB LPDDR4 RAM, 40 GB eMMC pSLC storage
Wired connections	1000 Mbps Ethernet; USB 2.0 host for room scheduling accessories
Wireless	Wi-Fi 6E IEEE 802.11a/b/g/n/ac/ax, 2.4, 5 and 6 GHz, 2x2 MIMO; Bluetooth BLE 5.2
Power	PoE or PoE+; IEEE 802.3at Type 2 powered device, requests 30 W (PoE+ Class 4) without LLDP
Dimensions	Height 151 mm (5.96 in), width 246 mm (9.68 in), depth 115 mm (4.53 in)

Part numbers on this page

Part number	Version	Price	Add
TS-1080-UC-B	Unified Communication version	€1,402 plus VAT €1,724.46 inc VAT

Where the TS-1080-UC is used

Meeting rooms built around Crestron Collab Compute
Enterprise UC rooms that need tabletop control
Conference tables served by one network cable for power and data

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron TS-1080-UC

What is the Crestron TS-1080-UC?

The TS-1080-UC is the Unified Communication version of Crestron's 10.1 in. tabletop touch screen. It is designed for enterprise use and interfaces with a compatible UC engine system, giving integrated UC system control from a 1920 x 1200 capacitive display.

Which UC system does the TS-1080-UC work with?

Crestron lists Crestron Collab Compute as the compatible UC system for this touch screen. The panel is designed to interface with a compatible UC engine system, so confirm that the platform used in your rooms is supported before ordering a unit.

How is the TS-1080-UC powered?

It runs on PoE or PoE+ over a single Ethernet cable. As an IEEE 802.3at Type 2 powered device it requests 30 W (PoE+ Class 4) from an 802.3at Type 2 power source when LLDP is not used. The same cable carries 1000 Mbps data.

How is the panel configured and secured?

Configuration is web or device based, so it can be set up from a browser or on the touch screen itself. It supports enterprise grade security and authentication, including WPA3 and WPA2 Enterprise on Wi-Fi, and it connects by 1000 Mbps Ethernet or Wi-Fi 6E.

What are the dimensions of the TS-1080-UC?

The panel measures 151 mm (5.96 in) high, 246 mm (9.68 in) wide and 115 mm (4.53 in) deep. The 10.1 in. (257 mm) display is a TFT active matrix LCD with 350 to 400 nits brightness and 5-point projected capacitive touch.

How much is the Crestron TS-1080-UC?

Crestron's advertised price for the TS-1080-UC in Ireland is €1,402 plus VAT, which is €1,724.46 including VAT at 23%. It does not include delivery, installation or programming, which we quote separately. Tap Request a quote for a written quote.

Can 1Install supply, install and programme the TS-1080-UC?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TS-1080-UC on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TS-1080-UC come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TS-1080-UC develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TS-1080-UC in stock?

We order Crestron for each quote, so availability depends on Crestron's stock at the time. We check it before we quote and put the expected delivery date on your quote, so you know where you stand before you pay.

Can I buy the TS-1080-UC without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.
