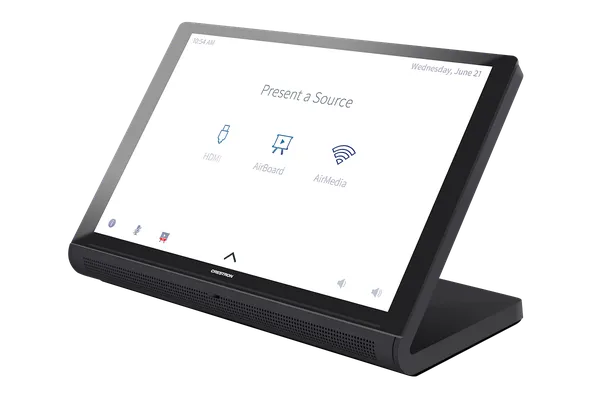

Crestron TS-1070 10.1 in. Tabletop Touch Screen

Crestron part number TS-1070-GV-W-S

The Crestron TS-1070 is a 10.1 in. tabletop touch screen with a 1920 x 1200 capacitive display, suited to both homes and businesses. It runs custom HTML5 or Smart Graphics control projects and includes native apps for Crestron Home OS, Sonos, Zoom Rooms, Microsoft Teams and room scheduling.

Limited supply at Crestron

Price on request

The price isn't hidden. Crestron asks its dealers to share it with you directly rather than publish it online, so tap Request a quote and we'll send it straight to you.

Choose a version

Qty

Prefer to talk? Dublin 01 906 9326 Cork 021 202 8107 WhatsApp us

Installation and programming

Need it installed? Our Crestron certified engineers install, set up and programme everything we supply. A 4 hour visit is €440 and a full day €880, plus VAT.

Book an installation

Crestron TS-1070 10.1 in. Tabletop Touch Screen

About the Crestron TS-1070

The 10.1 in. (257 mm) TFT screen runs at 1920 x 1200 with 400 nits brightness, automatic brightness control and 5-point multitouch. Six virtual buttons sit in a collapsible toolbar and can be shown or hidden one at a time. Built-in speakers and a microphone support the Rava SIP intercom and voice recognition, and the panel can display H.265, H.264 or MJPEG streaming video.

Voice commands can switch devices on or off, pick a media source, change the channel, recall a lighting scene or lower the shades. The panel connects over 100 Mbps Ethernet with PoE+ power, or over 2.4 or 5 GHz Wi-Fi (802.11a/b/g/n/ac). Custom projects can be up to 600 MB, and a built-in Bluetooth beacon is included.

For room scheduling, the Crestron Scheduling App supports Crestron Fusion, Microsoft Exchange Server and Office 365, Google Calendar and G Suite, and CollegeNET 25Live, with a USB 2.0 host port for scheduling accessories. The panel measures 134 mm high, 245 mm wide and 119 mm deep. It comes in black smooth or white smooth, each also offered as a Government Version.

Key features

10.1 in. 1920 x 1200 capacitive touch display
Custom HTML5 and Smart Graphics projects up to 600 MB
Native apps for Crestron Home OS, Sonos, Zoom Rooms and Microsoft Teams
Room scheduling with the Crestron Scheduling App and third-party apps
Rava SIP intercom with built-in speakers and microphone
Voice recognition for spoken commands
H.265, H.264 and MJPEG streaming video
PoE+ network power, Wi-Fi and a Bluetooth beacon

TS-1070 specifications

Display	10.1 in. (257 mm) TFT active matrix colour LCD, 16:10, 1920 x 1200 pixels
Brightness and contrast	400 nits, 1000:1, edgelit LED with auto brightness control
Touch	Projected capacitive, 5-point multitouch; 6 virtual buttons in a collapsible toolbar
Memory	2 GB LPDDR3 RAM, 16 GB eMMC pSLC storage, 600 MB maximum project size
Wired network	100 Mbps Ethernet
Wireless	IEEE 802.11a/b/g/n/ac Wi-Fi, 2.4 or 5 GHz; Bluetooth beacon
USB	USB 2.0 host for room scheduling accessories
Power	PoE+ (IEEE 802.3at Type 2) powered device; normally requests 15 W from an 802.3at Type 2 PSE with LLDP
Dimensions	Height 134 mm (5.29 in), width 245 mm (9.63 in), depth 119 mm (4.67 in)

Part numbers on this page

Part number	Version	Price
TS-1070-GV-W-S	Government version, white smooth Limited supply	On request
TS-1070-W-S	White smooth	On request
TS-1070-B-S	Black smooth Discontinued	No longer made
TS-1070-GV-B-S	Government version, black smooth Discontinued	No longer made

Where the TS-1070 is used

Meeting room tables running Zoom Rooms or Microsoft Teams
Homes controlled with Crestron Home OS
Rooms that use the Rava SIP intercom
Spaces booked through Exchange, Office 365 or Google Calendar

Crestron installed by 1Install

We supply, install and programme Crestron in homes and businesses across Ireland. These photos are from our own installations. See more in our projects, or budget a whole system with our Quote Builders for homes and meeting rooms.

Questions about the Crestron TS-1070

What is the Crestron TS-1070?

It is a 10.1 in. tabletop touch screen for residential and enterprise use. It has a 1920 x 1200 capacitive display, runs custom HTML5 or Smart Graphics projects, and includes native apps for Crestron Home OS, Sonos, Zoom Rooms, Microsoft Teams and room scheduling services.

What is the difference between the TS-1070 part numbers?

The TS-1070-B-S is black smooth and the TS-1070-W-S is white smooth. The TS-1070-GV-B-S and TS-1070-GV-W-S are the Government Version in the same two finishes. When replacing a panel, match the part number of the existing unit so the finish and version are the same.

How is the TS-1070 powered and connected?

It is a PoE+ powered device to IEEE 802.3at Type 2 and normally requests 15 W from an 802.3at Type 2 power source using LLDP power management. It connects over 100 Mbps Ethernet and also supports 2.4 or 5 GHz Wi-Fi.

Can the TS-1070 be used for room scheduling?

Yes. It has built-in room scheduling, and the Crestron Scheduling App supports Crestron Fusion, Microsoft Exchange Server and Office 365, Google Calendar and G Suite, and CollegeNET 25Live. Various third-party scheduling apps are also supported, and a USB 2.0 host port accepts room scheduling accessories.

Does the TS-1070 have voice control and an intercom?

Yes. It has built-in voice recognition, so spoken commands can turn devices on or off, select a media source, choose a lighting scene or lower the shades. Built-in speakers and a microphone also provide a Rava SIP intercom, and the screen can show H.265, H.264 or MJPEG streaming video.

How much is the Crestron TS-1070?

Crestron asks its dealers to give the price of the TS-1070 directly rather than publish it online. Add it to your quote list and we will send you a written quote, with delivery, and installation and programming if you need them.

Can 1Install supply, install and programme the TS-1070?

Yes. 1Install is an authorised Crestron Elite Partner with offices in Skerries, Co. Dublin and Cork. We can supply the TS-1070 on its own, or install, set up and programme it as part of your system. Installation visits are €440 for 4 hours or €880 for a full day, plus VAT and travel.

Does the TS-1070 come with a warranty?

Yes. Everything we supply is new, genuine Crestron with Crestron's standard warranty. If the TS-1070 develops a fault, contact us and we will handle the claim with Crestron. If we installed it, our workmanship is guaranteed for the lifetime of the system.

Is the TS-1070 in stock?

Crestron lists the TS-1070 as limited supply, so availability can change quickly. We check stock with Crestron before we quote and put the expected delivery date on your quote. If you need several, ask early.

Can I buy the TS-1070 without installation?

Yes. We supply Crestron to end users, with or without installation. Like most Crestron devices of this type, it needs setting up or programming before it works in a system, and we can quote for that too.

Crestron TS-1070 10.1 in. Tabletop Touch Screen, Black or White
